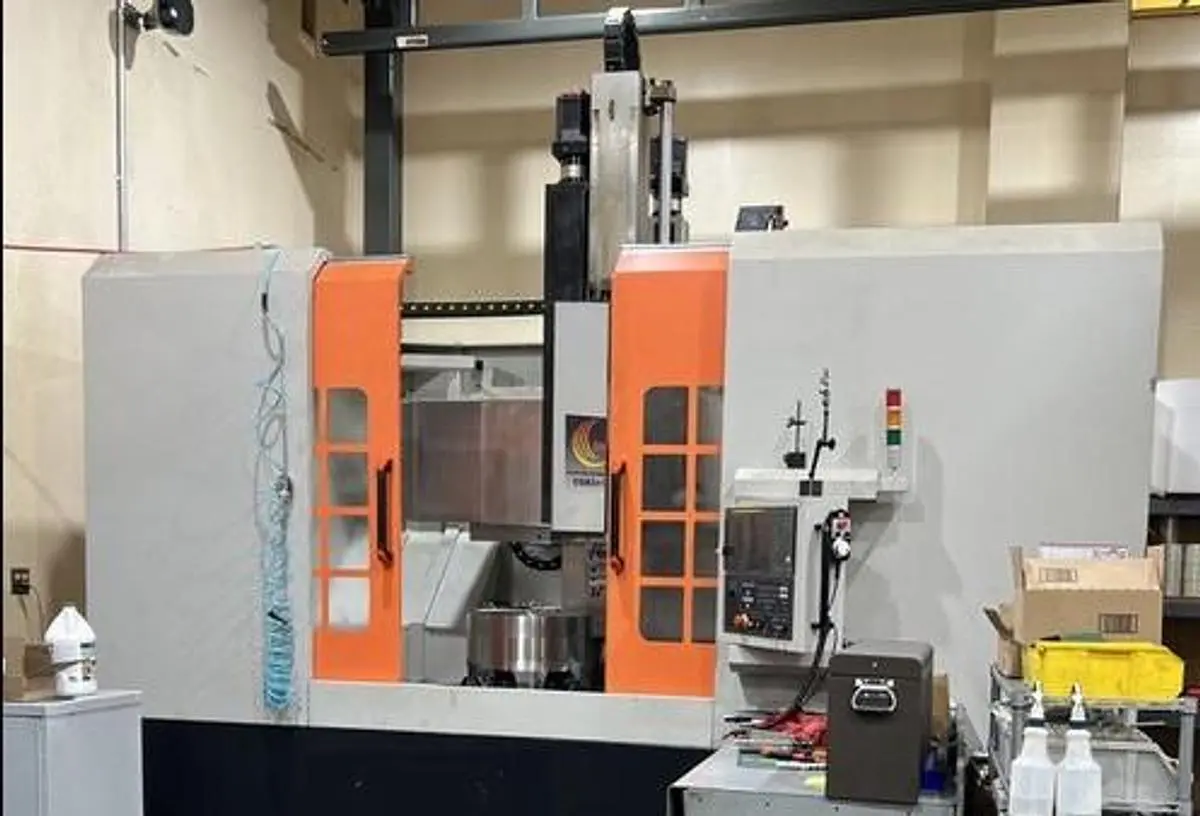

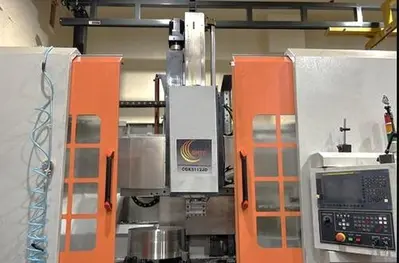

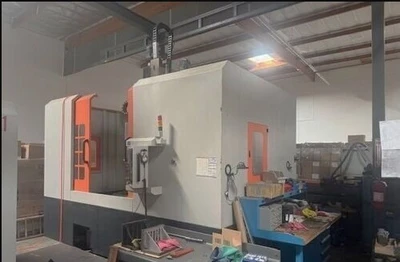

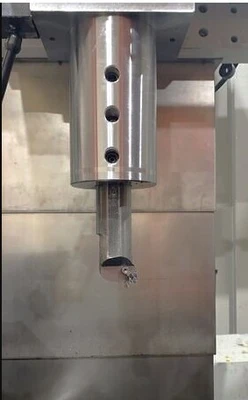

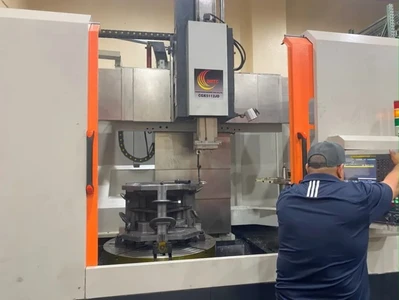

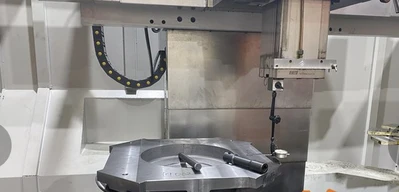

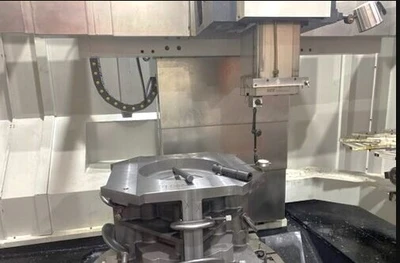

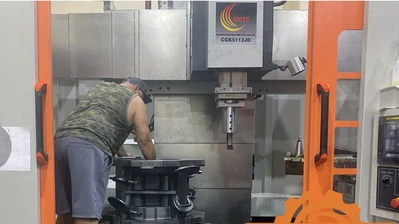

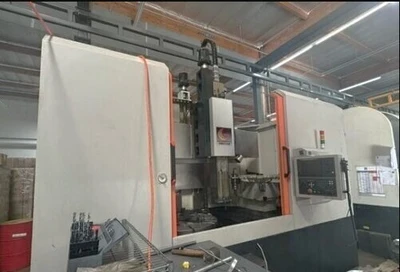

USED 2020 DMTC CGK5112JD
Overview
Description

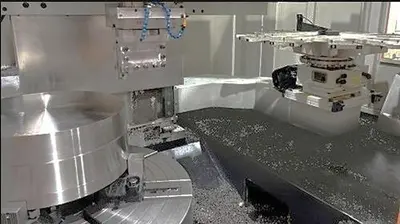

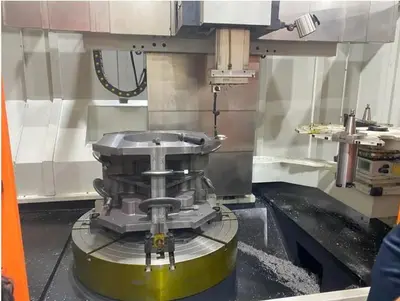

40" 4 Jaw Manual Chuck
8 Station Tool Changer
2 Speed Geared - Stepless ZF
Elevating Rail
Remote Jog Handle
Coolant System with Tank & Pump
Work Status Condition Lights
Work Light
Color Monitor
USB Port Interface
RS 232 Port Interface
All Available Manuals
Wired 380V Electrics
(2) Tool Holders
**ONLY 102 Run Time Hours**
Specifications

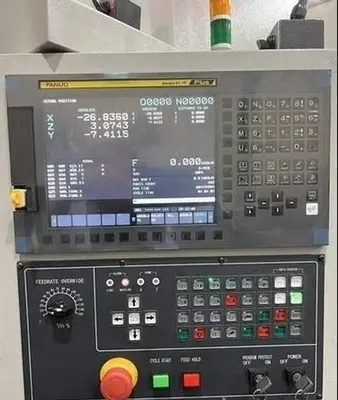

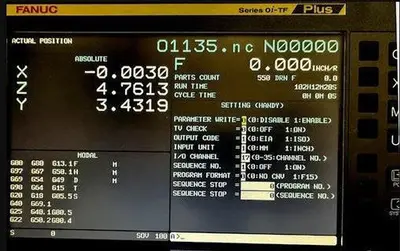

Control: Fanuc 0i-TF Plus Control
Table Diameter: 39.37"
Maximum Swing: 47.28"
Maximum Table Load: 11,023 lbs.
Maximum Turning Diameter: 47.28"
Maximum Turning Height: 39.4"
X-Axis Travel: -1.97" - 25.61"
Z-Axis Travel: 31.49"
Cross Rail Travel: 31.5"
Table Speed: 1 - 400 RPM
Table Motor: 30 HP
Number of Tool Positions: 8 Station Tool Changer
Cutting Feedrates: 78.74 IPM
Rapid Traverse Rates: 197 IPM
Machine Dimensions LxWxH: 122.14" x 106.38" x 110.32"
Machine Weight: 24,200 lbs.
