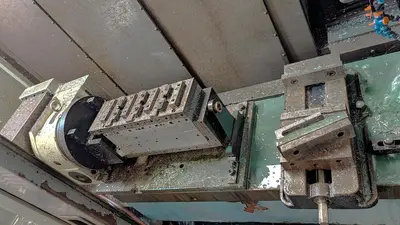

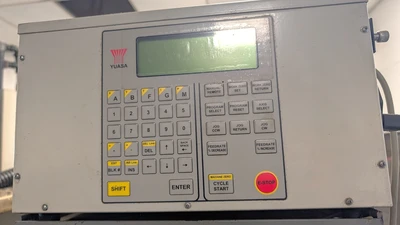

Yuasa 4th Axis Indexer with Control Box
Auto Tool Length Measurement - Tool Probe

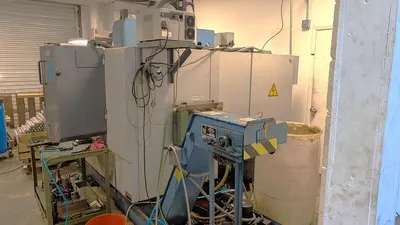

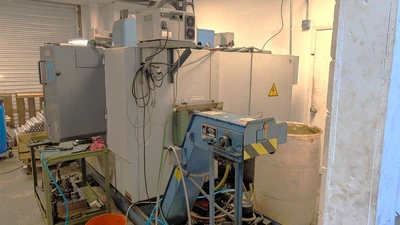

Chip Conveyor
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection
Multi-Tap Transformer
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

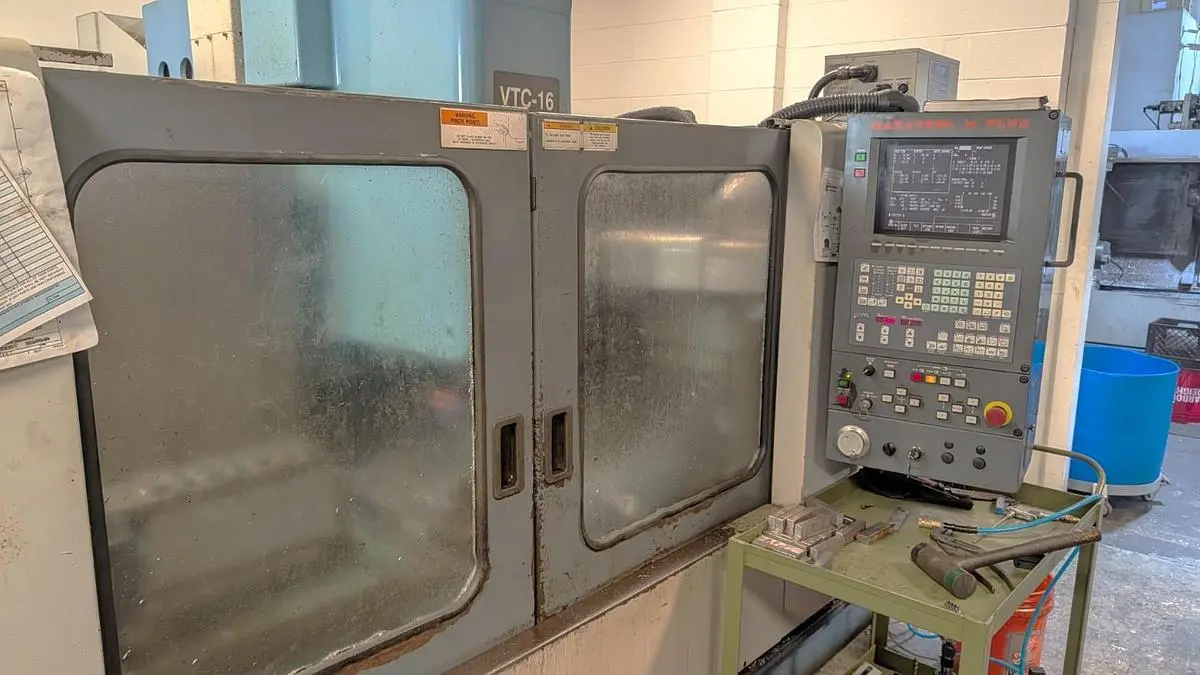

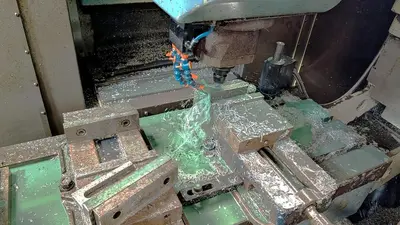

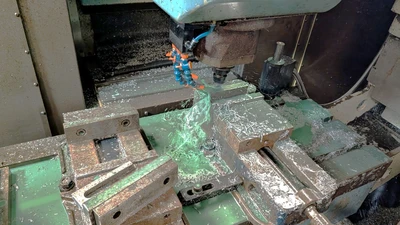

The 1998 Mazak VTC16B is a dependable CNC vertical machining center, featuring the Mazatrol M-Plus Control system. Designed for precision and efficiency, it supports both 3-axis and 4-axis machining with the included Yuasa Indexer. It has a substantial table size of 57.48" x 16.1", capable of handling a maximum load of 1,600 lbs.
This machining center offers a spindle taper of CAT 40, with variable spindle speeds ranging from 40 to 7,000 rpm, and is powered by a robust 15 HP spindle motor. It offers rapid traverse rates of 670 ipm on the X-axis, 787 ipm on the Y-axis, and 590 ipm on the Z-axis. The tool magazine can accommodate up to 24 tools, making it suitable for diverse and complex machining tasks.
The machine is equipped with an auto tool length measurement probe and a chip conveyor, ensuring efficient operation and maintenance. With a structure measuring 119" x 97.63" x 106" and a weight of 11,660 lbs, it is a solid and reliable choice for industrial operations looking for consistent performance in part production.

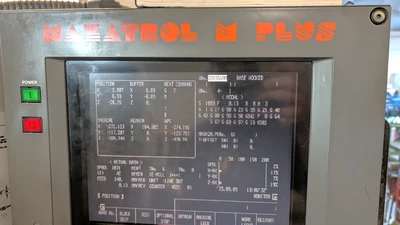

Machine Control: Mazatrol M-Plus Control
Table size: 57.48" x 16.1"
Maximum Table Load: 1,600 lbs
X-Axis Travel: 44.09"
Y-Axis Travel: 16.08"
Z-Axis Travel: 20.08"
Spindle Taper: CAT 40
Spindle Speeds: 40 - 7,000 rpm
Spindle Motor: 15 HP
Rapid Traverse Rates (X, Y, Z): 670/787/590 ipm
Distance Spindle Nose to Table Top: 4.3" - 24.4"
Tool Magazine Capacity: 24 Station Tool Changer
Machine Dimensions LxWxH: 119"x97.63"x106"
Machine Weight: 11,660 lbs
