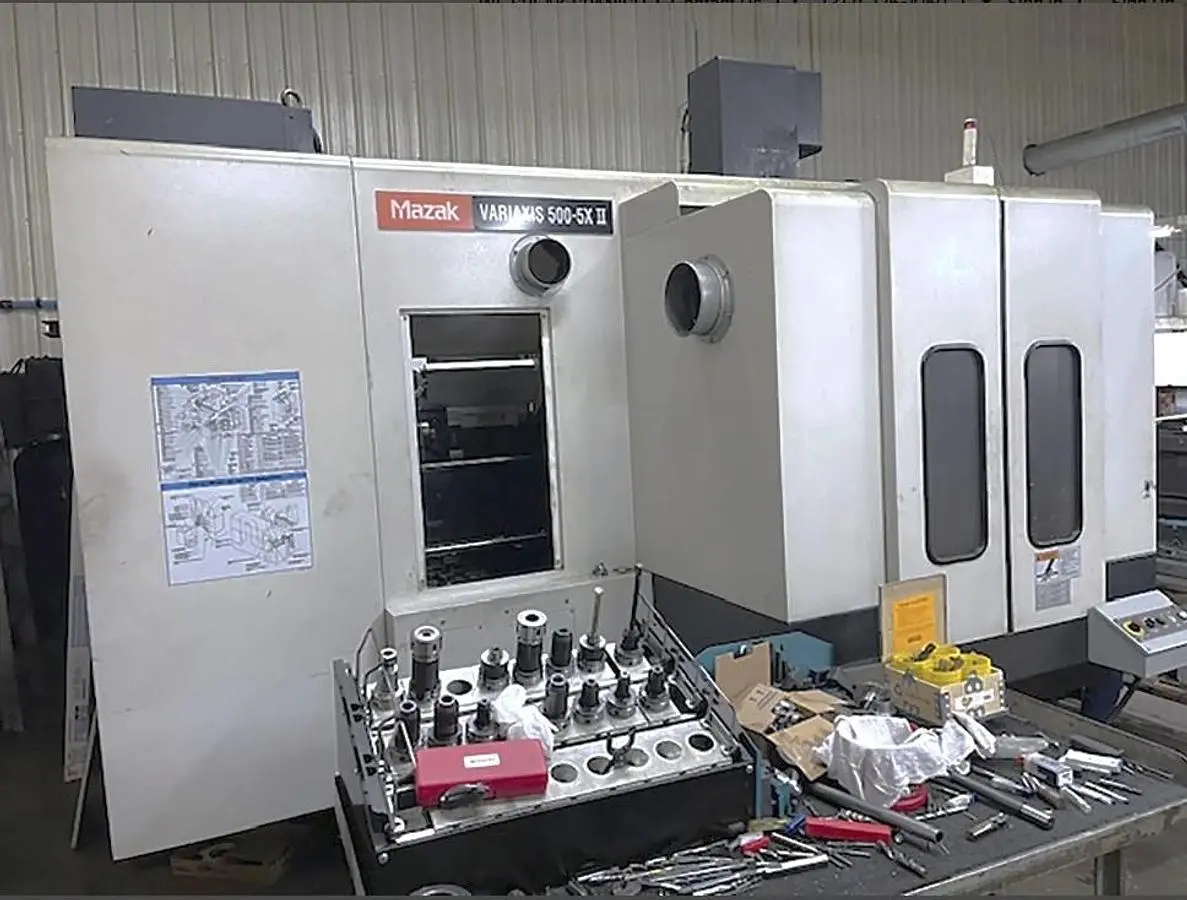

USED 2008 MAZAK VARIAXIS 500-5X II

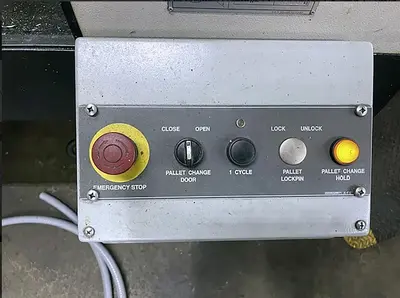

2 Pallet Changer System
Simultaneous 5 Axis Machining

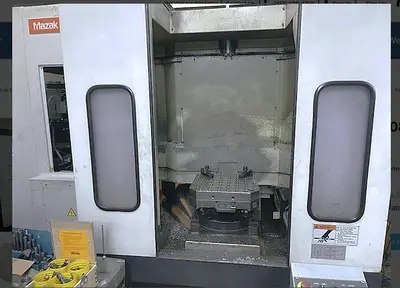

Fully Rotating 4th Axis Table
Tilting 5th Axis Table
25,000 RPM Spindle with HSK-63A Taper
Coolant Through the Spindle

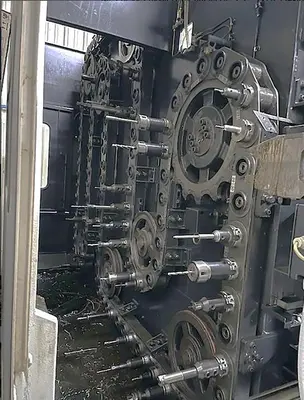

120 Station Tool Changer
Chip Conveyor
Auto Tool Length Measurement
Rigid Tapping

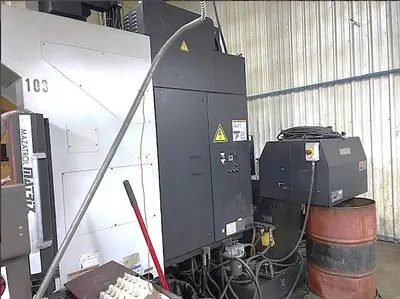

Chiller Unit
Coolant System with Tank & Pump
USB Port Interface
LAN Port Interface

The 2008 Mazak Variaxis 500-5X II is a reliable 5-axis CNC vertical machining center, designed for high precision and versatility in complex applications. It features a trunnion style design and includes a 2-pallet changer, with each pallet measuring 19" x 15", allowing for seamless transitions and increased efficiency in workload management. This model is equipped with the Mazatrol Matrix Control, providing intuitive operation and comprehensive machining capabilities.

With an HSK-63A spindle taper and a maximum speed of 25,000 RPM, it offers superior performance for intricate milling tasks. The machine supports a generous work envelope with X, Y, and Z-axis travels of 20", 20", and 18" respectively. The A-axis table tilts from -120 degrees to +30 degrees, while the C-axis enables full 360,000 degrees of rotation. This flexibility accommodates a maximum workpiece size of 19"x15"x15" and a load capacity of 661 lbs.

The Variaxis 500-5X II features a 30 HP spindle motor and a substantial tool magazine capacity of 120 stations, accompanied by rapid traverse rates of 1,969 ipm, ensuring high productivity. Despite its robust performance, the machine maintains a compact footprint with dimensions of 110"x115"x109" and weighs 26,554 lbs, making it a solid choice for manufacturers seeking precision and efficiency in a versatile format.

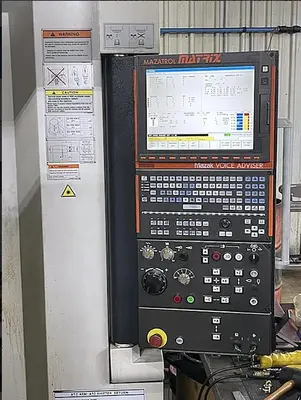

Machine Control: Mazatrol Matrix Control
Pallet Size / Number of Pallets: 19" x 15" / 2 Pallet Changer
Maximum Table Load: 661 lbs
Maximum Workpiece Size: 19"x15"x15"
X-axis travel: 20"
Y-Axis Travel: 20"
Z-Axis Travel: 18"
A-Axis Travel: -120 Deg. to + 30 Deg. Table Tilt
C-Axis Rotation: 360,000 Degrees
Distance Spindle Nose to Table Top: 7.48" to 25.59"
Spindle Taper: HSK-63A
Spindle Speed: 25,000 rpm
Spindle Motor: 30 HP
Tool Magazine Capacity: 120 Station ATC
Rapid Traverse Rates: 1,969 ipm
Machine Dimensions LxWxH: 110"x115"x109"
Machine Weight: 26,554 lbs
