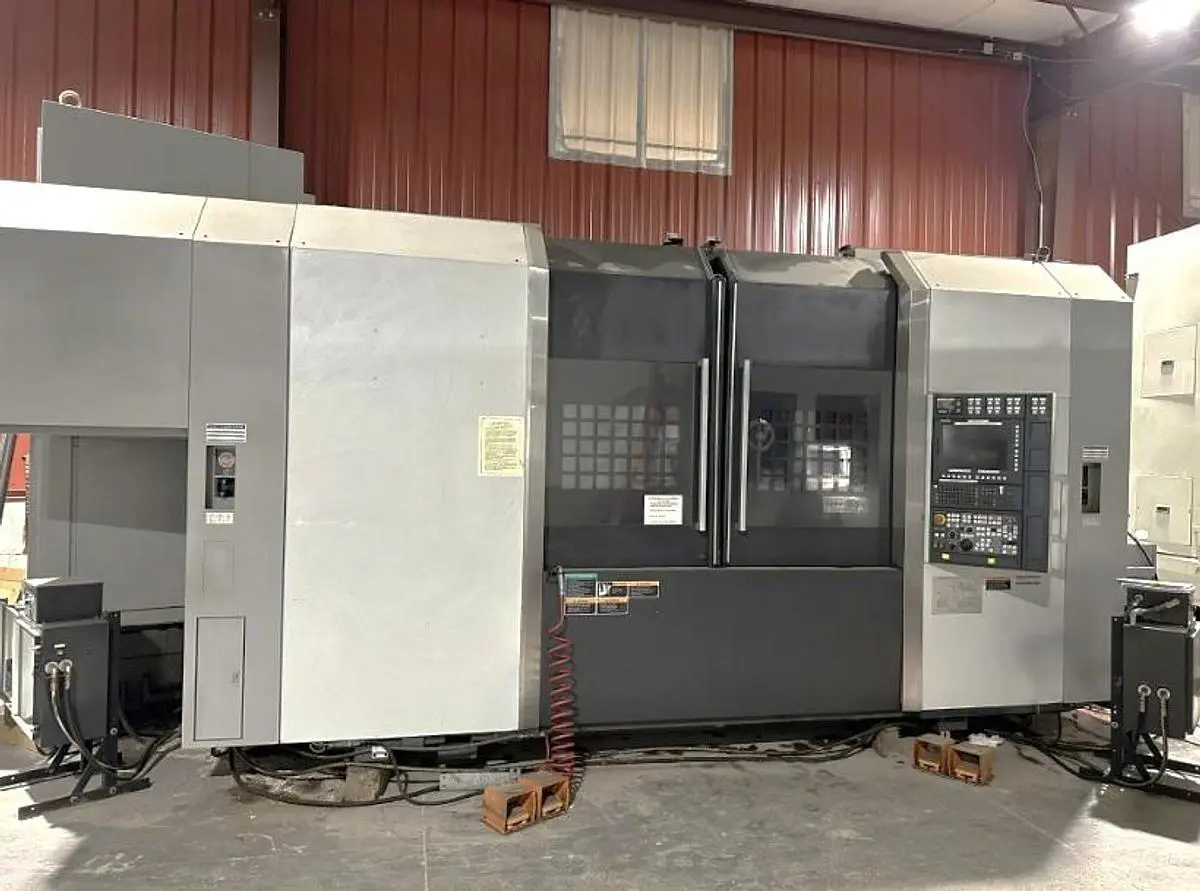

USED 2007 MORI SEIKI NT-4300/1500S
Overview
Full C Axis Spindle Rotation - Both Spindles
Live Milling/Drilling Capability
Subspindle
Y Axis Capability
B Axis Pendulum Style Head

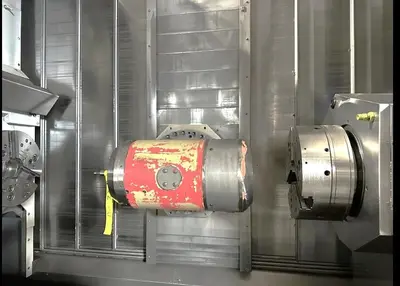

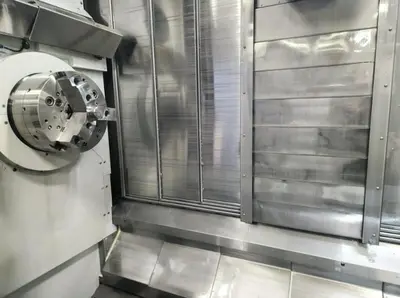

(2) 12" 3 Jaw Hydraulic Chucks - Both Spindles
Chip Conveyor
240 Position Tool Changer

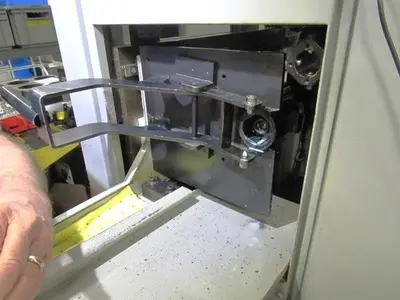

Tool Presetter
Renishaw Probing - Both Spindles

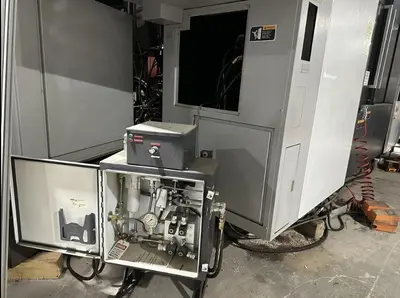

High Pressure Coolant Systemn
Rigid Tapping
Spindle Orientation
Complete Coolant System w/ Tank & Pumps
Card Interface
RS 232 Port Interface
USB Port Interface
Specs

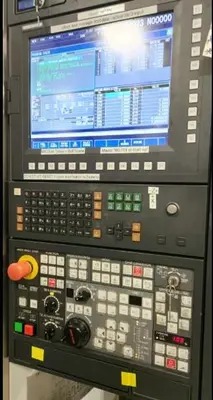

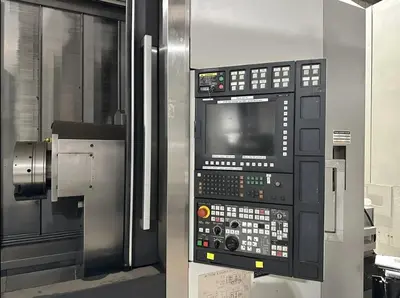

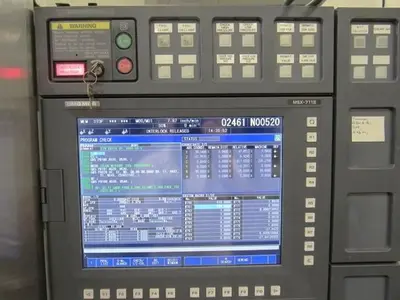

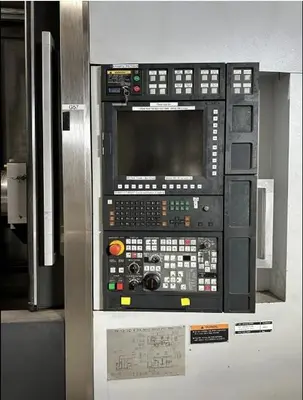

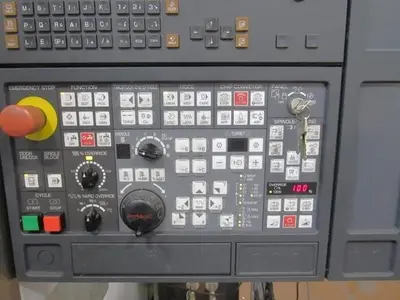

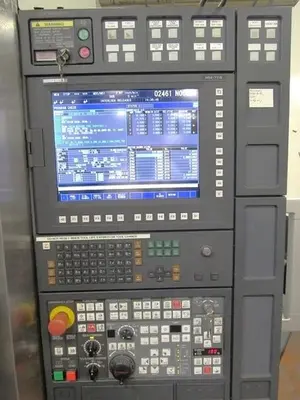

Control: Mori Seiki MSX-711 IV CNC Control
Chuck Sizes Main / Subspindle: 12" 3 Jaw Hyd. / 12" 3 Jaw Hyd.
Maximum Swing: 28.74"
Maximum Turning Diameter: 28.7"
Maximum Turning Length: 58.9"
Maximum Distance Between Centers: 73.3"
Maximum Bar Capacity: 3.54"
X-Axis Travel: 29.53"
Y-Axis Travel: +/- 8.27"
Z-Axis Travel: 61.02"
B-Axis Tilt Movement: +/- 120 Degrees in .0001 Degree Movement
C-Axis Rotation: .001 Degree - Both
Spindle Nose / Spindle Bore: A2-8" / 4.13" - Both
Spindle Speed: 2,500 RPM - Both
Spindle Motor: 40 HP - Both

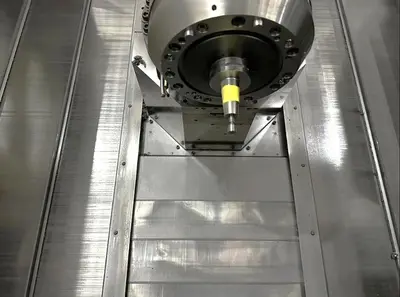

Milling Spindle Taper: Capto C6
Milling Spindle Speed / Milling Spindle Motor: 12,000 RPM / 24.7 HP
Number of Tool Positions: 240 Station ATC
Maximum Tool Diameter / Length / Weight: 5.5" / 15.7" / 22 lbs.
Rapid Traverse Rates (X, Y, Z): 1968 IPM / 1181 IPM / 1968 IPM
Machine Dimensions: 180" x 114" x 99"
Machine Weight: 62,250 lbs.
