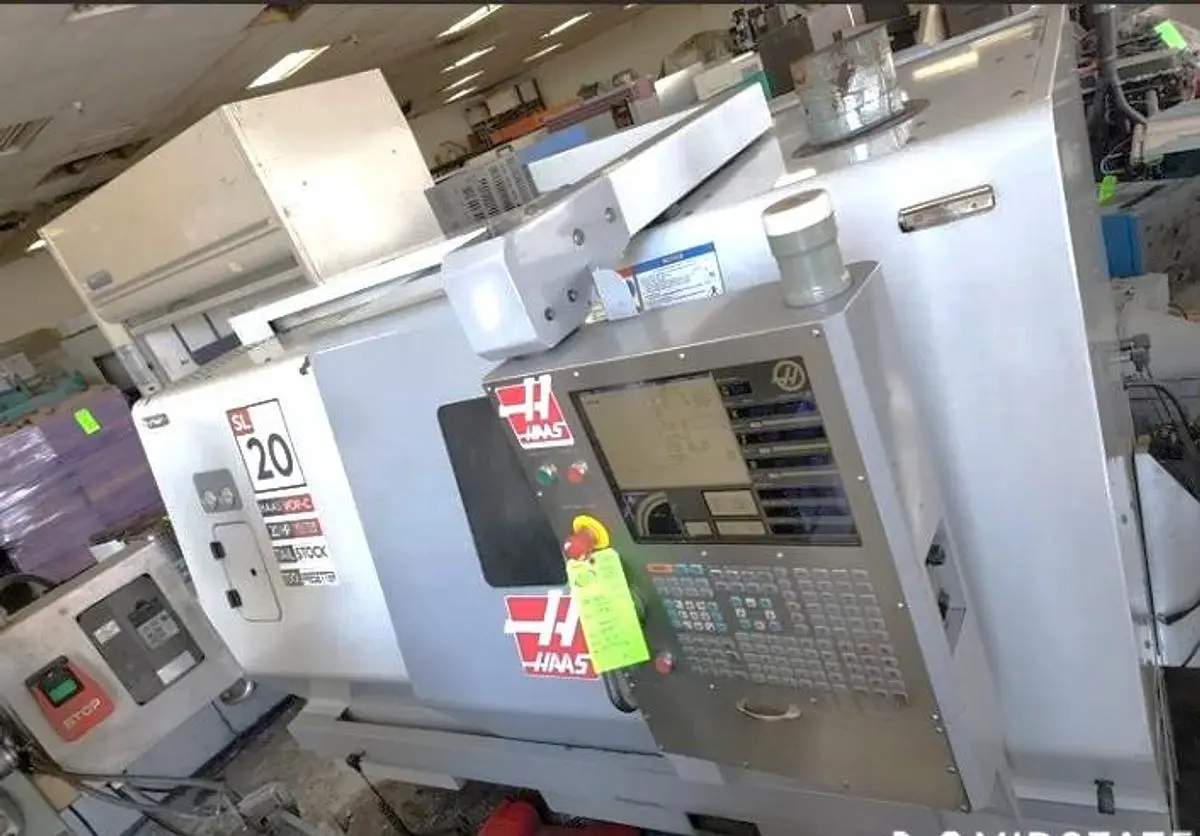

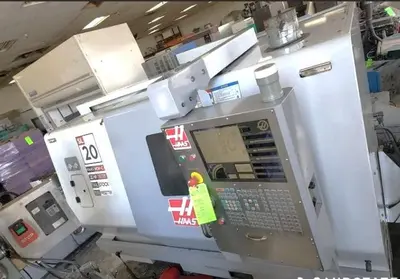

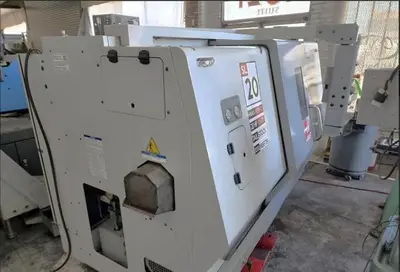

USED 2007 HAAS SL-20T

Tool Presetter
Programmable Hydraulic Tailstock
8" 3 Jaw Hydraulic Chuck

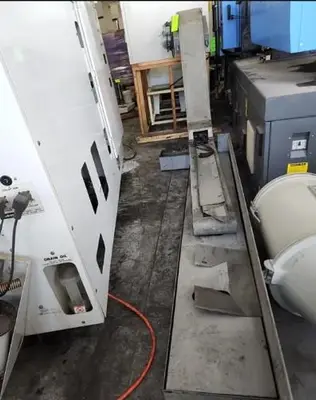

Chip Conveyor

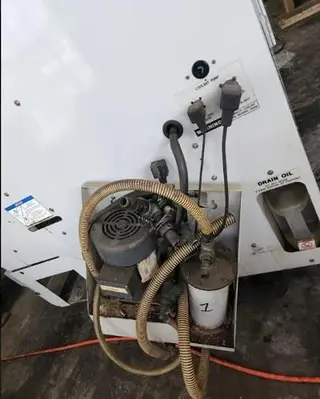

High Pressure Coolant Pump
Spindle Orientation
User Definable Macro
Visual Quick Code Programming
Rigid Tapping
1 MB Programming Memory
3.5" Floppy Disk Interface
RS232 Port Interface
10 Station Bolt On Style Turret
All Available Tooling

**Servo On Time 15,807 Hours**
**Spindle Hours 12,657**

**New Spindle at cost of $8000**

The 2007 Haas SL-20T is a reliable CNC lathe equipped with several notable features. It includes a tailstock, tool presetter, and high-pressure pump, enhancing its versatility for various machining operations. The machine also features an 8" 3-jaw hydraulic chuck and a maximum swing of 20", suitable for handling a wide range of workpieces. The SL-20T offers a spindle speed range of 0 to 4,000 RPM, powered by a 20 HP motor, delivering a spindle torque of 120 ft/lbs, which ensures efficient performance in demanding tasks.

This model comes with a 10-station bolt turret, capable of rapid traverse rates of 710 inches per minute, which is beneficial for high-production environments. The X-axis travel is 8.45", and Z-axis travel extends to 20", providing substantial flexibility for various machining setups. Additionally, it has a spindle nose/bar capacity of A2-6"/2.4"/2", and the machine control is managed by a reliable Haas CNC Control system.

The SL-20T is further enhanced by a chip conveyor and measures 126.5" in length, 62" in width, and 72" in height, with an overall machine weight of 9,000 lbs. The tailstock has a taper of MT #4 with a travel of 20", providing additional support for longer workpieces. All these features combined make the 2007 Haas SL-20T an excellent choice for those seeking a robust and efficient CNC solution.

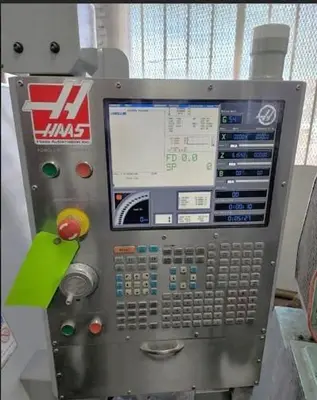

Machine Control: Haas CNC Control
Chuck Size: 8" 3-Jaw Hydraulic
Maximum Swing: 20"
Maximum Swing Over Cross Slide: 10"
Distance Between Centers: 24"
X-Axis Travel: 8.45"
Z-Axis Travel: 20"
Spindle Nose / Bore / Bar Capacity: A2-6" / 2.4" / 2"
Spindle Speeds: 0 - 4,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 120 ft/lbs
Number of Turret Positions: 10 Station Bolt Turret
Rapid Traverse Rates: 710 IPM
Tailstock Taper / Travel: MT #4 / 20"
Machine Dimensions LxWxH: 126.5"x62"x72"
Machine Weight: 9,000 lbs
