High Pressure Coolant Thru the Spindle - 1000 PSI
30 Station Side Mounted Tool Changer
Haas Wireless Probing Package
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Auxiliary Coolant Filter System
Spindle Orientation

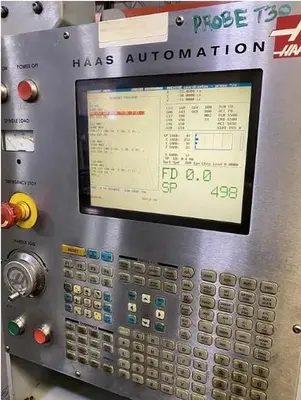

Visual Quick Code Programming System
Coordinate Rotation & Scaling
Haas Intuitive Programming System
Rigid Tapping
Remote Jog Handle
Power Failure Detection Module
Memory Lock Key Switch
2 Speed Gear Box
Coolant System with Tank & Pump
RS 232 Port Interface

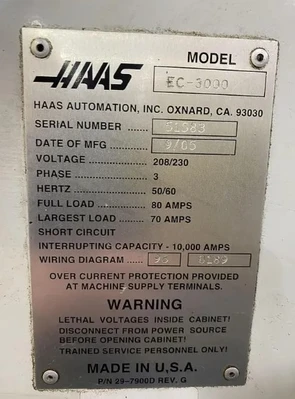

Wired 208/230V Electrics

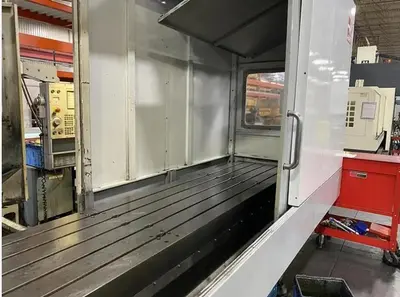

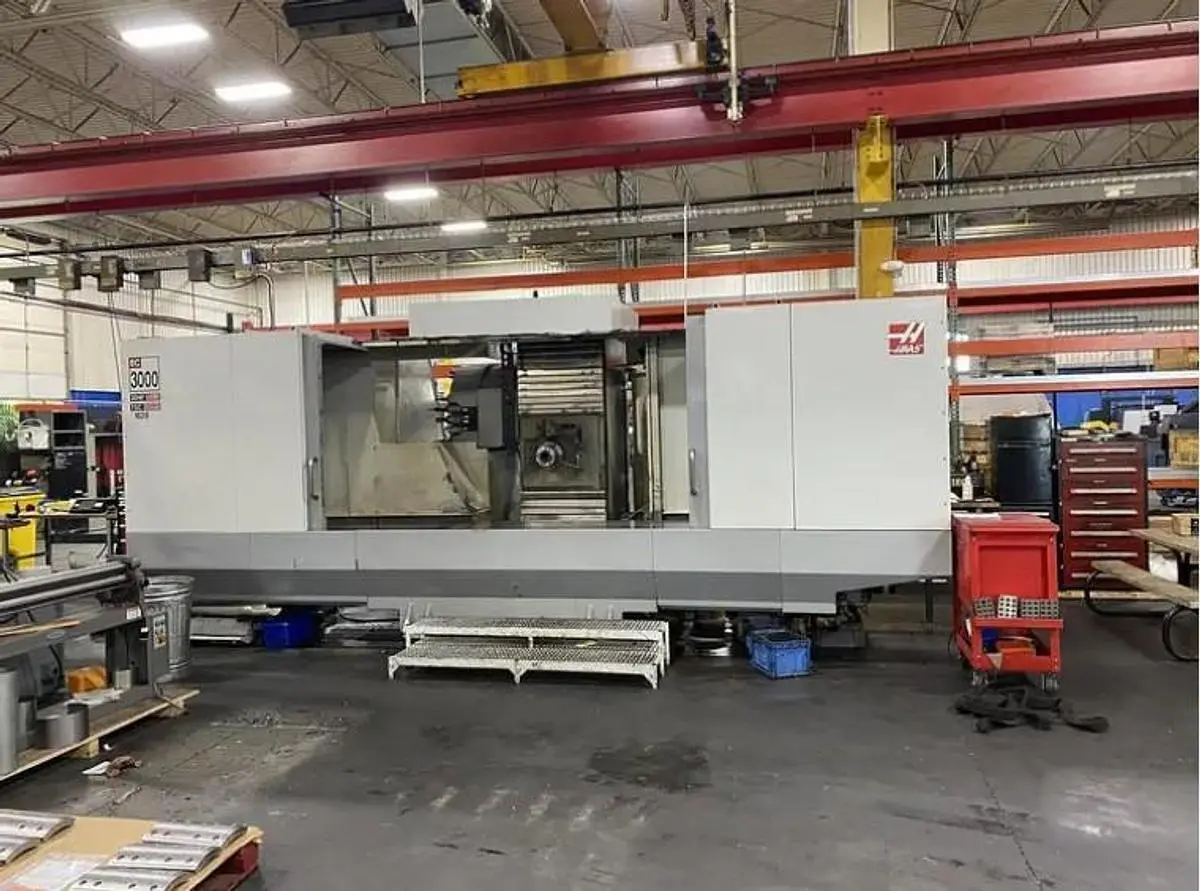

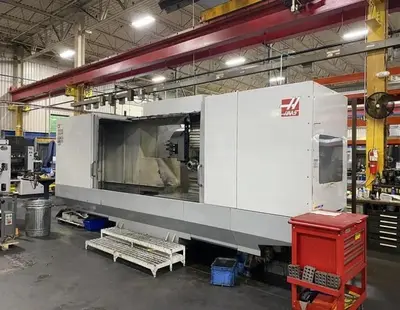

The 2005 Haas EC-3000 3 Axis Horizontal Machining Center is a robust and versatile machine designed for various industrial applications. With a large table size of 120" x 36" and a maximum load capacity of 10,000 lbs, it allows for handling sizeable workpieces efficiently. It offers extensive travel capabilities of 120" on the X-axis, 40" on the Y-axis, and 32" on the Z-axis, enabling the machining of complex components with ease.

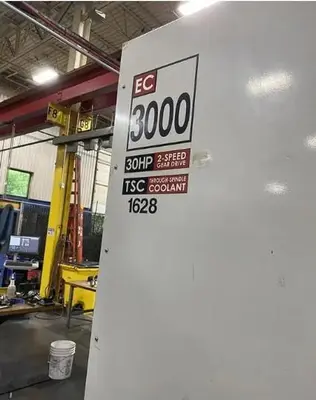

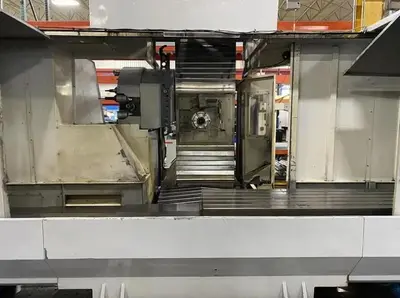

This model features a CAT 50 spindle taper and operates at a spindle speed of 6,000 RPM, powered by a 30 HP 2-speed geared head. The geared head design ensures effective power delivery for demanding tasks. The included coolant thru spindle system enhances machining precision and prolongs tool lifespan by effectively managing heat and debris. Additionally, the 30-position automatic tool changer ensures quick and seamless transitions between tools, optimizing production time.
The Haas EC-3000 also boasts rapid traverse rates of 540 IPM, facilitating expeditious movement across projects. Engineered to accommodate maximum tool dimensions of 10" in diameter, 20" in length, and 30 lbs in weight, this machining center is ideal for various manufacturing needs. With overall dimensions of 266"x143"x119" and a hefty weight of 40,000 lbs, it signifies a significant yet stable addition to any production facility.

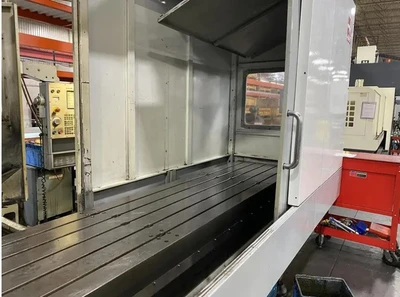

Table Size: 120" x 36"
Maximum Table Load: 10,000 lbs
X-axis travel: 120"
Y-Axis Travel: 40"
Z-Axis Travel: 32"
Spindle Taper: CAT 50
Spindle Speed: 6,000 RPM
Spindle Motor: 30 HP 2-Speed Geared Head
Tool Magazine Capacity: 30 Station Tool Changer
Rapid Traverse Rates: 540 IPM
Maximum Tool Diameter / Length / Weight: 10" / 20" / 30 lbs
Machine Dimensions LxWxH: 266"x143"x119"
Machine Weight: 40,000 lbs
