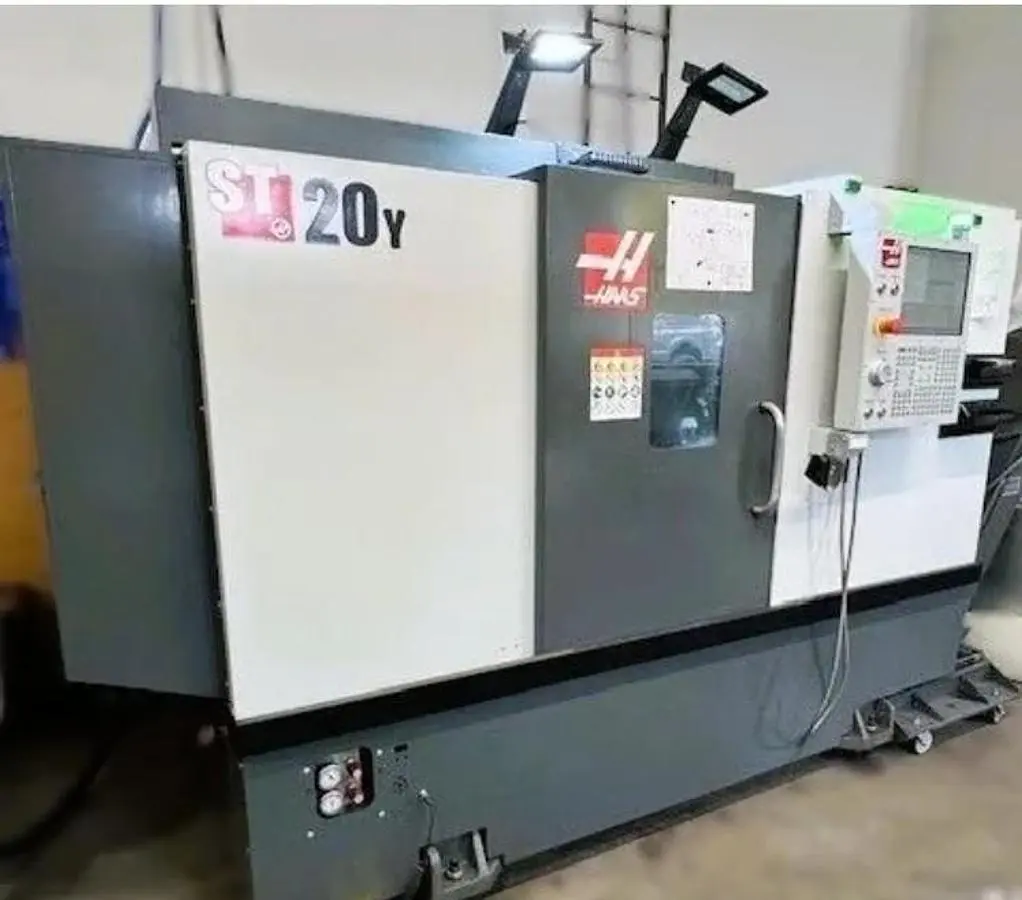

USED 2023 HAAS ST-20Y

High Torque C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

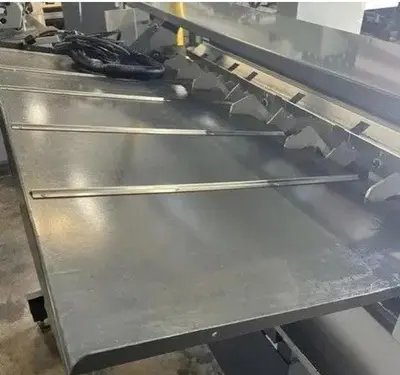

Haas Barfeed System
8.3" 3 Jaw Hydraulic Chuck

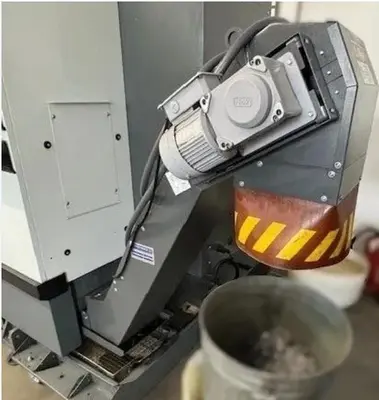

Chip Conveyor
Tool Presetter
Haas Visual Part Programming System
User Definable Macros
High Intensity Lighting
Spindle Orientation
Rigid Tapping
Oil Skimmer
Media Display M Code M130
Haas Connect
1 GB Program Storage
15" LCD Color Monitor
Early Power Failure Detection Module

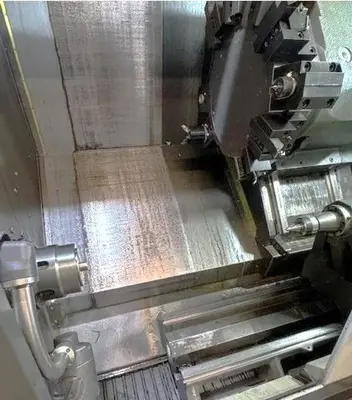

12 Sided BMT65 Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
All Available Tooling

**Price New Today as Equipped at $130,275**

The 2023 Haas ST-20Y is a versatile CNC lathe with advanced features, including milling, Y-axis, and low operating hours. It is equipped with a Haas NextGen Control system for optimal precision and user-friendly operation. This model includes an integrated Haas Barfeed and chip conveyor, enhancing its productivity and ease of use in continuous operations. The machine's working capacity includes a maximum swing over the cross slide of 21 inches and a machining diameter of up to 11.75 inches, with a machining length of 22.5 inches.

Fitted with an 8.3-inch 3-jaw hydraulic chuck, the ST-20Y offers robust clamping capabilities. It supports a spindle speed of up to 4,000 RPM, driven by a powerful 20 HP spindle motor. The machine supports considerable bar capacity, capable of handling up to 2.5 inches, and features a comprehensive travel range with X-axis movement of 8.4 inches, Y-axis travel of +/- 2.0 inches, and a Z-axis travel of 22.5 inches. Additionally, it includes 12 turret positions utilizing a BMT65 bolt-on style, perfect for complex machining tasks.

The model boasts rapid traverse rates of 472 IPM on the X and Y axes and 945 IPM on the Z axis, allowing for swift movements between tool paths. The presence of a tailstock with MT #4 taper further enhances stability for longer workpieces. With dimensions of 142” x 90” x 92” and a weight of 10,480 lbs, this lathe is ideal for a diverse range of industrial applications.

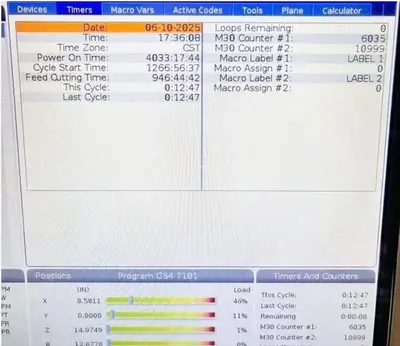

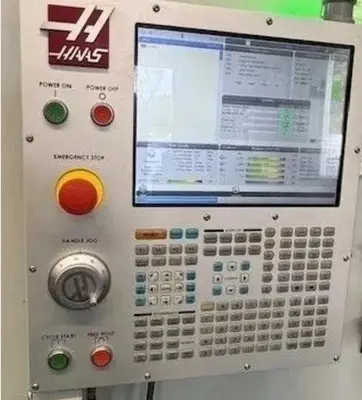

Machine Control: Haas NextGen Control

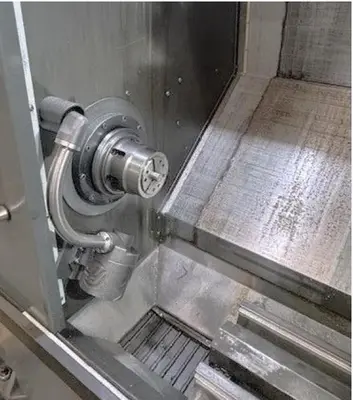

Chuck Size: 8.3" 3-Jaw Hydraulic Chuck
Maximum Swing Over Cross Slide: 21"
Maximum Machining Diameter: 11.75"
Maximum Machining Length: 22.5"
Maximum Bar Capacity: 2.5"
X-Axis Travel: 8.4"
Y-Axis Travel: +/- 2.0"
Z-Axis Travel: 22.5"
C Axis Spindle Rotation: 0.01 Degree
Spindle Nose / Spindle Bore: A2-6" / 3.5"
Spindle Speeds: 4,000 RPM
Spindle Motor: 20 HP
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 5 HP

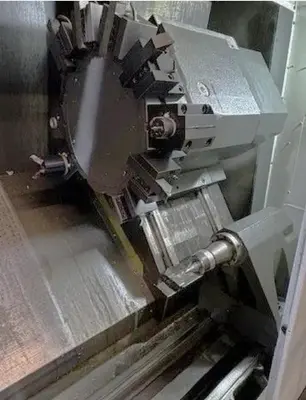

Number of Turret Positions: 12 Bolt on Style - BMT65 Type
Rapid Traverse Rates X, Y / Z: 472 IPM / 945 IPM
Tailstock Taper: MT #4
Machine Dimensions LxWxH: 142" x 90" x 92"
Machine Weight: 10,480 lbs.
