USED 2011 MAZAK QUICK TURN SMART 100S

Collet Chuck

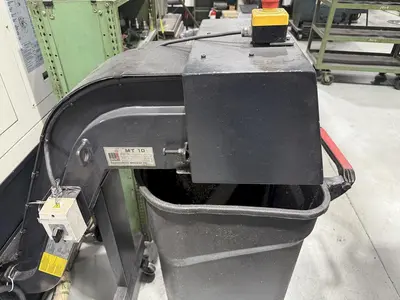

Chip Conveyor
Automatic Tool Eye
Parts Catcher

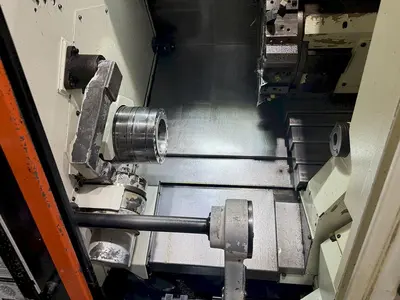

Programmable Tailstock
Transformer
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals

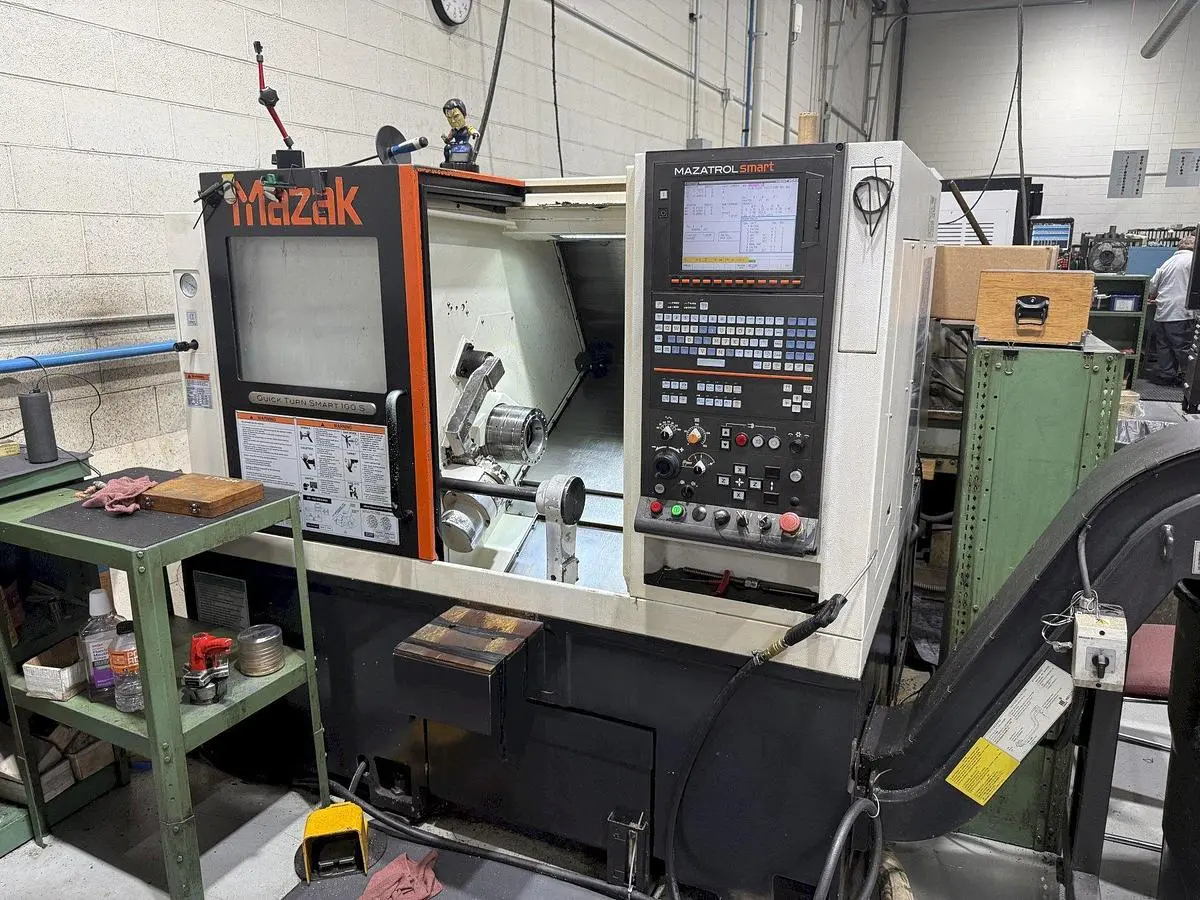

The 2011 Mazak Quick Turn Smart 100S is a reliable used CNC lathe designed for precision machining tasks. Equipped with the Mazatrol Smart Control, the lathe offers ease of operation for complex machining processes. It features a collet chuck system and is capable of handling a maximum swing of 23 inches, with a cutting diameter reaching 11 inches and a cutting length up to 12.15 inches.

The machine's spindle operates at speeds up to 6,000 RPM, driven by a robust 15 HP motor. The spindle specifications include A2-5" nose, a 2" bore, and suitable for a bar capacity of 1.65". The X-axis and Z-axis allow for travels of 7.88 inches and 13.75 inches, respectively, with rapid traverse rates of 1299 and 1417 IPM. The Quick Turn Smart 100S accommodates a 12-station turret, optimized for efficient tool changes.

This CNC lathe is supported by a sturdy construction, with machine dimensions of 75"x63"x67" and a weight of 7,716 lbs. Additionally, the tailstock offers a body travel of 13.75 inches and is compatible with MT #5 centers, enhancing its versatility for various machining tasks. This machine is suitable for businesses seeking an efficient and precise lathe for their production needs.

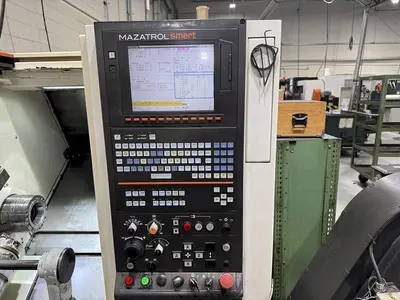

Machine Control: Mazatrol Smart Control
Chuck Sizes Main / Subspindle: Collet Chuck
Maximum Swing: 23"
Maximum Cutting Diameter: 11"
Maximum Cutting Length: 12.15"
X-Axis Travel: 7.88"
Z-Axis Travel: 13.75"
Spindle Nose / Bore / Bar Capacity: A2-5" / 2" / 1.65"
Spindle Speeds: 6,000 RPM
Spindle Motor: 15 HP

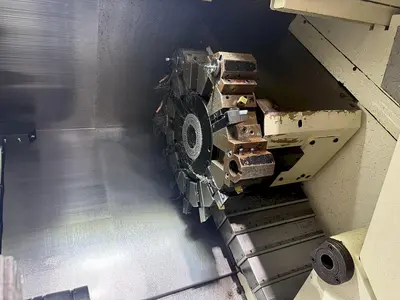

Number of Turret Positions: 12 Station Turret Bolt on Type
Rapid Traverse Rates X / Z: 1299 IPM / 1417 IPM
Tailstock Body Travel / Center: 13.75" / MT #5
Machine Dimensions LxWxH: 75"x63"x67"
Machine Weight: 7,716 lbs
