USED 2000 ROMI M-17

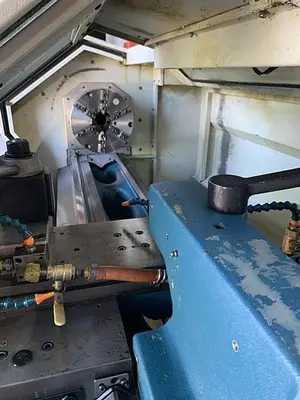

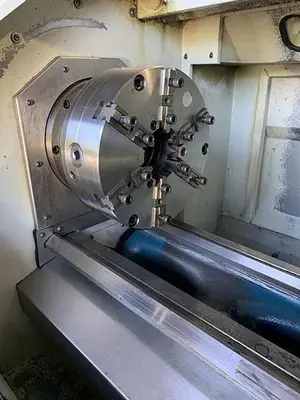

6-Jaw Manual Chuck
Hand Wheels
Quick Change Tool Post
Tailstock
Coolant System
3.5" Floppy Disk Interface
RS 232 Port Interface

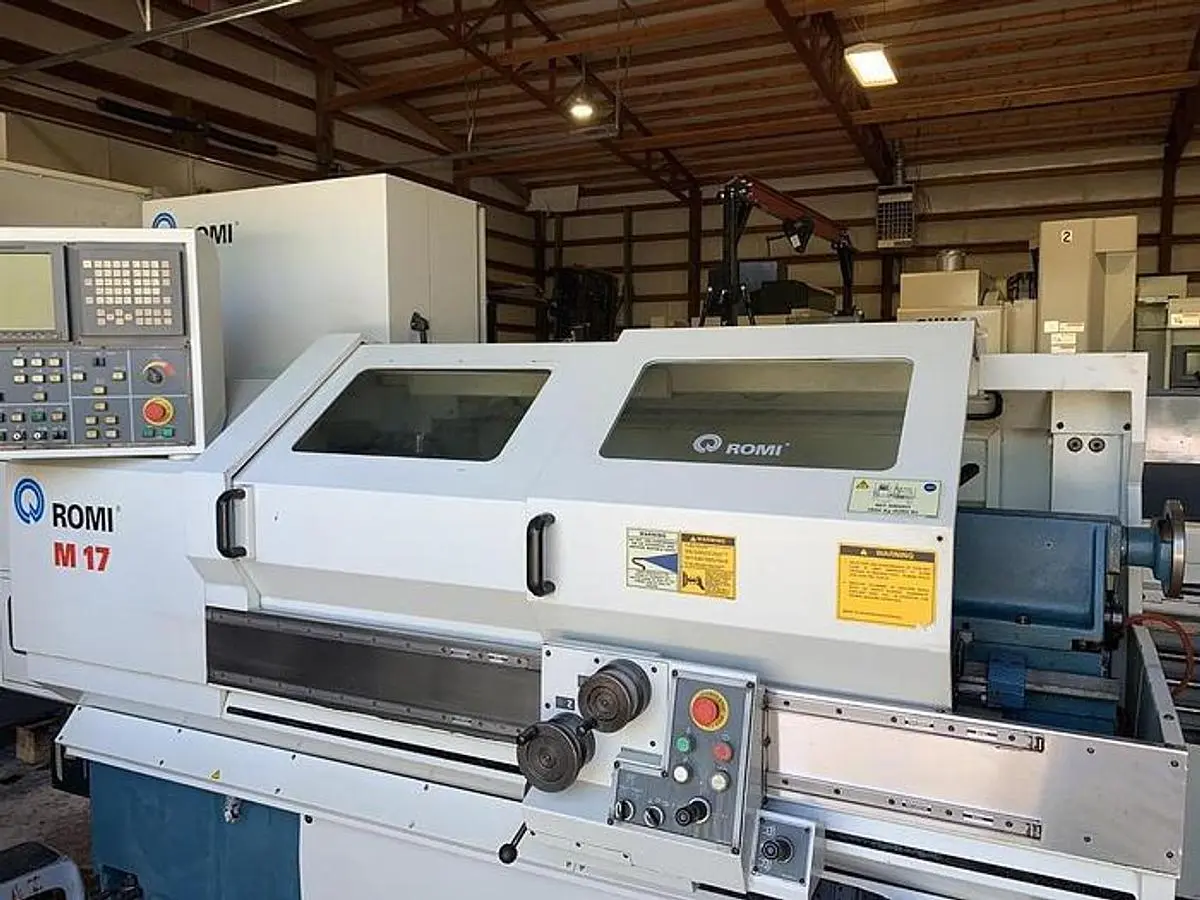

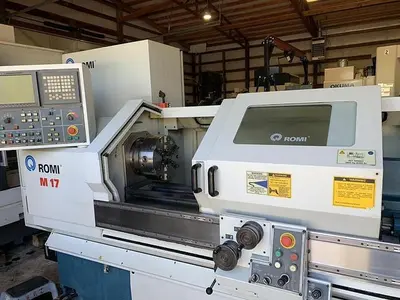

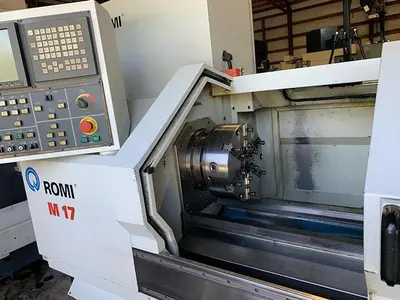

The 2000 Romi M-17 CNC Lathe is a reliable used machine designed for precision in metalworking tasks, equipped with a Fanuc 21i-T control system. This model features a 15" 6-jaw chuck and allows a maximum swing of 16.93", with a swing over the cross slide measuring 8.03". The machine offers a spacious distance between centers at 43.46", enhancing its flexibility for various machining operations.

With an X-Axis travel of 8.66" and a Z-Axis travel of 42.85", the Romi M-17 accommodates workpieces efficiently, supported by rapid traverse rates of 394 IPM on the X-Axis and 295 IPM on the Z-Axis. The spindle is capable of speeds up to 3,000 RPM and is powered by a robust 10 HP motor, providing strong performance for demanding tasks. The spindle nose is an A2-6" compatible with a bore of 2.56" and a bar capacity of 2.5".

The machine's dimensions are 110" in length, 51" in width, and 80" in height, with a total weight of 6,185 lbs. It includes a tailstock with a quill travel of 4.72" and a No. 4 MT taper, adding to its versatility. The Romi M-17 is a practical choice for those seeking a reliable CNC lathe with essential capabilities for precision engineering and efficiency in production settings.

Machine Control: Fanuc 21i-T
Chuck Size: 15" 6-Jaw Chuck
Maximum Swing: 16.93"
Maximum Swing Over Cross Slide: 8.03"
Distance Between Centers: 43.46"
X-Axis Travel: 8.66"
Z-Axis Travel: 42.85"
Number of Tool Positions: Tool Post
Spindle Nose / Bore / Bar Capacity: A2-6" / 2.56" / 2.5"
Spindle Speed: 3,000 RPM
Spindle Motor: 10 HP
Rapid Traverse Rates X / Z: 394 IPM / 295 IPM
Tailstock Quill Travel / Taper: 4.72" / No. 4 MT
Machine Dimensions LxWxH: 110" x 51" x 80"
Machine Weight: 6,185 lbs
