USED 2014 HAAS VF8/40

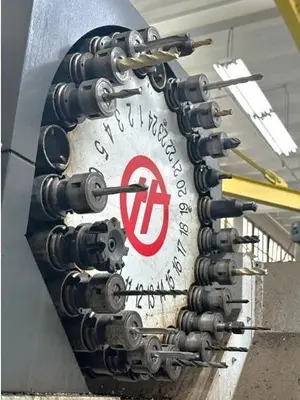

24 Station Side Mounted Tool Changer

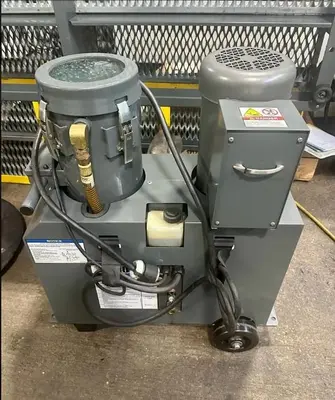

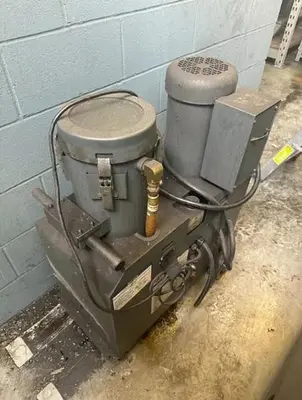

Coolant Through the Spindle High Pressure - 1000 PSI
Haas Probing Package with Tool & Part Probe (Part Probe needs repair)
Programmable Coolant Nozzle
8,100 RPM Spindle

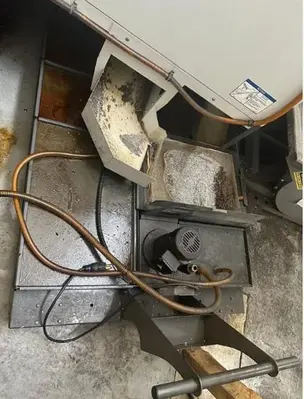

Chip Auger Conveyor
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming
Rigid Tapping
Remote Jog Handle
High Intensity Lighting
Electrical Cabinet Heat Exchanger

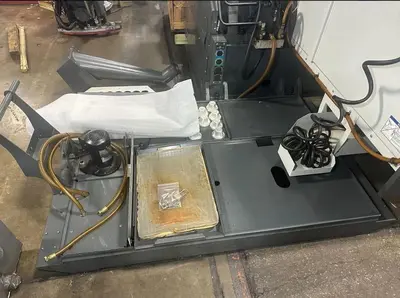

Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch
195-260V Electrical

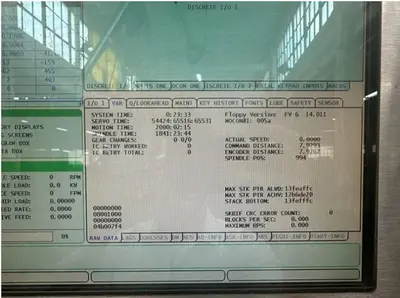

**Motion Hours 2,000**
**Spindle Hours 1,841**

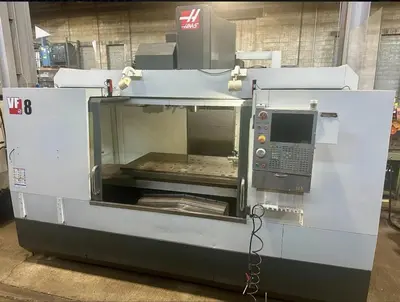

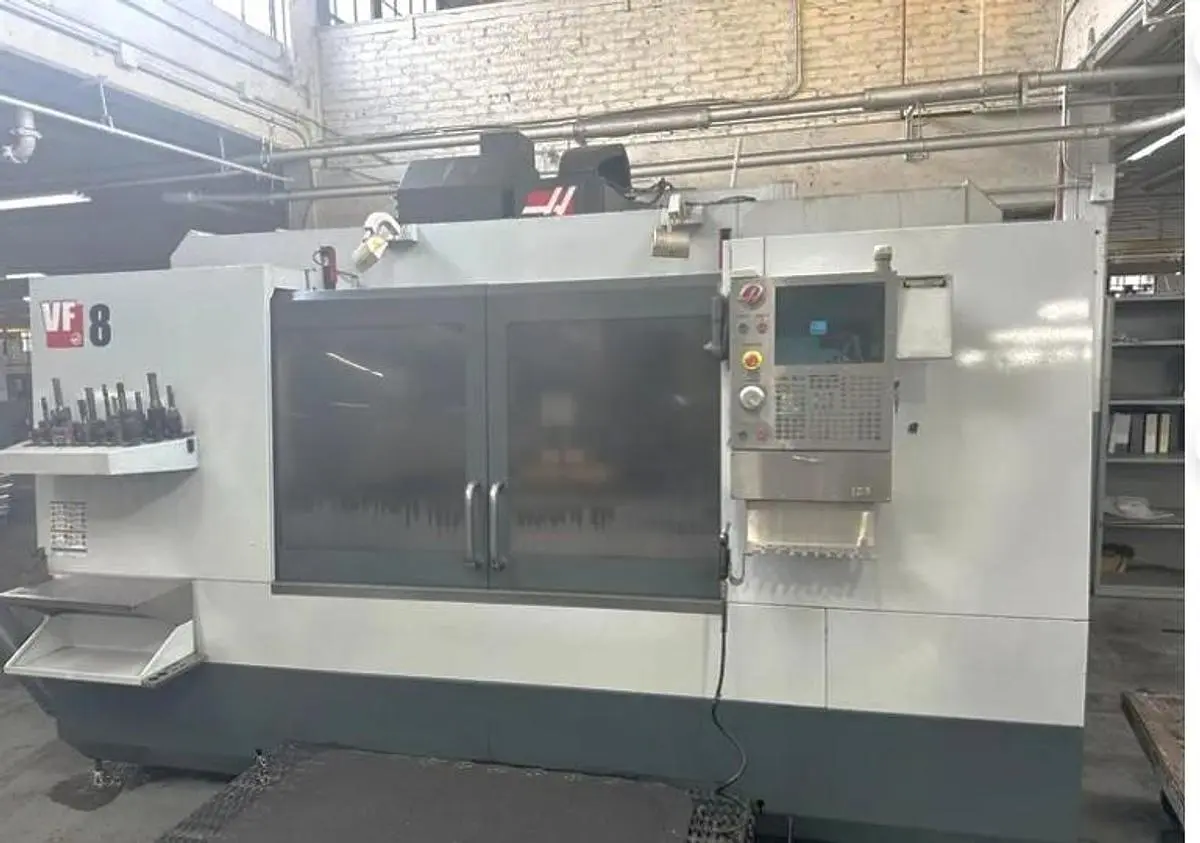

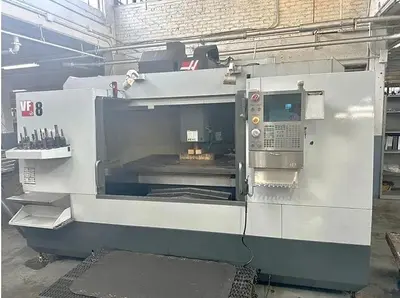

The 2014 Haas VF8/40 CNC Vertical Machining Center is a robust machine designed for precision and efficiency in machining operations. This used model includes a Haas Probing Package, which currently requires probe repair, and features a 24-position side-mount Automatic Tool Changer (ATC). The spindle runs at speeds up to 8,100 RPM and accommodates a CAT 40 tool taper, driven by a powerful 30 HP motor. This unit includes a 1000 psi high pressure coolant system with coolant through the spindle.

This machine offers expansive travel capabilities with 64 inches on the X-axis, 40 inches on the Y-axis, and 30 inches on the Z-axis. The table size is 64 by 36 inches and can support loads up to 4,000 lbs. It provides a maximum tool diameter of 5.3 inches and a weight capacity of 25 lbs. Rapid traverse rates are efficient, with 540 inches per minute on the X and Y axes and 600 inches per minute on the Z-axis, facilitating quick positioning and reduced idle times.

Housed within dimensions of 193 by 120 by 130 inches and with a weight of 24,800 lbs, the Haas VF8/40 is a sizable yet valuable addition to any manufacturing facility looking for reliable performance in 3-axis machining. With its sturdy construction and advanced CNC control, it is well-suited for various industrial applications.

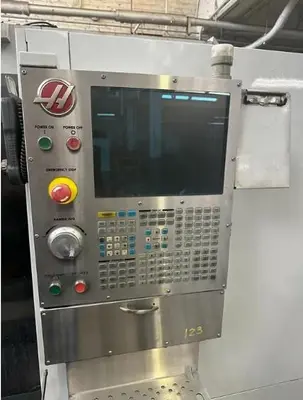

Machine Control: Haas CNC Control

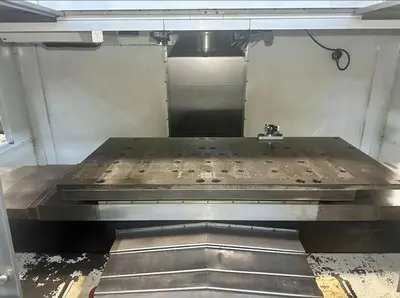

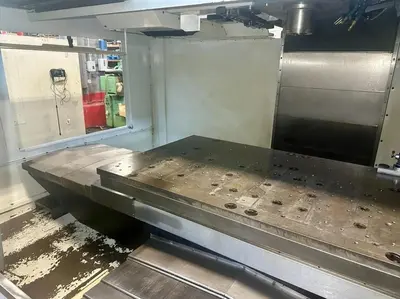

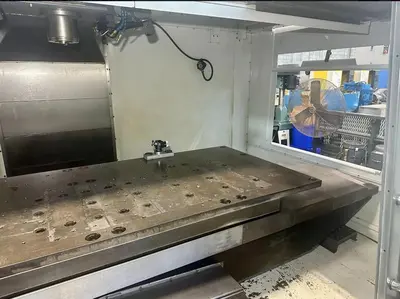

Table size: 64"x 36"
Maximum Table Load: 4,000 lbs
X-Axis Travel: 64"
Y-Axis Travel: 40"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Spindle Speeds: 8,100 RPM
Distance Spindle Nose to Table Top: 4" - 34"
Tool Magazine Capacity: 24 Position Side Mount ATC
Maximum Tool Diameter / Weight: 5.3" / 25 lbs.
Rapid Traverse Rates X / Y, Z: 540 IPM / 600 IPM
Machine Dimensions LxWxH: 193"x120"x130"
Machine Weight: 24,800 lbs.
