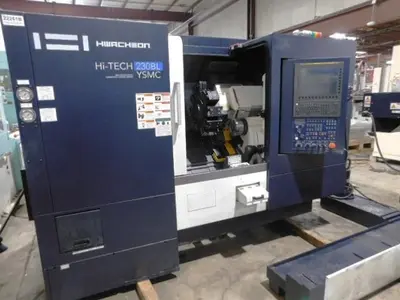

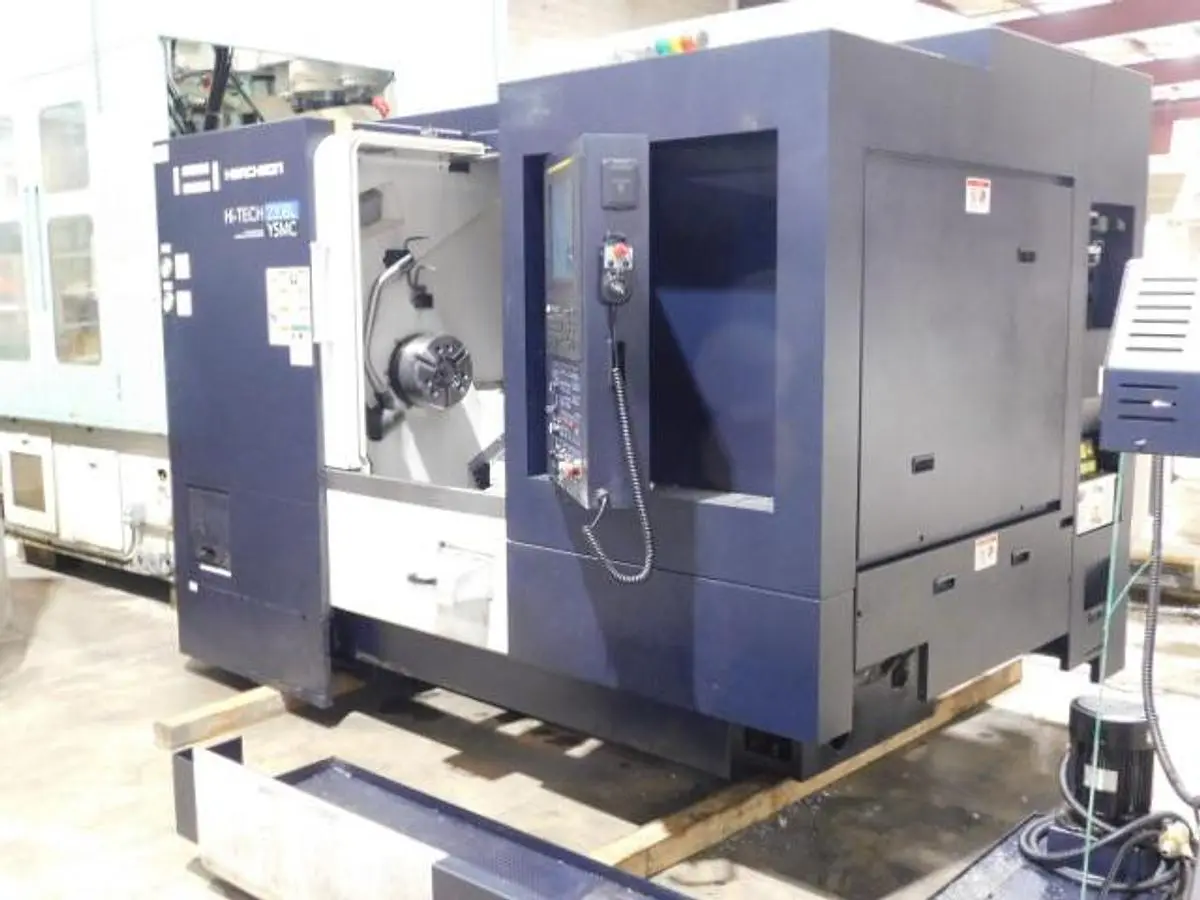

USED 2021 HWACHEON HI-TECH 230BL YSMC

Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation Both Spindles
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor
Parts Catcher

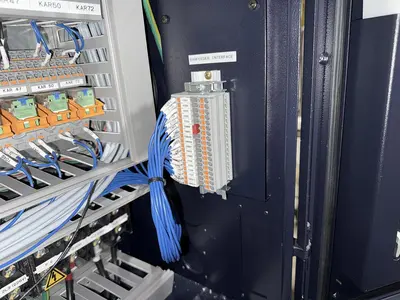

Barfeed Interface ONLY
Rigid Boxed Way Design
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

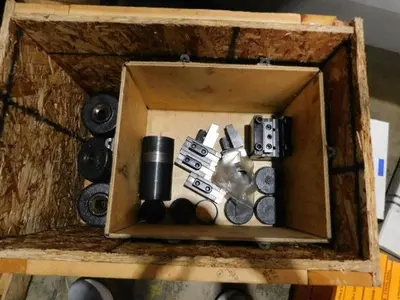

All Available Static Tooling (11 total)
(2) Live Tool Holders (one axial, one radial)
Miscellaneous Chuck Jaws
Leveling Pads

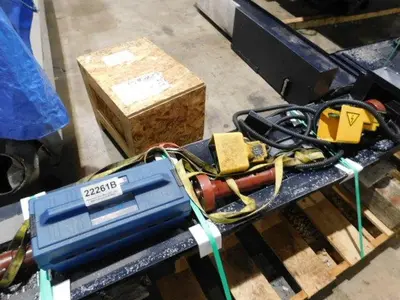

Tool Kit
Shipping Brackets

**Manufactured New in October of 2021**
**Run Hours of ONLY 2,748**

**Price New today at Over $200,000 as Equipped with current discounting**

Control: Fanuc Oi-TF Series Control
Chuck Sizes: 10" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle
Maximum Swing/Over Carriage: 29.55" / 15.76"
Maximum Cutting Diameter: 15.76"
Maximum Cutting Length: 20.93"
X-Axis Travel: 9.456"
Y-Axis Travel: +/- 2.36"
Z-Axis Travel: 27.56"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation: .001 / .001 Degree
B-Axis Travel (Subspindle): 25.216"
Spindle Nose / Spindle Bore / Bar Capacity: A2-8" / 3.58" / 3.19"
Spindle Speed / Sub Spindle Speed: 3,500 RPM / 5,000 RPM
Spindle Motor / Sub Spindle Motor: 22 HP / 10 HP
Rotary Tool Speed / Rotary Motor: 5,000 RPM / 7.4 HP
Number of Turret Positions: 12 Sided / 24 Stations
Rapid Traverse Rates X, B / Z: 1182 IPM, 945 IPM / 1182 IPM
Machine Dimensions: 124" x 76" x 83" approx.
Machine Weight: 14,960 lbs. approx.
