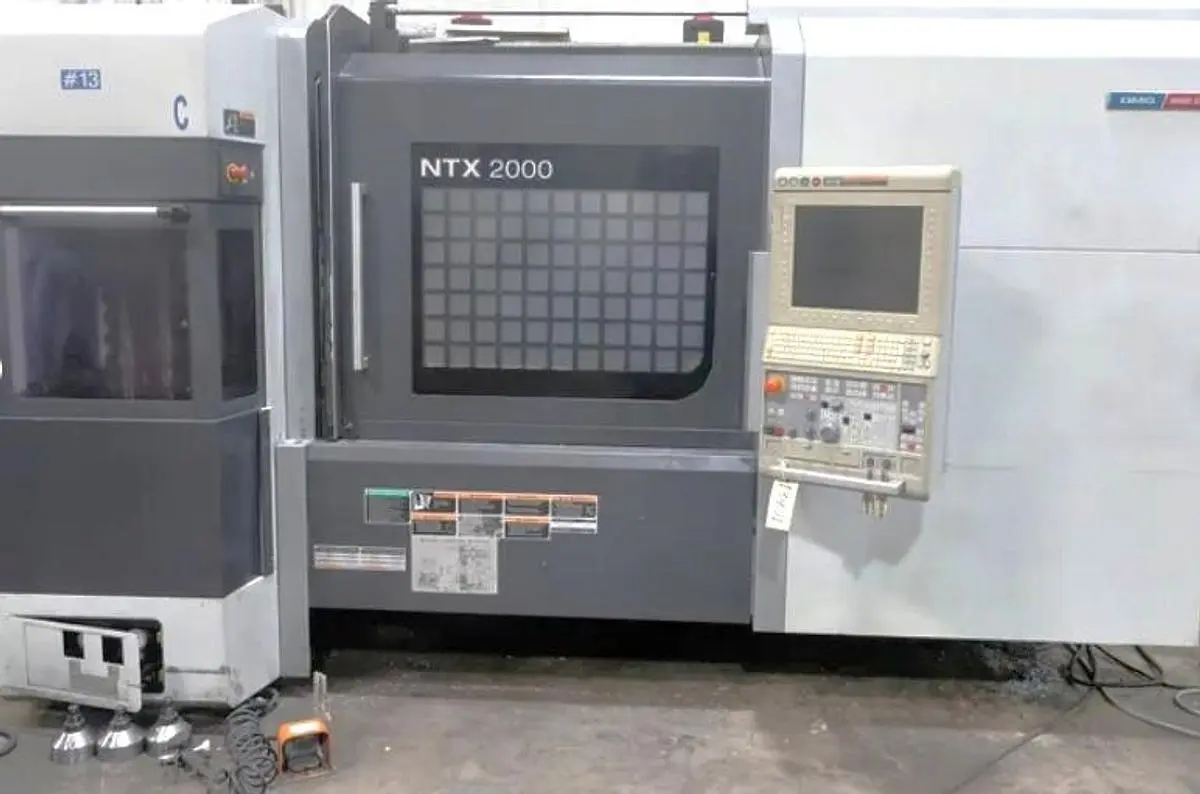

USED 2014 DMG MORI NTX2000-1500SZM

Pendulum Style B Axis Head
Full C Axis Spindle Rotation - Both Spindles
Subspindle
Y Axis Capability

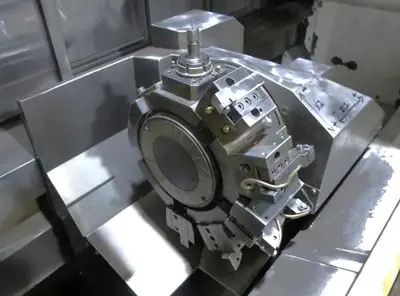

10 Station Lower Turret with Milling Option

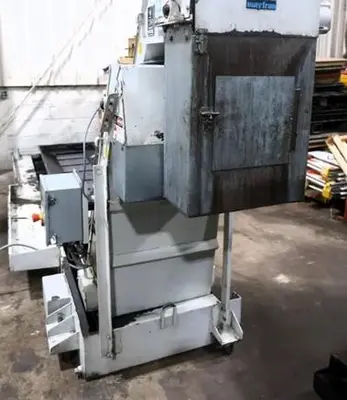

Chip Conveyor
8" 3 Jaw Kitagawa Hydraulic Chucks on Both Main & Subspindle
40 Station Tool Changer
Coolant System with Tank & Pump

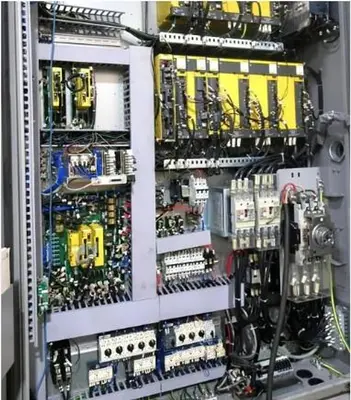

Wired 220V Electrics
RS 232 Port Interface

**Head 1 Cutting Time 13,269 Hours**
**Head 2 Cutting Time 4660 Hours**

Machine Control: Fanuc Series 31iB5 Control
Maximum Swing Upper Turret / Lower Turret: 25.9" / 11.8"
Maximum Turning Diameter Upper Turret / Lower Turret: 25.9" / 10.7"
Maximum Turning Length: 60.6"
Maximum Bar Capacity: 2.5"
X axis travel: 19.5"
X2 axis lower travel: 6.3"
Y axis travel: +/- 4.9"
Z axis travel: 61.4"
Z2 axis travel: 55.2"
B axis: +/- 120 Degrees
C Axis Spindle Rotation: .0001 Both Spindles
Spindle Nose / Spindle Bore - Both Spindles: A2-6" / 2.9"
Maximum spindle speeds (main & sub): 5,000 RPM
Spindle motor (main & sub): 30 HP
Mill Spindle Taper: Capto C6
Mill Spindle Speed: 12,000 RPM
Mill Spindle Motor: 24.7 HP
Tool magazine: 40 Station Tool Changer
Number of Lower Turret Positions: 10 Station Turret - Live Tooling Capable
Rapid Traverse Rates X/X2/Y/Z/Z2: 1574 IPM/1181 IPM/1574 IPM/1574 IPM/1496 IPM
Rapid Traverse Rates A Axis (subspindle): 1181 IPM
Machine Dimensions LxWxH: 161"x118"x104"
Machine weight: 33,594 lbs
