USED 1997 DAEWOO PUMA 250B

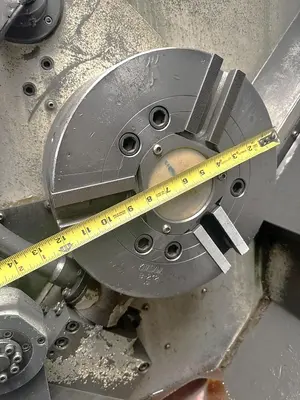

12" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor
Hydraulic Tailstock
RS 232 Port Interface
Boxed Ways
Coolant Tank with Pump
All Available Static Tooling
All Available Manuals
Wired 220V Electrics

**ONLY 7,848 Cutting Hours**

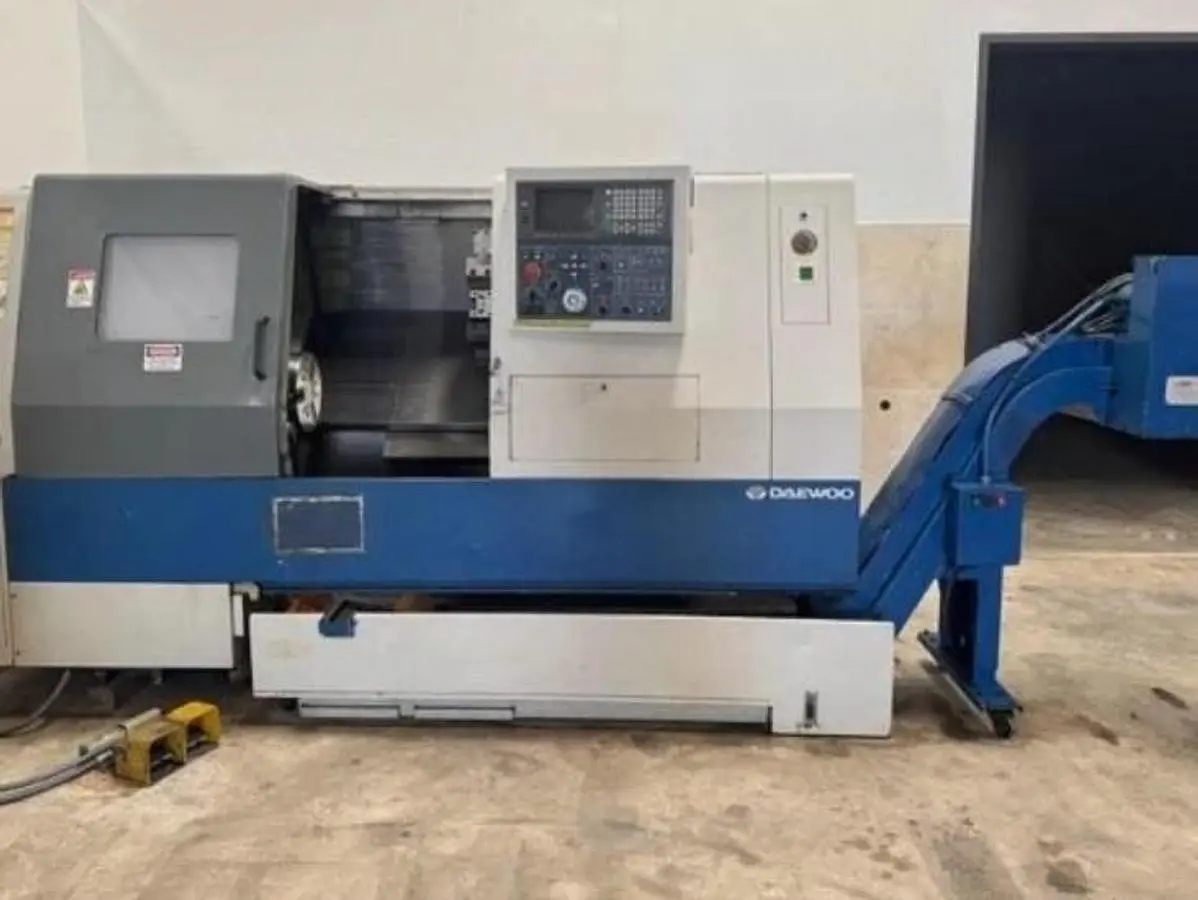

The 1997 Daewoo Puma 250B CNC Lathe is a reliable choice for precision machining tasks. It features a Fanuc 18T Control and is fitted with a 12" 3-jaw hydraulic chuck, ensuring efficient and secure handling of workpieces. With a maximum swing over bed of 22.4" and a maximum machining length of 27.2", this lathe is well-suited for medium to large-sized projects. The machine can accommodate a maximum bar capacity of 3.03" and includes a tailstock with an MT #5 taper, providing additional support for long parts.

This machine offers a versatile spindle speed range from 35 to 3,500 RPM, powered by a robust 30 HP motor. It is equipped with a 12-station turret for flexibility in tooling arrangements and achieves rapid traverse rates of 1181 IPM, ensuring quick repositioning. With X and Z-axis travels of 11.1" and 26.8" respectively, it allows for comprehensive workpiece coverage.

With only 7,848 cutting hours, the Puma 250B remains in excellent condition. It comes with a chip conveyor and tool presetter, enhancing operational efficiency and convenience. The machine dimensions of 170" x 71" x 72" and a weight of 12,000 lbs. make it a substantial yet manageable addition to any workshop.

Control: Fanuc 18T Control
Chuck Size: 12" 3 Jaw Hydraulic Chuck
Maximum Swing over Bed: 22.4"
Maximum Cutting Diameter: 147.5"
Maximum Machining Length: 27.2"
Maximum Bar Capacity: 3.03"
X-Axis Travel: 11.1"
Z-Axis Travel: 26.8"
Spindle Nose / Spindle Bore: A2-8" / 3.54"
Spindle Speeds - Main: 35 - 3,500 RPM
Spindle Motor - Main: 30 HP

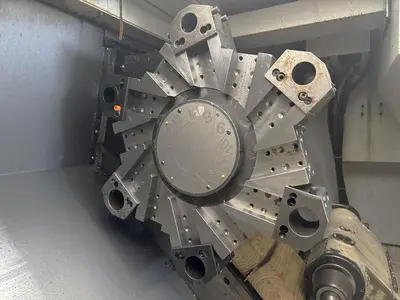

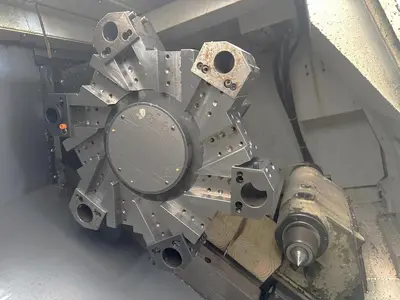

Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates: 1181 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 3.9" / 3.9" / MT #5
Machine Dimensions: 170" x 71" x 72"
Machine Weight: 12,000 lbs.
