USED 1997 WASINO LG-7

Automated Loading Robot
10 Position Rotary Work Stocker

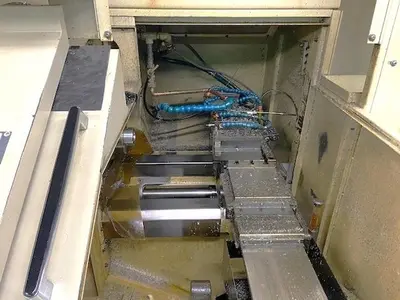

Gang Style Tool Lathe
5.25" 3 Jaw Hydraulic Chuck
Rigid Tapping
Spindle Orientation
Coolant Tank with Pump
RS 232 Port Interface
All Available Manuals

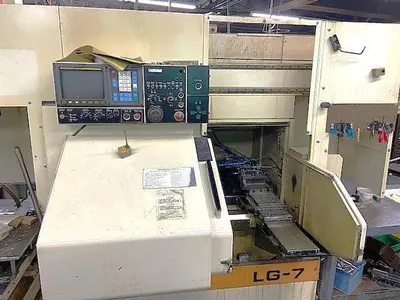

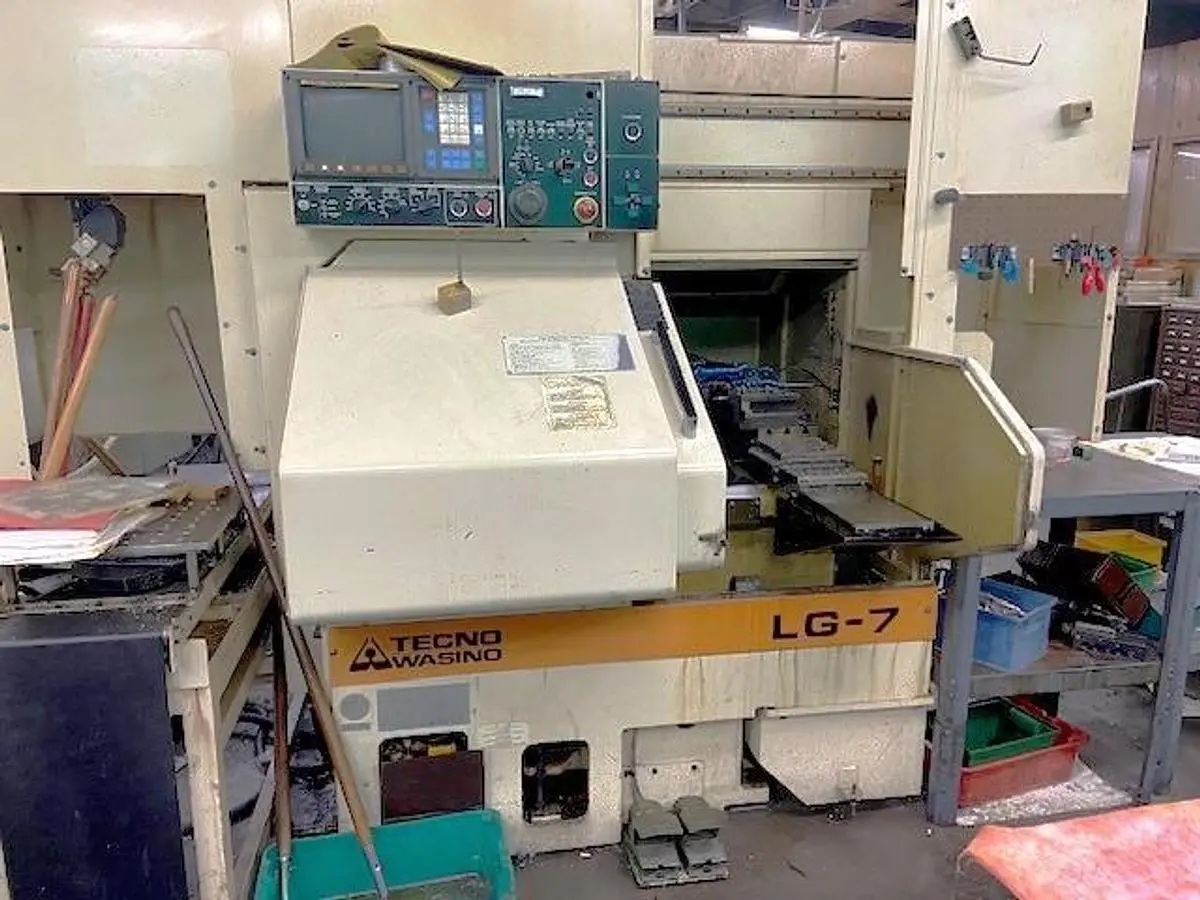

The 1997 Wasino LG-7 CNC Gang Style Lathe is a reliable, used machine equipped with a Fanuc 0T control system, designed for precision and efficiency. This lathe allows for a maximum swing over bed of 16.5 inches and can handle a turning diameter up to 11.8 inches with a bar capacity of 1.7 inches. Its gang slide tooling type provides an effective setup for various applications, extending versatility for small to medium-sized production runs.

With X and Z-axis travels of 5.9 inches and 20.4 inches respectively, this machine offers robust capabilities for diverse machining tasks. It features a spindle speed range from 10 to 3,500 RPM, powered by a 10 HP motor, ensuring smooth and accurate operation. The spindle nose and bore specifications are A2-6 inches and 2.0 inches, respectively, providing compatibility with various tooling and part setups.

The auto loader ensures enhanced productivity, while rapid traverse rates of 470 IPM on the X-axis and 787 IPM on the Z-axis ensure swift repositioning. Compact in design, the LG-7 measures 94 inches by 76 inches by 98 inches, weighing approximately 7,350 pounds, fitting well into workshops with limited space while offering substantial machining capabilities.

Control: Fanuc 0T Control
Maximum Swing over Bed: 16.5"
Maximum Turning Diameter: 11.8"
Maximum Bar Capacity: 1.7"
X-Axis Travel: 5.9"
Z-Axis Travel: 20.4"
Spindle Nose / Spindle Bore: A2-6" / 2.0"
Spindle Speed: 10 - 3,500 RPM
Spindle Motor: 10 HP
Tooling Type: Gang Slide
Rapid Traverse Rates X/Z: 470 IPM / 787 IPM
Machine Dimensions: 94" x 76" x 98"
Machine Weight: 7,350 lbs.
