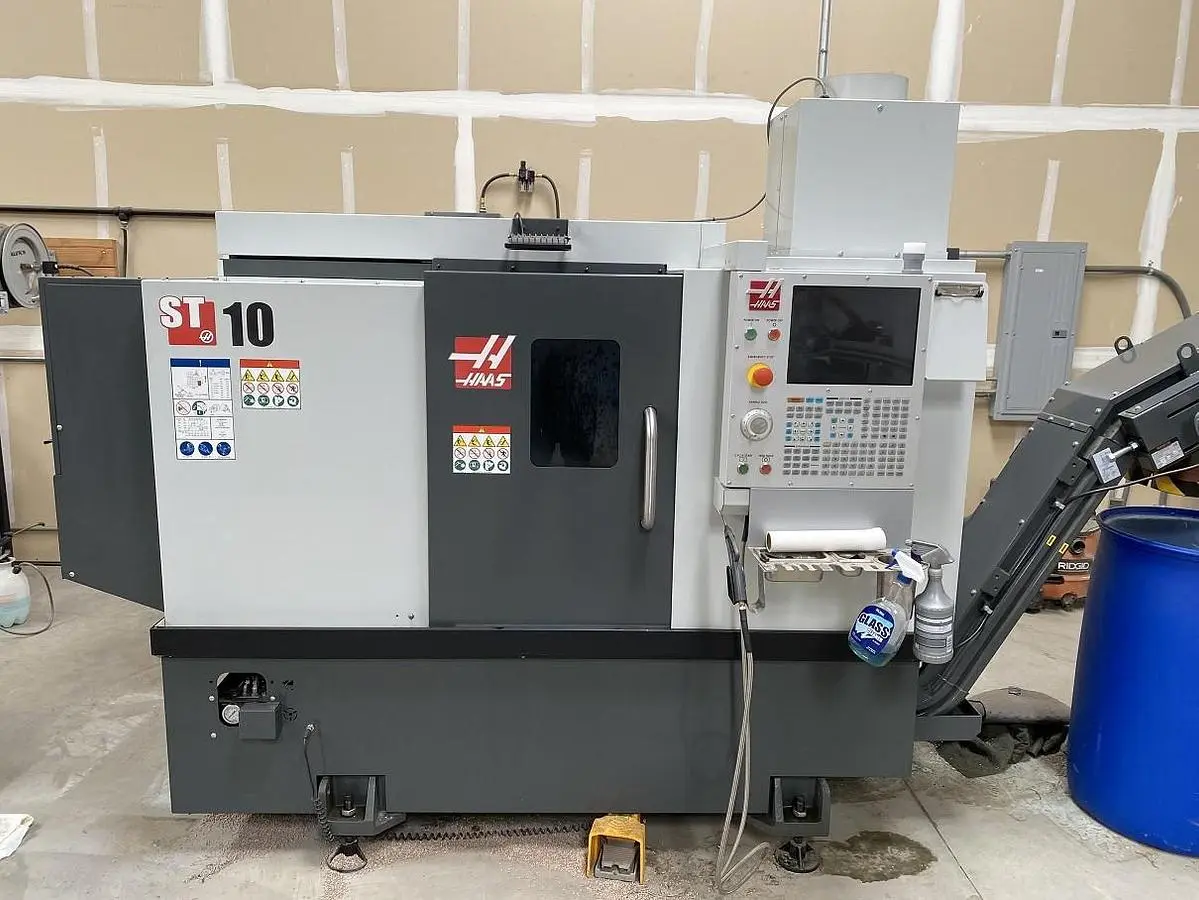

USED 2023 HAAS ST-10

6.5" 3 Jaw Hydraulic Chuck
Tool Presetter
Belt Style Chip Conveyor
Enclosure Exhaust System

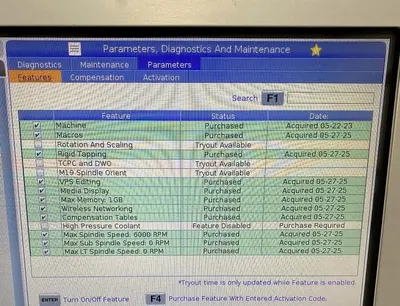

Compensation Tables
User Definable Macros
Visual Part Programming System
VPS Editing
Media Display
1 GB Programming Memory

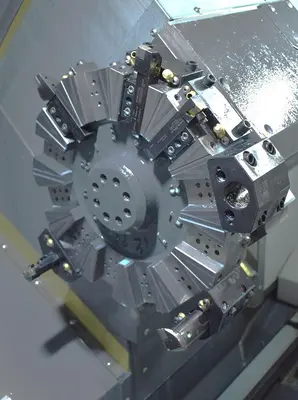

12 Station Block Turret
Rigid Tapping
Coolant System with Tank & Pump
Wireless Networking
USB Port Interface
RS 232 Port Interface
15" LCD Color Monitor
Memory Lock Keyswitch
220V 3-Phase Electrics

**Price out new today at $74,980 as equipped**

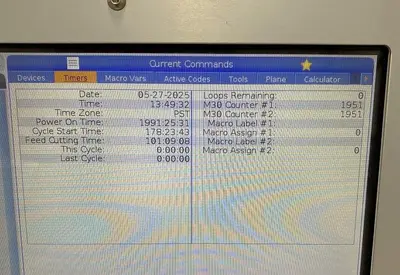

**Power On Hours 1,991**
**Cycle Start Hours 178**
**ONLY 101 Feed Cutting Hours**

Machine Control: Haas CNC Control
Chuck Size: 6.5" / 1.75" Thru hole
Maximum Swing: 25.25"
Maximum Swing Over Cross Slide: 16.25"
Maximum Machining Diameter: 14"
Maximum Machining Length: 14"
X-Axis Travel: 7.88"
Z-Axis Travel: 14"
Spindle Nose / Bore / Bar Capacity: A2-5" / 2.31" / 1.75"
Spindle Motor: 20 HP / 15 HP
Spindle Speeds: 6,000 rpm
Number of Turret Positions: 12 Bolt on Style
Spindle Torque: 75 ft/lbs.
Rapid Traverse Rates: 1,200 IPM
Machine Dimensions LxWxH: 92"x55"x69"
Machine Weight: 6,420 lbs
