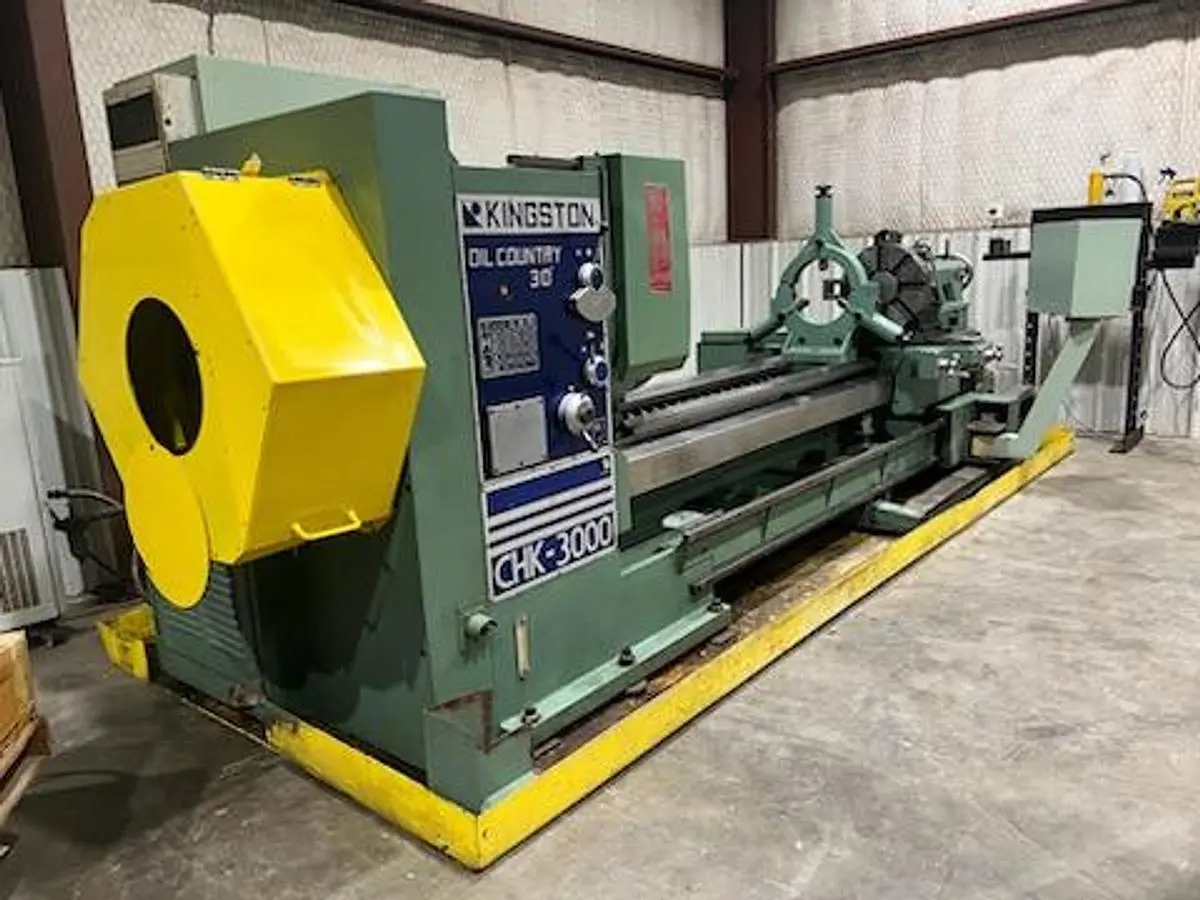

USED 2001 KINGSTON CHK-3000 W/12.5" BORE

Fanuc OT
Dual 24" 4-Jaws Chucks

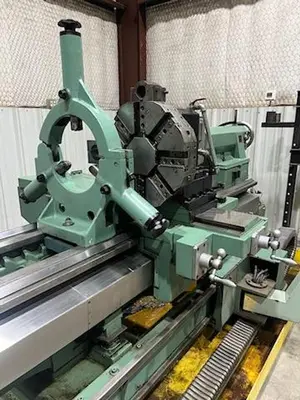

Steady Rest
Chip Conveyor
Auto Thread Re-Track
2-Speed Drive Tailstock Quill
Coolant System
All Available Manuals

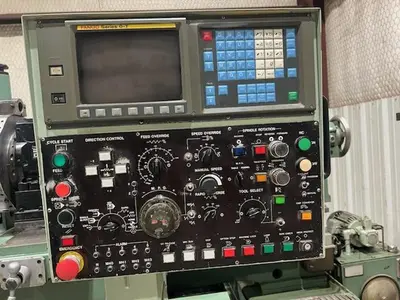

Machine Control: Fanuc OT

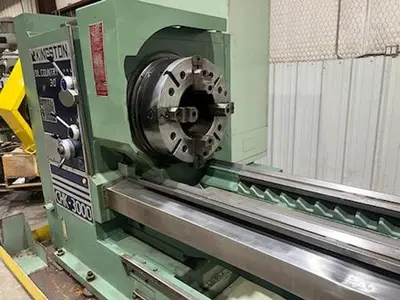

Chuck Size: (2) 24" 4-Jaw Manual Chuck
Maximum Swing: 30"
Maximum Swing Over Cross Slide: 20.5"
X-axis travel: 21.7"
Z-Axis Travel: 120"
Spindle Nose / Bore / Bar Capacity: A2-20 / 12.5"/ 12.5"
Spindle Speeds: 5-300 rpm
Spindle Motor: 20 hp
Number of Turret Positions: 8 Vertical Front / 6 Horizontal Rear
Rapid Traverse Rates: 394 ipm
Tailstock Quill Diameter / Quill Travel / Taper: 5.12" / 11.75" / #6 MT
Threading Inch: (5) 1-28 TPI
Threading Metric: (41) 1-28mm
Machine Dimensions LxWxH: 226"x74"x75"
Machine Weight: 18,000 lbs
