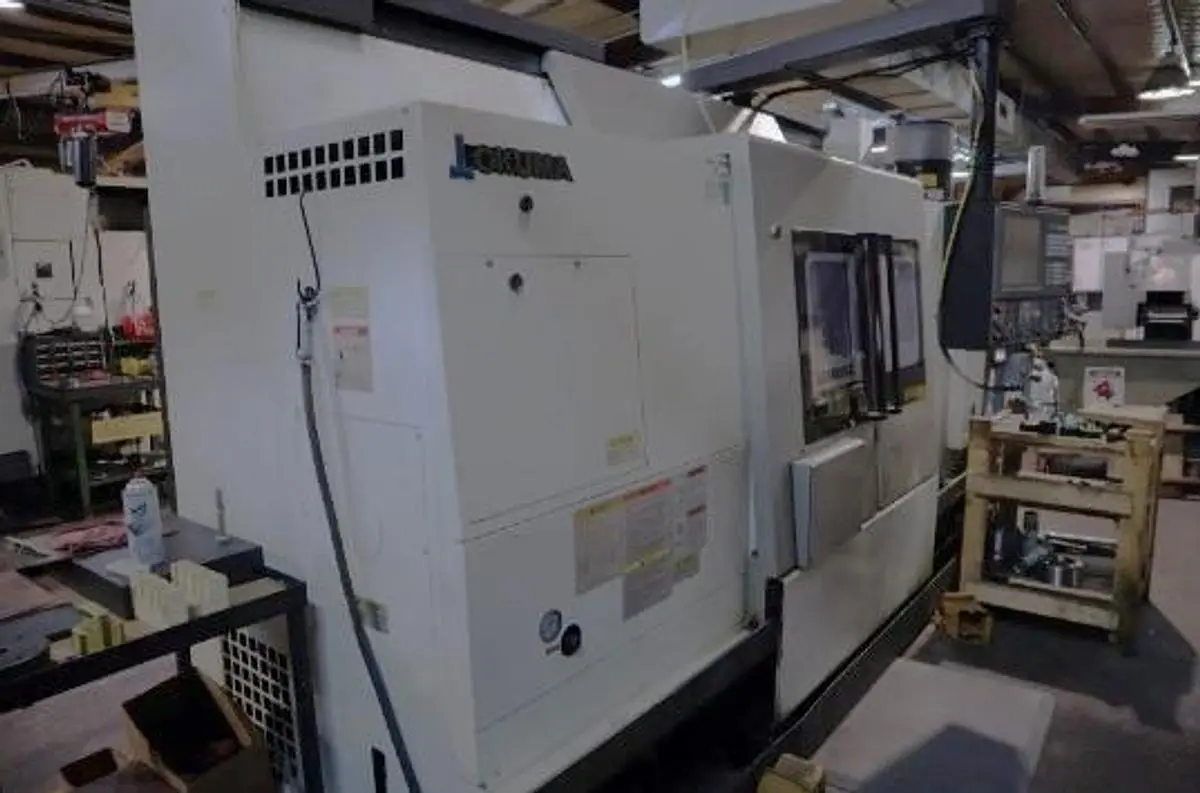

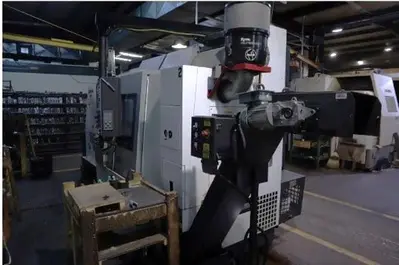

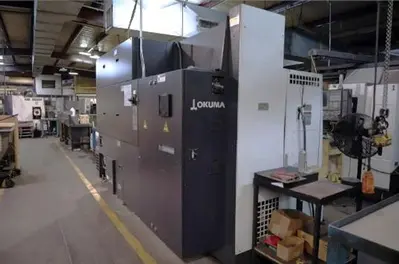

USED 2016 OKUMA LB3000EXII-MYW 800

Live Milling/Drilling Capability
Full C-Axis Spindle Rotation
Y-Axis Capability
Chip Conveyor
Tool Pre Setter
10" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Sub Spindle
Big Bore Spindle with 3.59" Bore and 3.18" Bar Capacity
High Pressure Coolant
C Axis Synchronization
Off Center Turning Function
Rapid Traverse Override Switch
Thread Start Point Offset
Helical Cutting for MY
Variable Speed Threading
Negative Tool Radius Compensation
Inverse Time Function
Hard Disk Interface
RS 232 Port Interface
All Available Tooling
All Available Manuals

**Cutting Hours of 5,755**

The 2016 Okuma LB3000EXII-MYW 800 is a robust CNC lathe equipped with advanced features designed for precision and efficiency. It includes an Okuma OSP-P300LA control system, ensuring seamless operation and easy programming. This model features hydraulic chucks with a 10-inch main spindle and a 6-inch subspindle, allowing versatile handling of materials.

This machine offers substantial capabilities, with a maximum swing of 22.83 inches and a maximum turning diameter of 13.39 inches. It supports a turning length of up to 31.5 inches, with a center distance of 42.72 inches and a bar capacity limit of 3.18 inches, making it suitable for a wide range of applications. The X, Y, and Z axes provide ample travel, allowing for complex machining tasks, with Y-axis travel at 4.53 inches and Z-axis travel at 39.76 inches.

For enhanced productivity, the LB3000EXII-MYW 800 features a powerful 40 HP main spindle motor reaching speeds of 4,200 RPM, complemented by a 15 HP subspindle motor with a speed of 6,000 RPM. The milling spindle, also rated at 15 HP, offers speeds up to 6,000 RPM. The 12-position turret facilitates versatile tooling options. This machine combines power and precision, making it an ideal choice for various industrial applications.

Machine Control: Okuma OSP P300LA Control
Chuck Sizes Main / Subspindle: 10" / 6" Hydraulic Chucks
Maximum Swing: 22.83"
Maximum Turning Diameter: 13.39"
Maximum Cutting Length: 31.5"
Center distance: 42.72"
Maximum Bar Capacity: 3.18"
X-Axis Travel: 10.24"
Y-Axis Travel: 4.53" (+2.76" / -1.77")
Z-Axis Travel: 39.76"
C-Axis Rotation: .001 Degrees Full C
Main Spindle Nose / Bore: A2-8" / 3.59"
Subspindle Bore: 2.44"
Main Spindle Motor: 40 HP
Subspindle Motor: 15 HP
Main & Subspindle Speeds: 4,200 RPM / 6,000 RPM
Milling Spindle Motor: 15 HP
Milling Spindle Speed: 6,000 RPM
Number of Turret Positions: 12 Position Turret
Machine Dimensions LxWxH: not available
Machine Weight: not available
