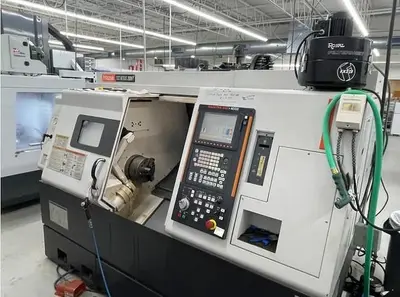

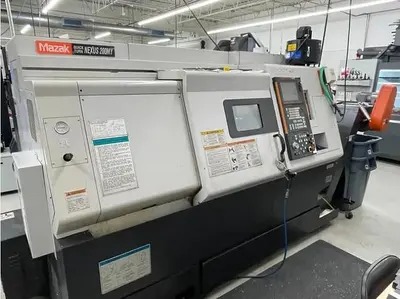

USED 2004 MAZAK NEXUS QTN 200-II MY

Y Axis Capability (Off Center)
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
8" 3 Jaw Kitagawa B208 Hydraulic Chuck
Automatic Tool Eye

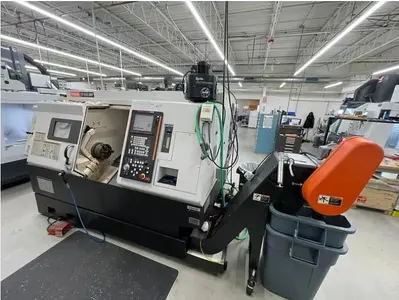

Chip Conveyor
Programmable Tailstock
EIA/ISO Input Function
Chuck Open/Close Confirmation
Mill Spindle Synchronous Tapping
Network Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Multi Tap Transformer
Coolant System with Tank & Pump
Miscellaneous Static Tool Holders
Wired 208V Electrics
(6) Live Tool Holders
All Available Manuals

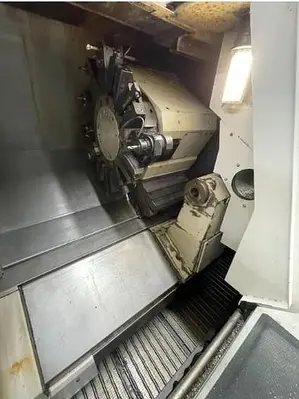

The 2004 Mazak Nexus QTN 200 II MY is a versatile used CNC lathe designed for high precision and efficiency with milling and Y-axis capabilities. It features a Mazatrol Fusion 640T Nexus control system, providing user-friendly operation and advanced machining capabilities. Equipped with an 8" three-jaw hydraulic chuck, this machine accommodates a maximum swing of 26.58" and a cutting diameter of up to 14.75". The spindle operates at a speed of 5,000 RPM, powered by a robust 35 HP motor, ensuring smooth and efficient machining processes.

Designed for flexibility, the machine facilitates a variety of operations, with an X-axis travel of 9.05", Y-axis travel of 4" (±2"), and Z-axis travel of 22.63". It includes a 12-station turret modified for VDI, enabling swift tool changes and a rotary tool speed of up to 4,500 RPM. The C Axis spindle offers precise rotation at 0.001-degree increments, enhancing complex machining tasks.

For added support, the lathe features a tailstock with 21.75" body travel and an MT #5 taper, alongside rapid traverse rates of 1181 IPM on the X-axis and 1299 IPM on the Z-axis. The machine is fitted with a chip conveyor and tool presetter, optimizing productivity. With dimensions of 137" x 74" x 73" and weighing 11,000 lbs., this CNC lathe is a robust choice for varied manufacturing needs.

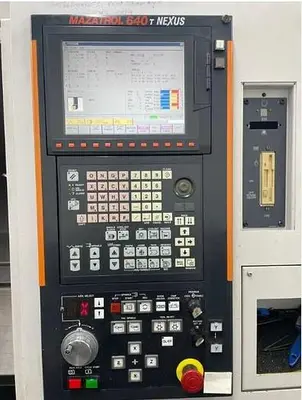

Control: Mazatrol Fusion 640T Nexus
Chuck Sizes: 8" 3 Jaw Hydraulic
Maximum Swing/Over Carriage: 26.58" / not avail.
Maximum Cutting Diameter: 14.75"
Maximum Cutting Length: 21.28"
X-Axis Travel: 9.05"
Y-Axis Travel: 4" (+/- 2.0")
Z-Axis Travel: 22.63"
C Axis Spindle Rotation: 0.001 Degree
Spindle Nose / Spindle Bore / Bar Capacity: A2-6" / 3.0" / 2.01"
Spindle Speed: 5,000 RPM
Spindle Motor: 35 HP
Rotary Tool Speed / Rotary Motor: 4,500 RPM / 7.5 HP
Number of Turret Positions: 12 Station Turret - Modified VDI
Rapid Traverse Rates X/Z: 1181 IPM / 1299 IPM
Tailstock Body Travel / Tailstock Taper: 21.75" / MT #5
Machine Dimensions: 137" x 74" x 73"
Machine Weight: 11,000 lbs.
