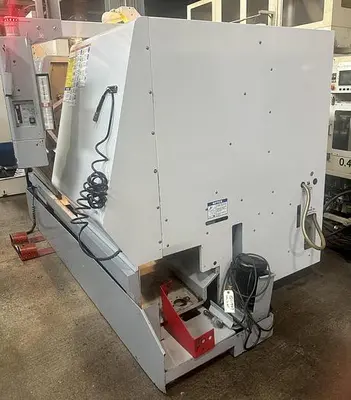

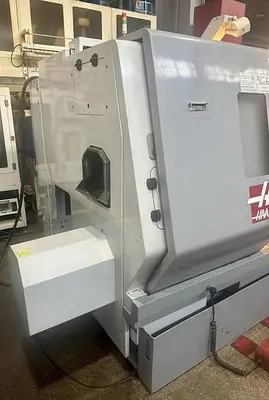

USED 2005 HAAS SL-30T

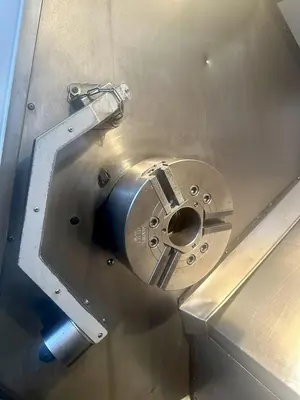

12" 3 Jaw Hydraulic Chuck

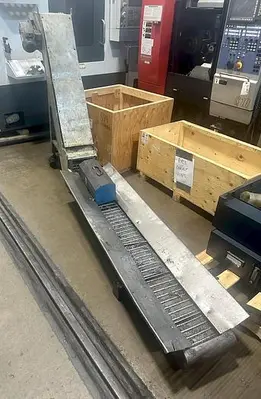

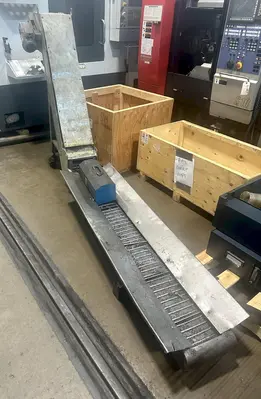

Chip Conveyor
Programmable Tailstock
Tool Presetter

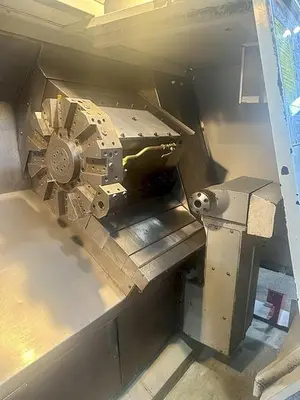

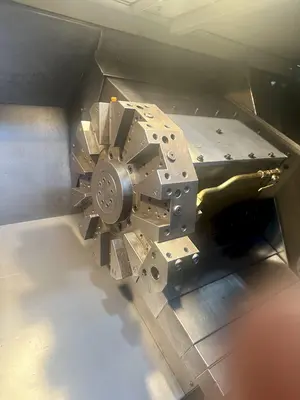

Block Style Turret
Rigid Tapping
2 Speed Gearbox
High Intensity Lighting
Chuck & Tailstock Foot Pedals
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump

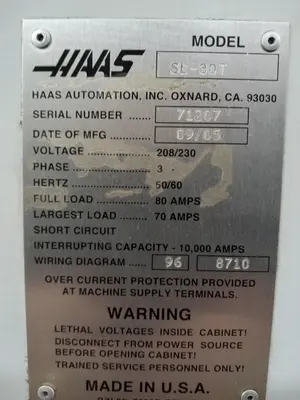

208/230V 3 phase Electrics
All Available Manuals
(1) Boring Bar Holder

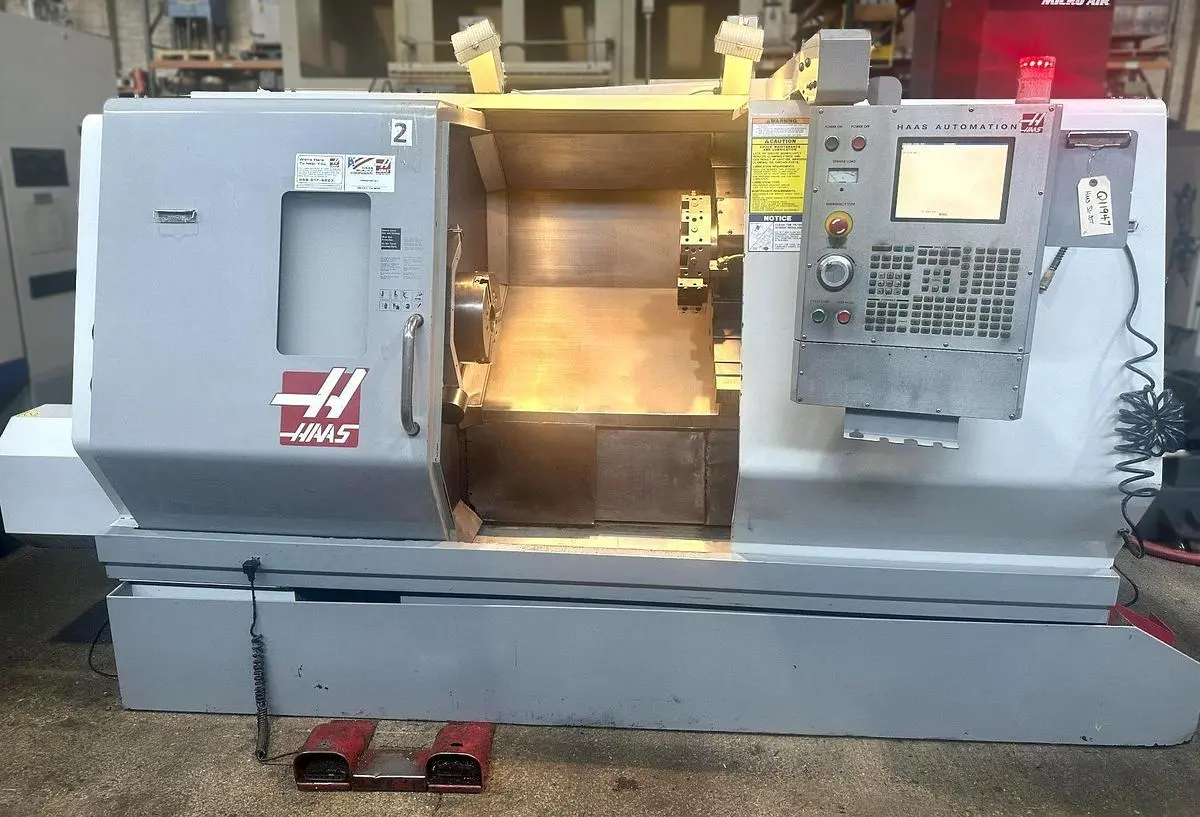

The 2005 Haas SL-30T is a reliable used CNC lathe designed for precision and productivity in machining operations. It features a Haas CNC control system and a 12-inch 3-jaw hydraulic chuck for versatile and efficient work handling. The machine boasts a maximum swing of 30 inches and a 14.5-inch maximum swing over the cross slide, catering to a range of turning requirements.

The SL-30T supports a maximum cutting diameter of 14.5 inches and a turning length of 34 inches, with a bar capacity of 3 inches. It delivers impressive performance with a spindle speed range of 20 to 3,400 RPM powered by a 30 horsepower motor. Equipped with a 12-station turret, it enhances efficiency by facilitating quick tool changes. The lathe also offers 11.3 inches of X-axis travel and 34 inches of Z-axis travel, along with rapid traverse rates of 710 inches per minute.

With a machine weight of 16,000 lbs, it ensures stability and durability. Additional features include a tailstock with 33.5 inches of body travel and an MT #4 taper. The SL-30T’s compact dimensions of 129 inches in length, 66 inches in width, and 74 inches in height make it suitable for various shop floor layouts, offering a robust solution for metalworking tasks.

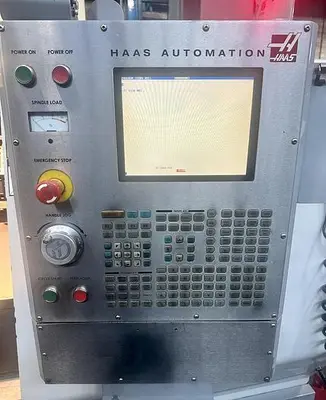

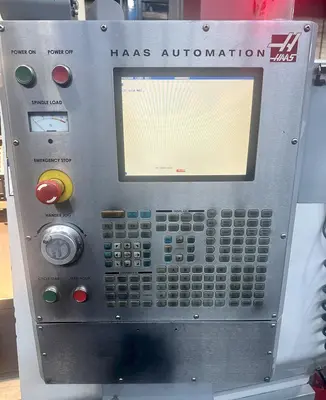

Machine Control: Haas CNC Control
Chuck Size: 12" 3-Jaw Hydraulic
Maximum Swing: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 14.5"
Maximum Turning Length: 34"
Maximum Bar Capacity: 3"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Nose / Spindle Bore: A2-6" / 3.5"
Spindle Speeds: 20 - 3,400 RPM
Spindle Motor: 30 HP
Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates: 710 IPM
Tailstock Body Travel / Taper: 33.5" / MT #4
Machine Dimensions LxWxH: 129" x 66" x 74"
Machine Weight: 16,000 lbs
