USED 2013 DMG MORI NHX-4000

2 Pallet Changer System
Coolant Through the Spindle
60 Station Tool Changer
1 Degree Pallet Indexing
Coordinate System Rotation
48 Work Piece Offsets
512 KB Program Storage
Tool Life Management System
Flood Coolant
Chip Conveyor
Rigid Tapping
All Available Manuals
220V 3 Ph 60 Hz
Full Load 129 Amps

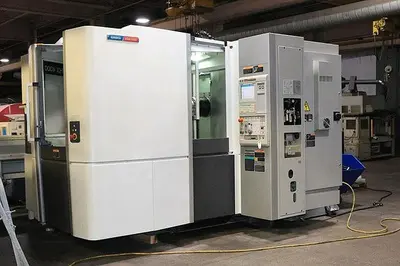

The 2013 DMG Mori NHX-4000 CNC Horizontal Machining Center is a reliable and precise machine designed for demanding industrial applications. It features a Mitsubishi M730BM control and comes with dual 15.7" x 15.7" pallets, allowing for efficient production with 1-degree pallet indexing for flexible operation. With its substantial table load capacity of 880 lbs, it is well-suited for handling heavy workpieces.

This machine provides a significant working envelope with X, Y, and Z-axis travels of 22", 22", and 26" respectively, ensuring versatility in handling various part sizes up to 24.8" in diameter and 35.4" in height. Equipped with a CAT 40 spindle capable of reaching speeds up to 12,000 RPM and driven by a robust 40 HP motor, this machine offers strong performance in both speed and precision. The through-spindle coolant feature enhances cutting efficiency and prolongs tool life.

The NHX-4000 boosts productivity with its 60-position tool changer, accommodating a range of tools for different machining tasks. Rapid traverse rates of 2,362 IPM enable quick positioning, minimizing idle time. Measuring 107.1" x 165.9" x 108" and weighing 16,750 lbs, this machining center requires adequate floor space and support infrastructure in a manufacturing facility.

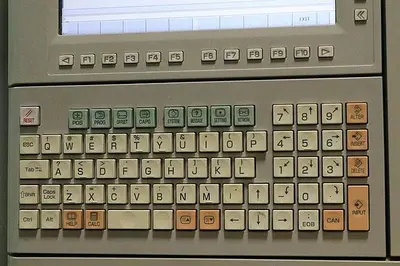

Machine Control: Mitsubishi M730BM
Pallet Size / Number of Pallets: 15.7" x 15.7" / 2 Pallets
Pallet Indexing: 1 Degree Indexing
Maximum Table Load: 880 lbs
Maximum Part Size (DxH): 24.8"x35.4"
X-Axis Travel: 22"
Y-Axis Travel: 22"
Z-Axis Travel: 26"
Spindle Nose: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Tool Magazine Capacity: 60 Position Tool Changer
Maximum Tool Diameter / Length / Weight: NA/ 15.7" / 17.6 lbs
Rapid Traverse Rates: 2,362 IPM
Machine Dimensions LxWxH: 107.1"x165.9"x108"
Machine Weight: 16,750 lbs
