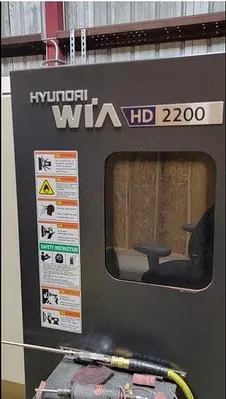

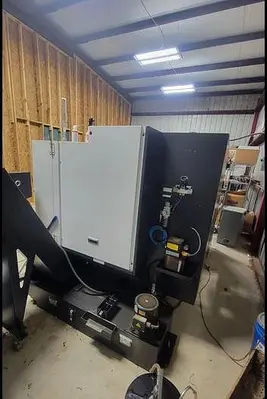

USED 2018 HYUNDAI WIA HD2200
Overview
Description
8" 3 Jaw Hydraulic Chuck
Parts Catcher
Tool Presetter
Chip Conveyor
Tailstock
Rigid Tapping

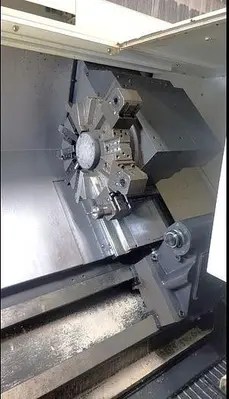

12 Station Servo Driven Turret
Boxed Guideways for Heavy Cutting
Conversational Guide i
45 Degree Slant Bed Design
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface

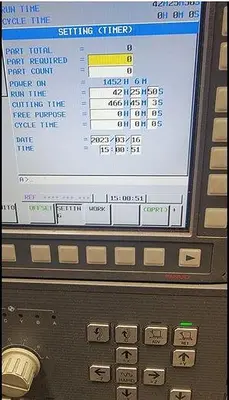

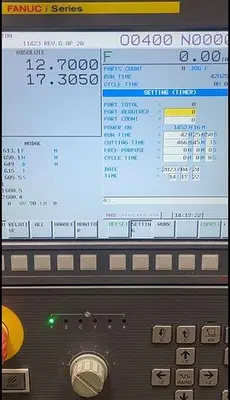

**ONLY 1452 Power On Hours**
**Just 466 Cutting Hours**

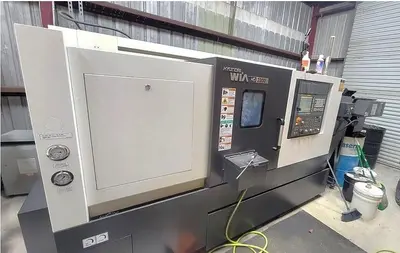

The 2018 Hyundai Wia HD2200 is a reliable CNC lathe designed for precision and efficiency. Equipped with a Fanuc i Series Control, it features an 8" 3-jaw hydraulic chuck, suitable for various industrial applications. The machine accommodates a maximum swing of 21.67 inches and a turning diameter of 15 inches, with a machining length capacity of 22.2 inches.
The lathe is capable of rapid production with spindle speeds reaching 4,000 RPM, driven by a robust 24.8 HP motor. It includes a 12-station turret for tool versatility and supports up to 2.6 inches bar capacity. The efficient X and Z-axis travels of 8.5 and 22.8 inches respectively, along with rapid traverse rates, enhance its operational efficiency.
Additional features include a chip conveyor, parts catcher, and tailstock with quill taper MT #4, ensuring better handling of workpieces. With dimensions of 115" x 65" x 71.7" and a weight of 9,039 lbs (155.8" length with conveyor), this machine is ideally suited for shops seeking a dependable, high-performance turning solution.
Specifications
Machine Control: Fanuc i Series Control
Chuck Size: 8" 3 Jaw Hydraulic Chuck
Maximum Swing: 21.67"
Maximum Turning Diameter: 15"
Maximum Machining Length: 22.2"
Maximum Bar Capacity: 2.6"
X-Axis Travel: 8.5"
Z-axis travel: 22.8"
Spindle Nose / Spindle Bore: A2-6" / 2.99"
Spindle Speeds: 4,000 RPM
Spindle Motor: 24.8 HP
Spindle Torque: 152 ft./lbs.
Number of Tool Positions: 12 Station Turret
Rapid Traverse Rates X / Z: 944 IPM / 1181 IPM
Tailstock Quill Taper / Quill Diameter: MT #4 / 2.6"
Tailstock Travel / Quill Travel: 22.8" / 3.1"
Machine Dimensions: 115" x 65" x 71.7" (155.8" Length with Conveyor included)
Machine Weight: 9,039 lbs
