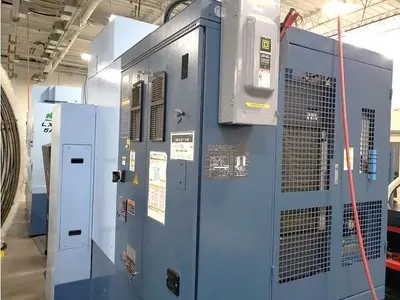

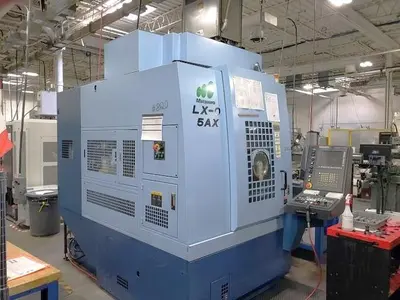

USED 2010 MATSUURA LX-0 5AX
Overview
43,000 RPM Spindle
BT30 Taper Spindle
30 Station Tool Changer
Uses All Linear Motors for High Speed Machining
Some Tooling Included
All Available Manuals
The 2010 Matsuura LX-0 5AX is a high-speed 5-axis CNC vertical machining center designed for precision and efficiency. It features a Matsuura L-Tech Fanuc 30i Control system and offers simultaneous 5-axis machining with maximum part dimensions of 5.9" x 5.9". This machine is equipped with a 43,000 RPM BT 30 spindle taper, providing high-speed operation ideal for intricate, detailed machining tasks.
This VMC offers X, Y, and Z travel of 12.92", 7.87", and 9.84" respectively, providing ample working area for various applications. The B-axis has a movement range from -110 to +10 degrees, while the C-axis allows for full 360-degree rotation. Its rapid traverse rates reach up to 3546 inches per minute, enhancing productivity by minimizing non-cutting time.
The Matsuura LX-0 5AX also comes with a 30-station automatic tool changer, optimizing tool management and reducing manual intervention. It supports a maximum table load of 44 lbs. Although the overall weight of the machine is not specified, its dimensions are 71" x 105" x 110", making it a compact yet powerful option for high-precision manufacturing needs.
Specs

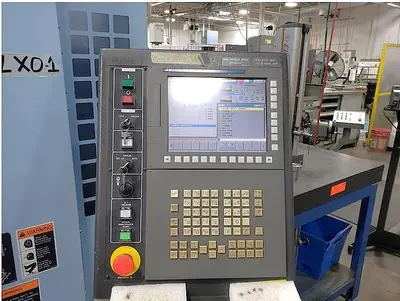

Control: Matsuura L-Tech Fanuc 30i Control
Maximum Part Diameter x Part Height: 5.9" x 5.9"
Maximum Table Load: 44 lbs
X-Axis Travel: 12.92"
Y-Axis Travel: 7.87
Z-Axis Travel: 9.84"
B Axis Movement: -110/+10 Degree
C axis table rotation: 360 Degrees
Spindle Taper: BT #30
Spindle Speed: 43,000 RPM
Spindle Motor: not available
Tool Magazine Capacity: 30 Station Tool Changer
Rapid Traverse Rates: 3546 IPM
Machine Dimensions LxWxH: 71" x 105" x 110"
Machine Weight: not available
