USED 2018 DOOSAN HC400-II

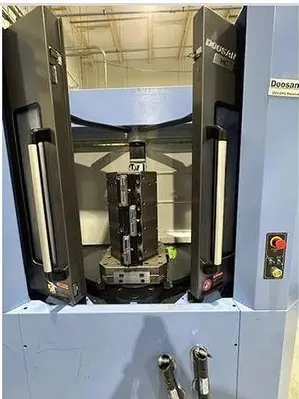

2 Pallet Changer System

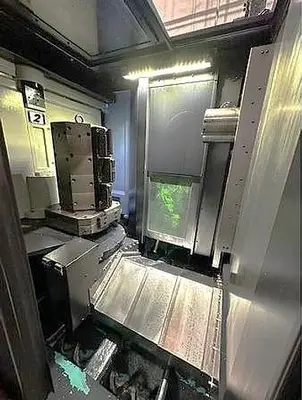

Full 4th Axis Rotary Table

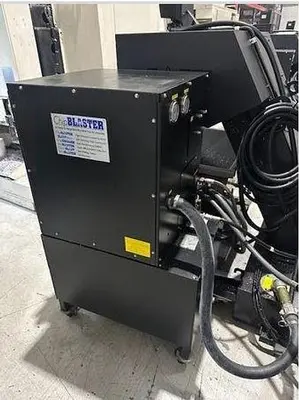

Coolant Through the Spindle
Probing

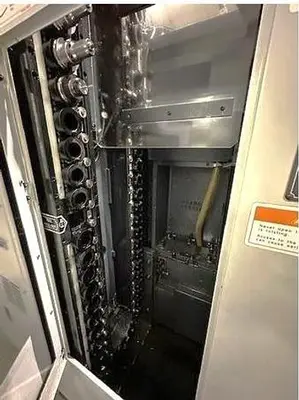

60 Station Tool Changer

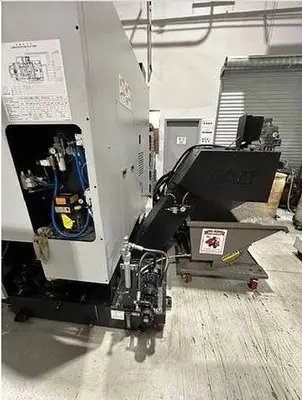

Chip Conveyor
Programmable Coolant
Rigid Tapping
Spindle Orientation
Work Light
Card Interface
RS232 Port Interface

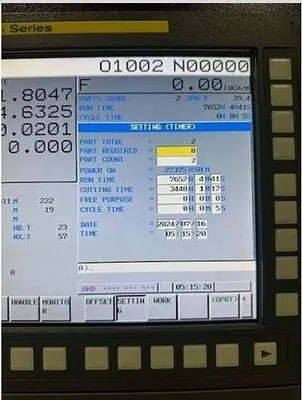

**Machine has 3,440 Cutting Hours**

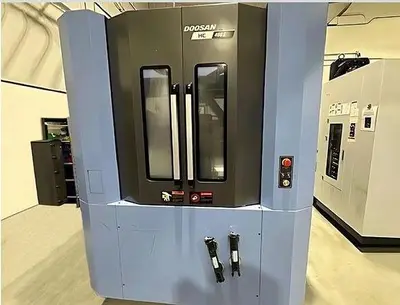

The 2018 Doosan HC400-II is a reliable CNC Horizontal Machining Center featuring a two-pallet changer and a 60-position automatic tool changer. Equipped with a Fanuc i Series Control system, this machine offers precise machine control and efficient operation. Each pallet measures 15.7" x 15.7" and supports a maximum load of 882 lbs. Advanced functionality is provided by the full 4th axis rotary table with .001-degree indexing for enhanced flexibility.

This model boasts substantial travel capabilities with X, Y, and Z-axis traverses of 23.6", 22", and 22.2", respectively, supported by rapid traverse rates of 1575 IPM. Its CAT #40 spindle taper operates at speeds up to 12,000 RPM, powered by a 25 HP direct drive motor, ensuring high performance across diverse machining applications. The integrated coolant through spindle and probing systems contribute to precise and efficient manufacturing processes.

With dimensions of 194" x 90.6" x 105.9" and weighing 26,800 lbs, the Doosan HC400-II is a robust machine designed for demanding environments. This machining center is ideal for shops requiring high productivity and versatility in the manufacturing of complex parts.

Machine Control: Fanuc i Series Control
Pallet Size / Number of Pallets: 15.7" x 15.7" / 2 Pallets
Maximum Table Load: 882 lbs.
Pallet Indexing: .001 Degree Full 4th Axis
Maximum Workpiece Size D x H: 23.6" x 31.5"
X-Axis Travel: 23.6"
Y-Axis Travel: 22"
Z-Axis Travel: 22.2"
Spindle Taper: CAT #40
Spindle Speeds: 12,000 RPM
Spindle Motor: 25 HP - Direct Drive
Number of Tool Positions: 60 Station Tool Changer
Rapid Traverse Rates: 1575 IPM
Cutting Feedrates: 1575 IPM
Machine Dimensions: 194" x 90.6" x 105.9"
Machine Weight: 26,800 lbs.
