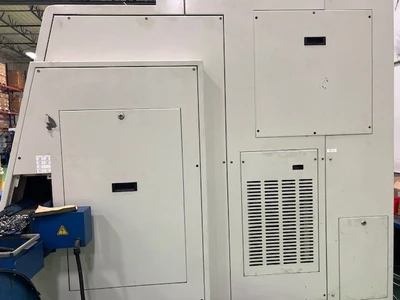

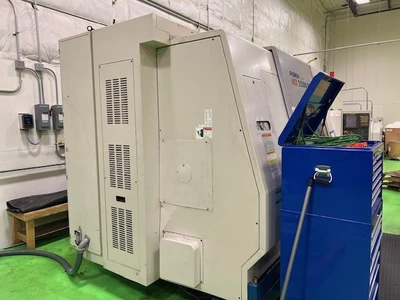

USED 2006 DOOSAN PUMA MX2500ST

9-Axis Capability

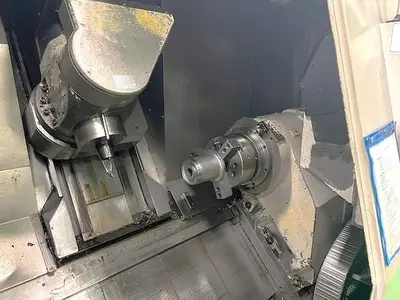

Pendulum Style B-Axis Head
Live Milling Capability on Upper Head
Y-Axis Capability on Upper Head
Sub Spindle
10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle
40 Station Tool Changer Magazine

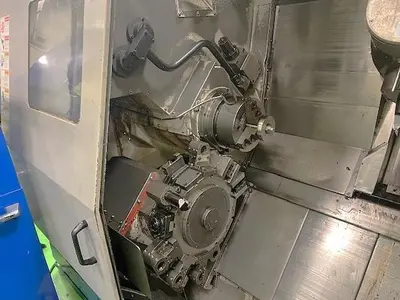

12 Station Lower Turret with All Locations Capable of Live -
Automatic Tool Eye
Chip Conveyor
Parts Exit Conveyor System
Complete Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface
All Available Manuals
All Available Tooling

**Run Time Hours Upper Turret 5,851**
**Run Time Hours Lower Turret 445**

**Machine is in need of having B axis mill drive spindle rebuilt at estimated cost of $25,000**

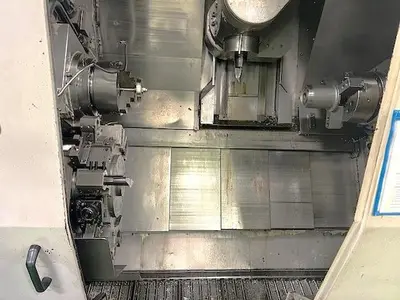

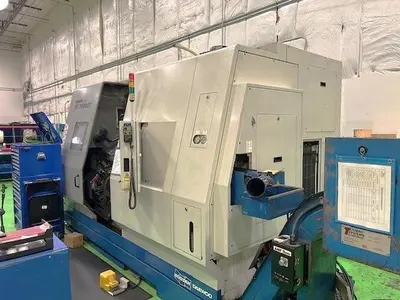

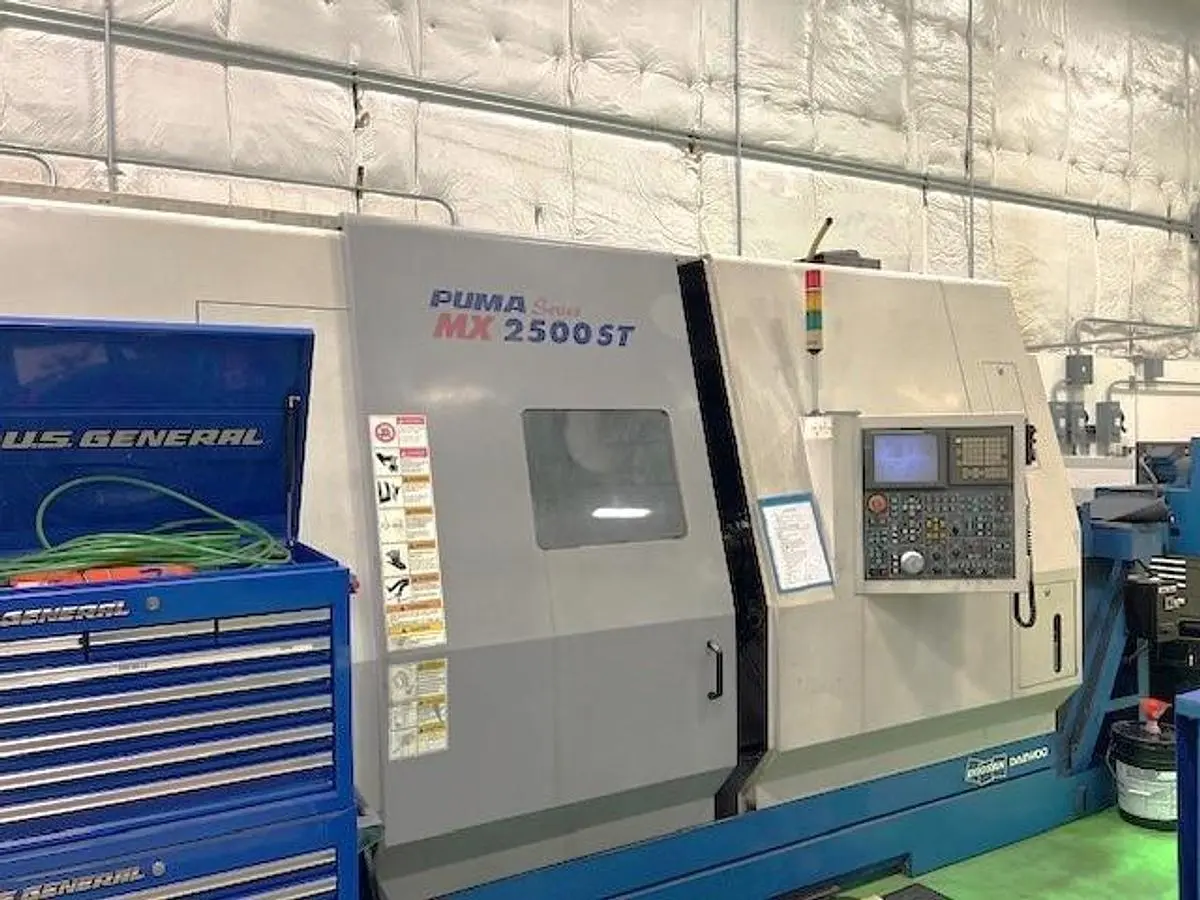

The 2006 Doosan Puma MX2500ST 9 Axis Mill/Turn Center is an advanced CNC lathe designed for precision and versatility. This used machine integrates a pendulum B axis head with milling capabilities, a Y axis, subspindle, and a lower turret, offering enhanced multitasking operations. It operates on the reliable Fanuc 18i-TB Control, which is known for its intuitive user interface and robust performance.

This model features dual chuck sizes with a 10" 3-jaw chuck on the main and an 8" 3-jaw chuck on the subspindle, providing flexibility for different workpieces. With a maximum swing of 29.5 inches, the Puma MX2500ST can accommodate sizable projects. Its maximum turning diameter is 9.84 inches and it supports a turning length of up to 40.2 inches, making it suitable for both short-run and extensive production needs.

The machine includes a tool magazine with a 40-position automatic tool changer (ATC) and supports high-speed operations with the main spindle reaching 5,000 RPM and the milling spindle at 10,000 RPM. With a 35 HP main spindle motor, rapid traverse rates up to 1417 inches per minute, and a sturdy construction weighing 28,500 lbs, this mill/turn center ensures efficient performance and durability in demanding applications.

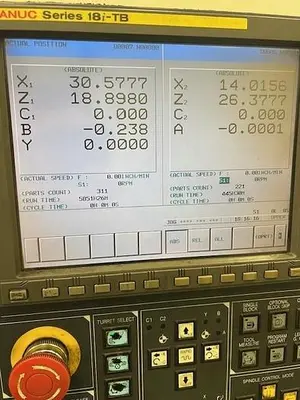

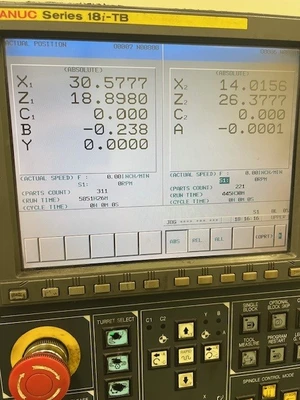

Machine Control: Fanuc 18i-TB Control
Chuck Sizes Main / Subspindle: 10" 3 Jaw / 8" 3 Jaw
C-Axis Rotation: .001 Degrees Main & Subspindle
Maximum Swing: 29.5"
Maximum Swing over Bed: 29.5"
Maximum Turning Diameter: 9.84"
Maximum Turning Length: 40.2"
X-axis travel: 21.9"
Z-Axis Travel: 43.1"
Y-Axis Travel: 6.3" Head Travel
Spindle Nose / Bore / Bar Capacity: A2-8" / 2.99" / 2.6"
Main Spindle Speed / Sub Spindle Speed: 5,000 RPM / 4,000 RPM
Milling Spindle Speed: 10,000 RPM
Main Spindle Motor / Sub Spindle Motor: 35 HP / NA
Tool Magazine Capacity: 40 Position ATC - Capto C6
Lower Turret Tools Position: 12 Position Turret - HSK E-25 Type
Rapid Traverse Rates X, Y / Z: 1417 ipm, 1024 ipm / 1417 ipm
Machine Dimensions LxWxH: 178"x91"x102"
Machine Weight: 28,500 lbs
