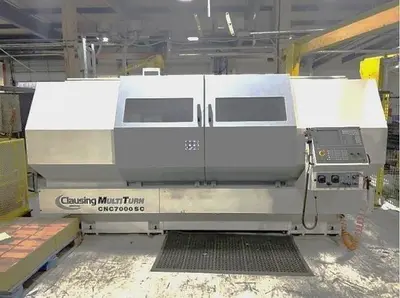

USED 2020 CLAUSING MULTI TURN CNC7000SC

ONLY 15 HOURS ! - 60" Centers. Clausing Colchester/Harrison CNC Teach Lathes with Siemens 828D Control with SINUMERIK CNC programming language. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. The ability to operate the machine manual or full CNC machine makes it exceptional for toolrooms, R&D facilities, maintenance shops, and small production jobs.The 828 control is equipped with a full QWERTY CNC keyboard with short-stroke keys and a high resolution 10.4” color display. Control is extremely easy to operate. Equipped with USB, CF card and RJ45 interfaces at the operator panel CNC data can be quickly, and easily transferred. Precision Siemens drives compute with high-performance 80-bit NANO accuracy. This eliminates rounding errors and results in an extremely high internal computational accuracy in the complete controller circuit. Nodding compensation is used to compensate dynamic position deviations that occur when machine axes accelerate. This improves machining quality, and at the same time, allows higher jerk and acceleration values to be reached.

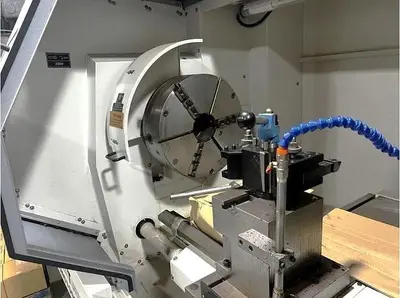

21" 3 Jaw Manual Chuck
CNC Teach Type Conversational Programming
Electronic Hand Wheels

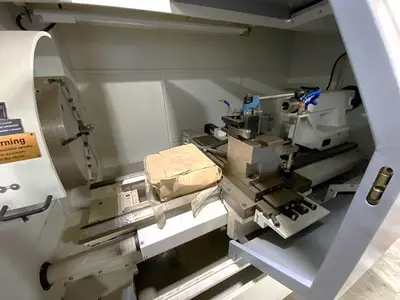

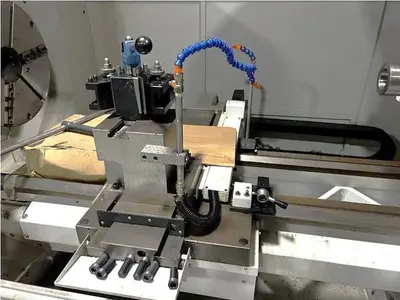

4 Sided Quick Change Tool Post
Remote Jog Handle
Roll Out Chip Removal Drawer
Complete Coolant System with Tank & Pump
Digital AC Servo Drive System
3 Range Geared Headstock
Acceleration w/ Jerk Limiting
Dynamic Servo Control in Drives
Advanced Position Control
Tool Lifetime Monitoring
Measuring System and Spindle Pitch Compensation
Friction Compensation
Motion Synchronized Actions
Asynchronous Subprograms
Sinumerik CNC Programming Language with High Level Language Elements
10 MB User Memory
Work Light
DXF Reader
Program Guide
Technology Cycle for Turning
Shop Turn Machining Step Programming
CNC Simulation for Turning
Context Sensitive On Board Help System
On Board Signal Bus and Network Diagnostics
On Board Maintenance and Service Tools
Work Zone Limiting
Nodding Compensation
USB Port Interface
CF Card Interface
RS 232 Port Interface

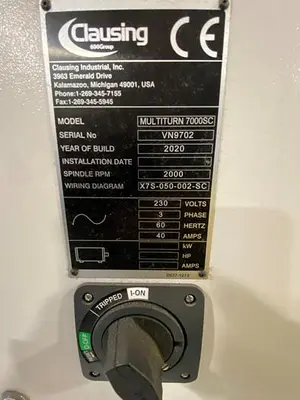

Wired 230/460V Electrics
Variable AC Spindle Drive
10.4" High Resolution Color Monitor
All Available Manuals

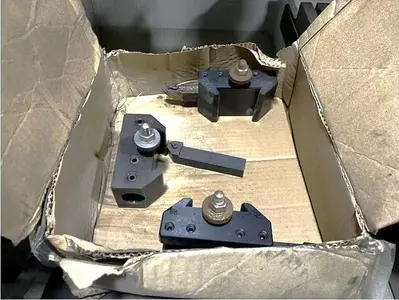

All Available Tooling

**ONLY 15 Hours of Use, Never Put Into Production**
**Price New as Equipped at over $140,000**

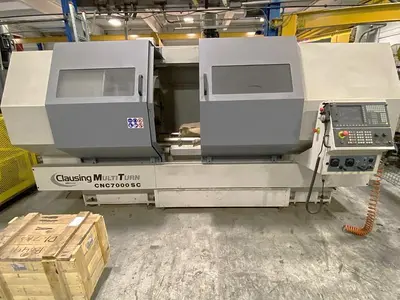

The 2020 Clausing Multi Turn CNC7000SC Lathe is a high-performance machine designed for efficiency and precision. Equipped with a Siemens Sinumerik 828D CNC Control, it provides intuitive operation for improved productivity. This lathe boasts a substantial 21" 3-jaw chuck and accommodates a 4" bar capacity, catering to a variety of machining tasks.

With a maximum swing over the bed of 32", and 43.7" in the gap, it offers flexibility for handling larger workpieces. The spindle, driven by a 25 HP motor with three speeds, allows infinitely variable speeds ranging between 26 and 2,000 RPM. The robust bed width of 18.9" and a distance of 60" between centers ensure stability and support during operations.

Additional features include rapid traverse rates of 315 IPM and 394 IPM in the X and Z axes, respectively, and a 4-sided quick-change tool post for efficient tooling changes. The tailstock supports with a quill diameter of 4.125" and a travel of 12", incorporating a #6 MT taper. The machine is compact for its capabilities, occupying a floor space of 165" x 88" x 88" and weighing 9,921 lbs., making it suitable for a range of industrial environments.

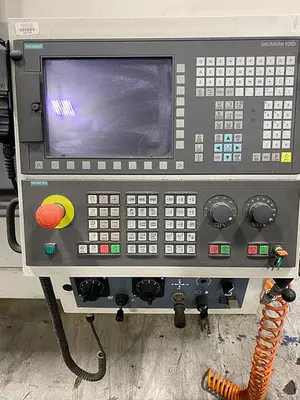

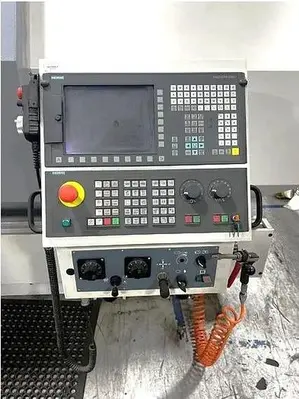

Machine Control: Siemens Sinumerik 828D CNC Control
Chuck Size: 21" 3 Jaw Chuck
Maximum Swing over Bed: 32"
Swing in Gap: 43.7"
Maximum Swing Over Cross Slide: 24"
Distance Between Centers: 60"
Bed Width: 18.9"
Spindle Nose / Bore / Bar Capacity: D1-11" / 4.09" / 4.09"
Spindle Motor: 25 HP - 3 Speeds
Spindle Speeds: 26 - 2,000 RPM Infinitely Variable
Number of Tool Positions: 4 Sided Quick Change Tool Post
Rapid Traverse Rates X/Z: 315 IPM / 394 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 4.125" / 12" / #6 MT
Floor Space Required: 165" x 88" x 88"
Machine Weight: 9,921 lbs.
