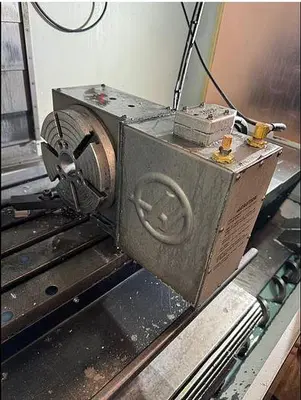

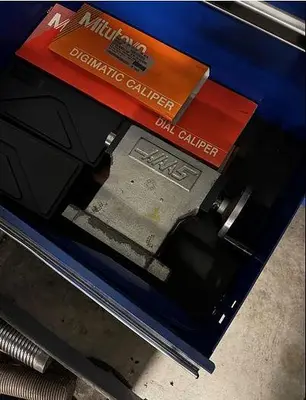

Haas HRT-210 Rotary Table with Tailstock
4th Axis Drive & Wiring

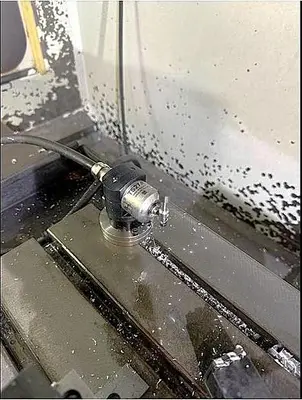

Haas Wireless Probing with Renishaw OMP40 Part Probe and Renishaw TS27 Tool Probe
10,000 RPM Spindle
2 Speed Gearbox

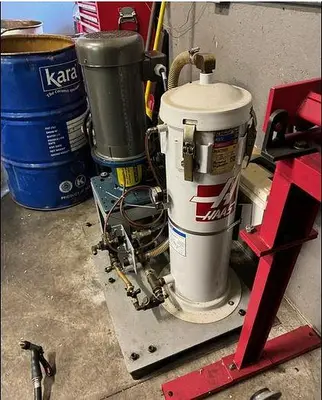

Coolant Through the Spindle

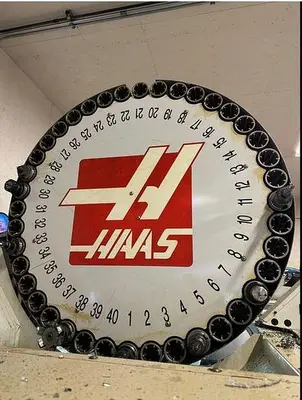

40 Station Side Mounted Tool Change

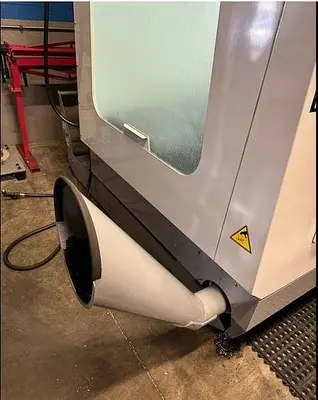

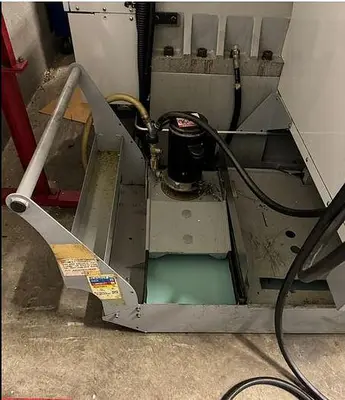

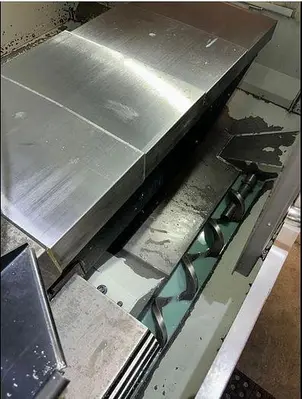

Auger Style Chip Conveyor
Programmable Coolant Nozzle
1 MB Program Storage
Visual Quick Code Programming
Spindle Orientation
Coordinate Rotation & Scaling
Remote Jog Handle
User Definable Macros
Rigid Tapping
3.5" Floppy Disk Drive Interface
RS 232 Port Interface

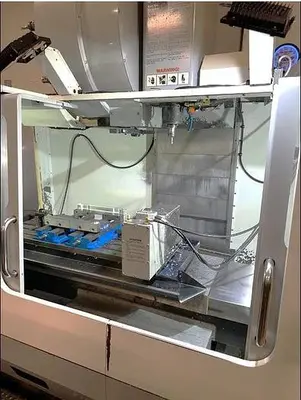

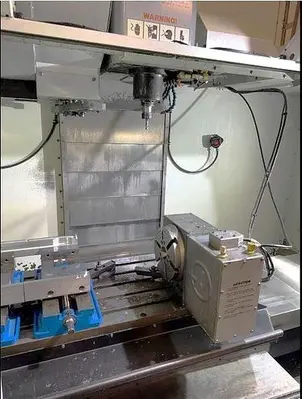

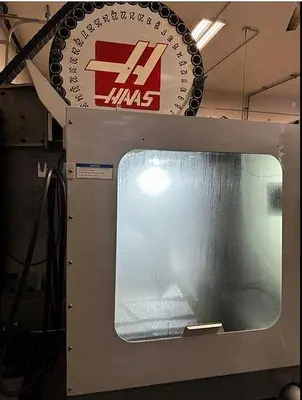

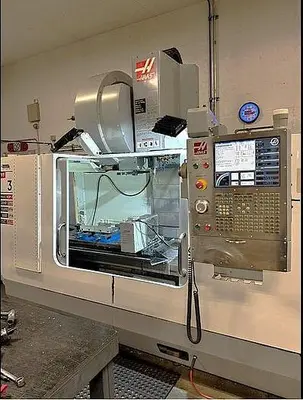

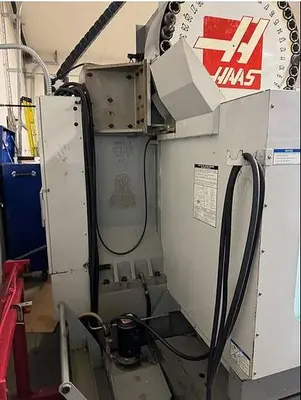

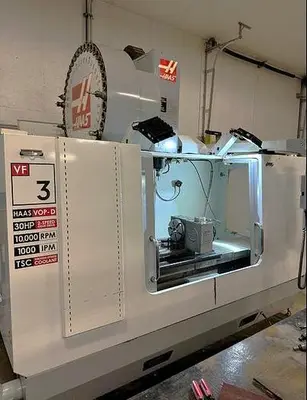

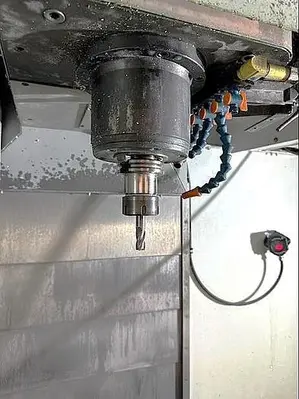

The 2007 Haas VF3B is a reliable used CNC vertical machining center, ideal for various industrial applications. This model comes equipped with a Haas HRT210 rotary table, offering enhanced flexibility in machining operations. Its table size measures 48" x 18" and can handle a maximum load of up to 3,500 lbs.

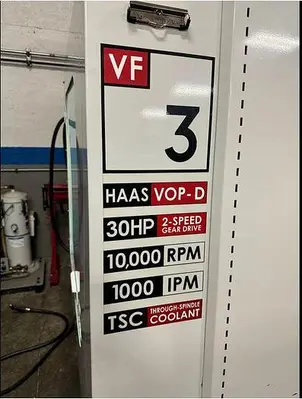

This machine features a spacious travel capacity with X, Y, and Z axes measuring 40", 20", and 25" respectively, and a spindle nose to table top distance ranging from 4" to 29". The machine is powered by a robust 30 HP spindle motor with a speed capability of up to 10,000 RPM via a 2-speed geared system. The VF3B uses a CAT 40 spindle taper and includes a 40 station side-mounted automatic tool changer.
Notably, the machine is well-equipped with a coolant through spindle and a probing package to enhance efficiency and precision. It also boasts rapid traverse rates of 1000 IPM. With its dimensions at 118"x98"x118" and a weight of 12,500 lbs, the VF3B is a solid choice for businesses seeking a high-performance machining center with versatile capabilities.
Table Size: 48" x 18"
Maximum Table Load: 3,500 lbs
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Distance Spindle Nose to Table Top: 4"-29"
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM - 2 Speed Geared
Tool Magazine Capcity: 40 Station Side Mounted ATC
Rapid Traverse Rates: 1000 IPM
Maximum Tool Diameter / Length / Weight: 3.5" / 13" / 12 lbs
Machine Dimensions LxWxH: 118"x98"x118"
Machine Weight: 12,500 lbs
