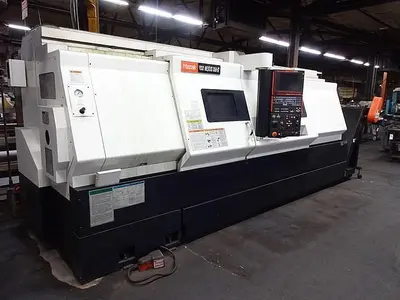

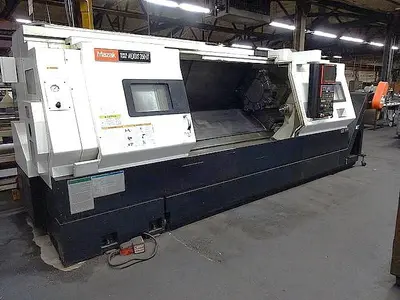

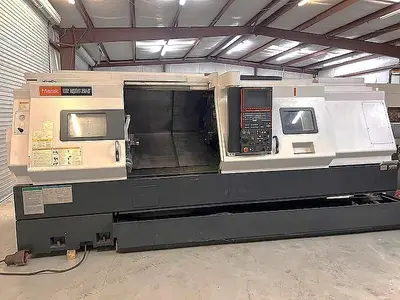

USED 2012 MAZAK NEXUS QTN 350-II/2000

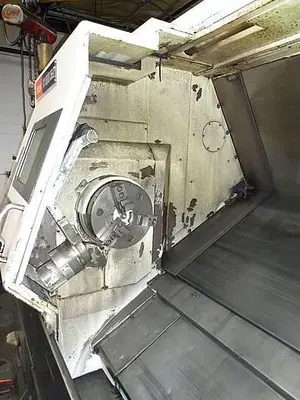

12" Diameter 3-Jaw Hydraulic Chuck with 4" Bar Capacity
Automatic Tool Eye
Chip Conveyor
80" Between Centers
Programmable High Power Coolant - 59 PSI

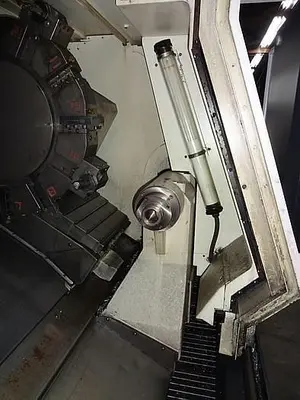

Programmable Tailstock
EIA/ISO Input Function
12.1" Color LCD Monitor
USB (2 Port) Port Interface
LAN Port Interface
RS 232 Port Interface
Operator Door Interlock
Hydraulic Pressure Interlock
Absolute Positioning System
Windows XP Based Operating System
Multi Tap Transformer
All Available Manuals

**10,459 Auto Operation Hours**
**8,607 Total Cutting Hours**

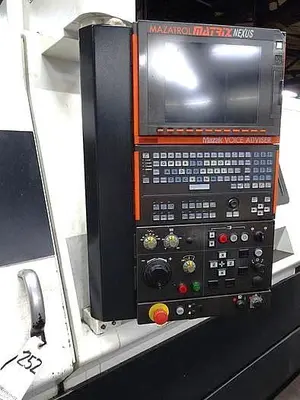

Machine Control: Mazatrol Matrix Nexus Control
Chuck Size: 12" 3-Jaw Hydraulic
Maximum Swing: 26.77"
Maximum machining diameter: 16.54"
Maximum Cutting Length: 81.1"
X-Axis Travel: 8.85"
Z-Axis Travel: 79.13"
Spindle Nose / Bore / Bar Capacity: A2-11" / 4.4" / 4"
Spindle Speed: 3,300 RPM
Spindle Motor: 40 HP

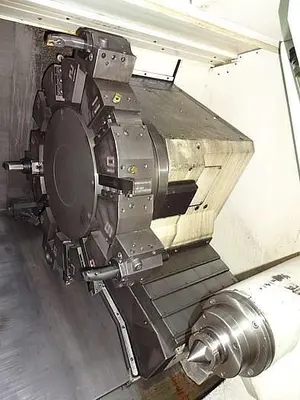

Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X/Z: 1,181 IPM / 984 IPM
Tailstock Center: #5 MT
Machine Dimensions LxWxH: 180"x820"x79"
Machine Weight: 20,600 lbs
