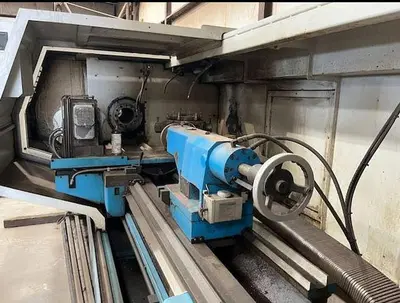

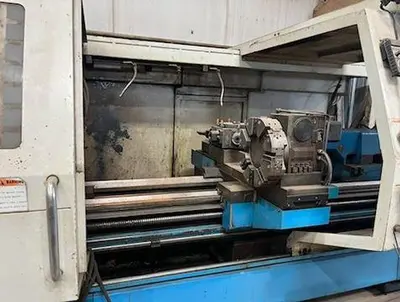

USED 2006 KINGSTON CL-38X2000

24" 4 Jaw Air Chuck
7.3" Bar Capacity
Chip Conveyor
Tailstock
Steady Rest
Remote Jog Handle
RS 232 Port Interface
Coolant System
All Available Manuals
All Available Tool Holders

Machine Control: Fanuc Oi-TC
Chuck Size: 24" 4-Jaw Air Chuck
Maximum Swing: 26"
Maximum Swing Over Cross Slide: 14.6"
Maximum Cutting Diameter: 23.6"
Distance Between Centers: 78"
X-axis travel: 21.6"
Z-Axis Travel: 76.8"
Spindle Speeds: 3 - 2,000 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-11"
Spindle Bore: 7.3"
Number of Turrets: 2 Turrets
Number of Turret Positions: 8 Vertical Front / 6 Horizontal Rear
Rapid Traverse Rates: 394 ipm
Tailstock Quill Diameter / Quill Travel / Taper: 5.9" / 8.6" / #5 MT
Machine Dimensions LxWxH: 273"x91"x79"
Machine Weight: 17,857 lbs
