20 Station Side Mounted Tool Changer
Flood Coolant System
Machine Status Condition Lights
USB Port Interface
RS-232 Interface
Available Manuals
**Was upgraded to WinMax, and the spindle was replaced not too long ago**

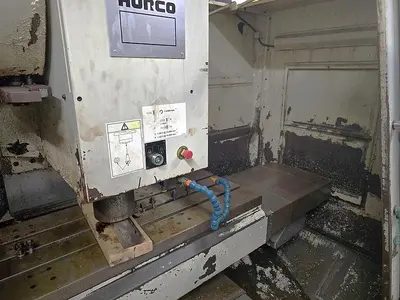

The 2008 Hurco VM-3 is a reliable used CNC vertical machining center, ideal for various 3-axis machining tasks. It is operated by the Hurco Max Control, ensuring efficient and precise operations. This machine features a spindle speed of up to 10,000 rpm and uses a CAT 40 spindle taper driven by a powerful 20 HP motor.
The work table measures 52" x 20" and can handle loads up to 2,000 lbs, providing flexibility for handling larger workpieces. The VM-3 offers substantial travel dimensions with 50" on the X-axis, 20" on the Y-axis, and 20" on the Z-axis, accommodating a wide range of production requirements. Additionally, it includes a 20-position side-mounted automatic tool changer, streamlining the tool switching process.
With maximum rapid traverse rates of 944 inches per minute, the Hurco VM-3 can deliver significant productivity increases. Despite its robust performance capabilities, the machine maintains a compact footprint, with dimensions of 160.9" x 112.6" x 100.1" and a weight of 9,339 lbs, making it a solid choice for facilities looking for both performance and efficiency in a versatile machining center.

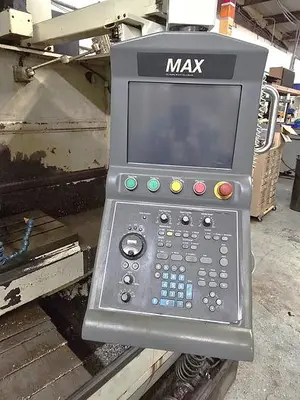

Machine Control: Hurco Max Control

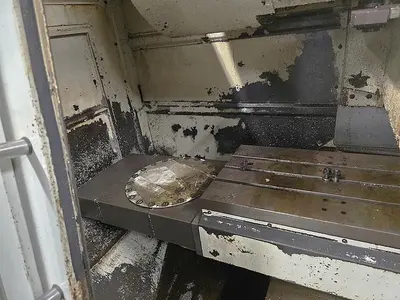

Table Size: 52" x 20"
Maximum Table Load: 2,000 lbs
X-Axis Travel: 50"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle Speeds: 10,000 rpm
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Tool Magazine Capacity: 20 Position Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 4.7" / 11.8" / 15 lbs.
Rapid Traverse Rates: 944 ipm
Machine Dimensions LxWxH: 160.9"x112.6"x100.1"
Machine Weight: 9,339 lbs.
