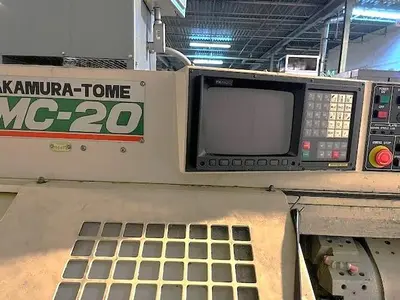

USED 1986 NAKAMURA TOME TMC-20 2 AXIS LATHE

8" 3 Jaw Hydraulic Chuck
Collet Chuck
Tailstock - Manual Type
Complete Coolant System
Machine Status Condition Lights
RS 232 Port Interface
All Available Tooling
All Available Manuals

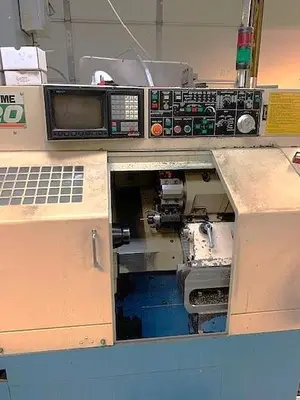

The 1986 Nakamura Tome TMC-20 is a reliable 2-axis CNC lathe designed for precision and efficiency in small to medium-sized machining tasks. It features a Fanuc 10T Control system for intuitive operation and precise control. This used lathe comes equipped with a 6-inch 3-Jaw Hydraulic Chuck, supporting versatility in handling different workpieces.

The TMC-20 offers a maximum swing of 15.7 inches and can handle a maximum turning diameter of 9.82 inches, with a cutting length extending up to 19.6 inches. Its spindle, with an A2-5 nose, has a bore of 2.04 inches and a bar capacity of 1.65 inches, while capable of reaching speeds up to 4,500 rpm driven by a 12 HP motor. This machine is built to facilitate rapid processing with traverse rates of 470 inches per minute on the X-axis and 945 inches per minute on the Z-axis.

With an 8-position turret, the machine provides flexibility in tool changes, enhancing productivity. Its compact dimensions of 75" x 48" x 67" and weight of 6,000 lbs allow for easy integration into various workshop settings. This lathe is an ideal solution for shops seeking a dependable, accurate machine for diverse turning applications.

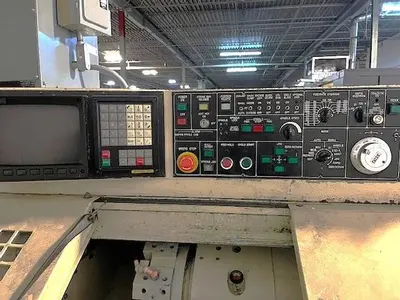

Machine Control: Fanuc 10T Control
Chuck Size: 6" 3-Jaw Hydraulic
Maximum Swing: 15.7"
Maximum Turning Diameter: 9.82"
Maximum Cutting Length: 19.6"
Spindle Nose / Bore / Bar Capacity: A2-5" / 2.04" / 1.65"
Spindle Speed: 4,500 rpm
Spindle Motor: 12 HP
Rapid Traverse Rates X / Z: 470 ipm / 945 ipm

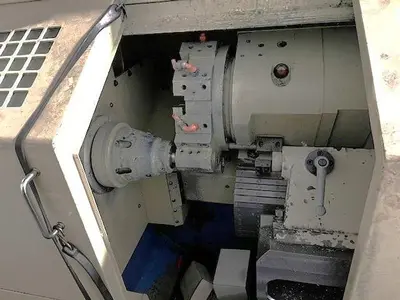

Number of Turret Positions: 8 Position Turret
Machine Dimensions LxWxH: 75"x48"x67"
Machine Weight: 6,000 lbs
