10 Station Tool Changer
Rigid Tapping
Manual Hand Wheels
Fold Down Coolant Splash Guarding
Brushless Servos All Axis'

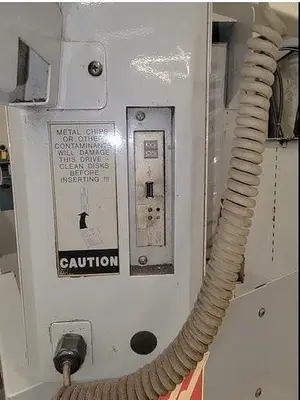

USB Port Interface Conversion from 3.5" Floppy Disk Drive
RS 232 Port Interface
Machine Can Be Wired at Either Single or Three Phase Power
**Machine Servo On Hours 10,552**
**Motion Hours 9,201**
**Spindle Hours 7,912**
**Machine does NOT include the coolant tank with pump option**

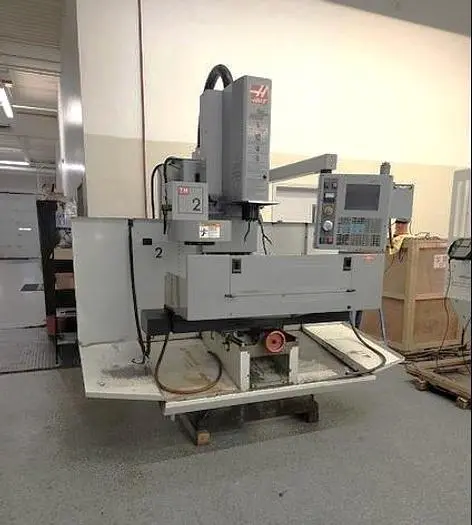

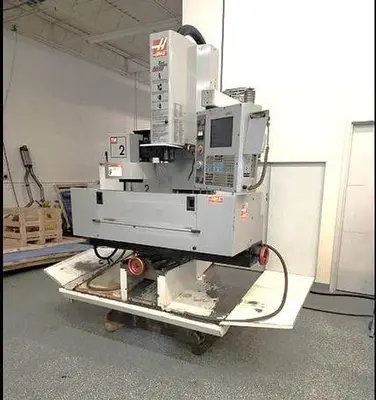

The 2004 Haas TM-2 is a reliable CNC Vertical Machining Center classified as a 3-Axis VMC, designed for a variety of machining tasks. This particular machine features a Haas CNC Control system for precise operations. It offers a substantial table size of 57.75" x 10.5", supporting a maximum table load of 1,000 pounds, which is ideal for handling a wide range of parts and materials.
The TM-2 has an X-axis travel of 40", Y-axis travel of 16", and Z-axis travel of 16", allowing for flexibility in the size of the workpieces it can accommodate. The spindle on this model boasts a CAT 40 taper with speed capabilities ranging from 0 to 4,000 RPM, powered by a 7.5 HP motor, providing ample power for various machining operations. Additionally, the machine utilizes a 10 Station Umbrella Style ATC with a rapid tool change time of 5.7 seconds, enhancing productivity.
With rapid traverse rates of 200 inches per minute and a compact footprint of 100" x 64" x 86", the Haas TM-2 is well-suited for shops needing efficient performance without occupying excessive space. Its total weight is 4,000 pounds, making it a sturdy and stable option for precision manufacturing tasks. This used unit from 2004 remains a solid choice for those seeking a dependable machine with proven capability.

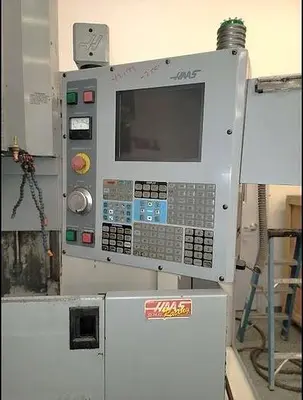

Control: Haas CNC Control

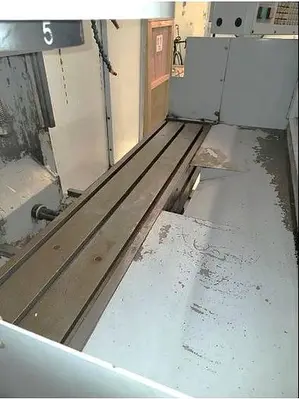

Table Size: 57.75"x10.5"
Maximum Table Load: 1,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Distance Spindle Nose to Table Top: 4"-20"
Spindle Taper: CAT 40
Spindle Speeds: 0-4,000 RPM
Spindle Motor: 7.5 HP

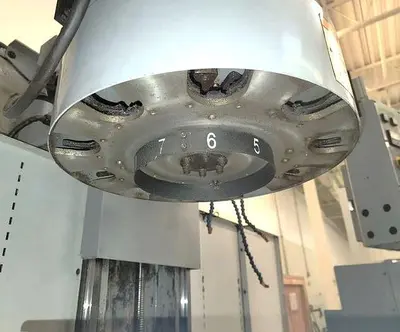

Tool Magazine Capacity: 10 Station Umbrella Style ATC
Maximum Tool Diameter / Length / Weight: 3.5"/NA/12 lbs
Tool Change Time Chip to Chip: 5.7 Seconds
Rapid Traverse Rates: 200 ipm
Machine Dimensions LxWxH: 100"x64"x86"
Machine Weight: 4,000 lbs
