20 Station Umbrella Type Tool Changer
Rigid Tapping
Manual Hand Wheels
Fold Down Coolant Splash Guarding
Coolant System with Tank & Pump
Brushless Servos All Axis'
USB Port Interface
RS 232 Port Interface
Machine Can Be Wired at Either Single or Three Phase Power
**Cycle Start Hours 9,138**
**Feed Cutting Hours 7,517**

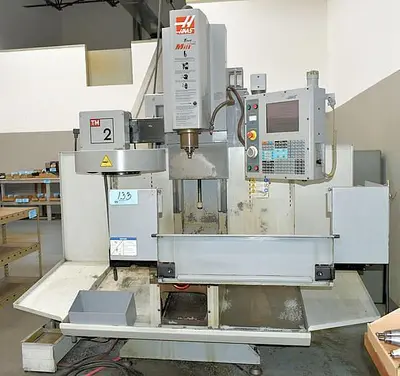

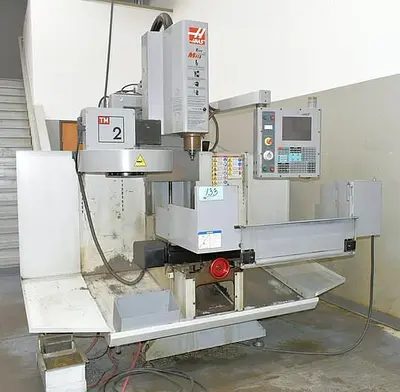

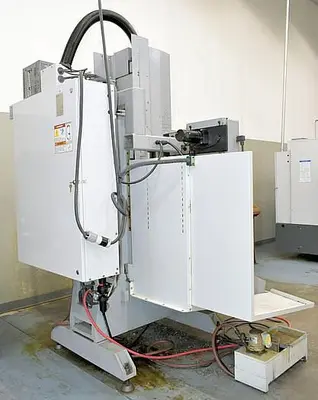

The 2007 Haas TM-2 is a reliable and versatile used CNC vertical machining center designed for precision and efficiency in machining operations. It is equipped with a Haas CNC Control, ensuring easy setup and intuitive operation. The machine offers a substantial table size of 57.75" x 10.5", capable of bearing loads up to 1,000 lbs, making it suitable for a variety of machining tasks.
For movement range, the X-axis travels 40", and both the Y and Z axes travel 16". The spindle, adorned with a CAT 40 taper, delivers speeds ranging from 0 to 4,000 RPM powered by a 7.5 HP motor, ideal for diverse machining applications. The 20-position umbrella-style tool changer supports efficient workflow with a tool change time of just 5.7 seconds.
Additional attributes include maximum tool dimensions accommodating diameters up to 3.5", rapid traverse rates of 200 IPM, and robust construction with an approximate weight of 4,000 lbs. The machine fits comfortably within a floor space of 100" x 64" x 86", making it an excellent addition to medium-sized workshops.
Control: Haas CNC Control

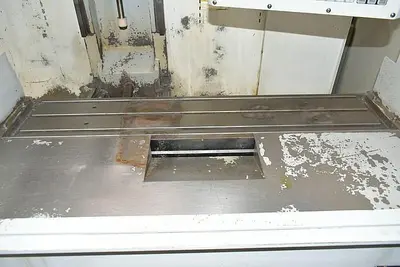

Table Size: 57.75"x10.5"
Maximum Table Load: 1,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Distance Spindle Nose to Table Top: 4"-20"
Spindle Taper: CAT 40
Spindle Speeds: 0 - 4,000 RPM
Spindle Motor: 7.5 HP

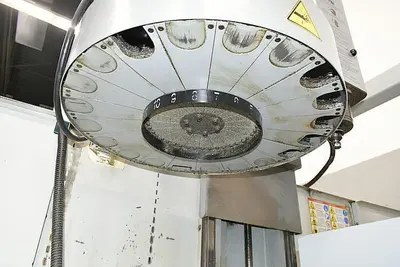

Tool Magazine Capacity: 20 Position Umbrella Style Tool Changer
Maximum Tool Diameter / Length / Weight: 3.5"/NA/12 lbs
Tool Change Time Chip to Chip: 5.7 Seconds
Rapid Traverse Rates: 200 IPM
Machine Dimensions LxWxH: 100"x64"x86"
Machine Weight: 4,000 lbs
