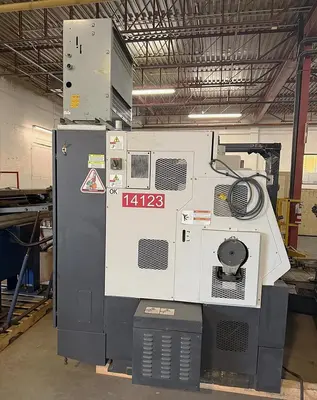

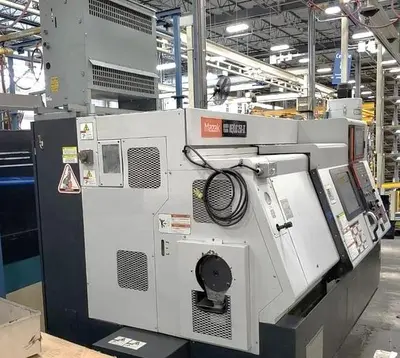

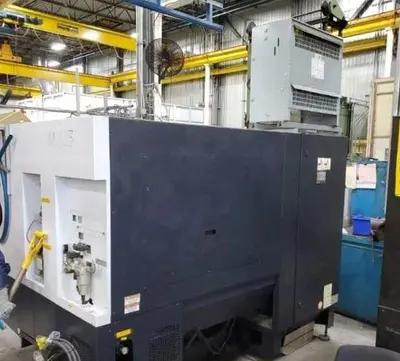

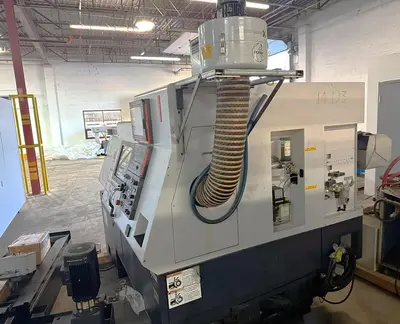

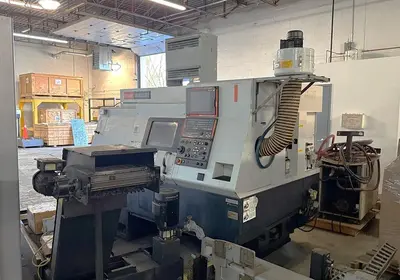

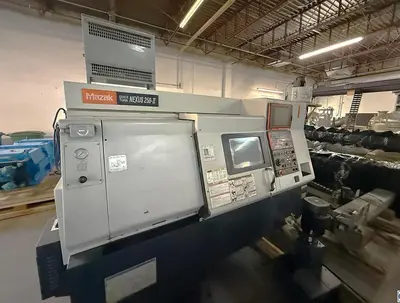

USED 2009 MAZAK NEXUS QTN 250-II

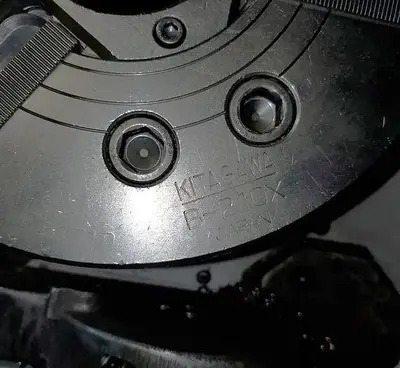

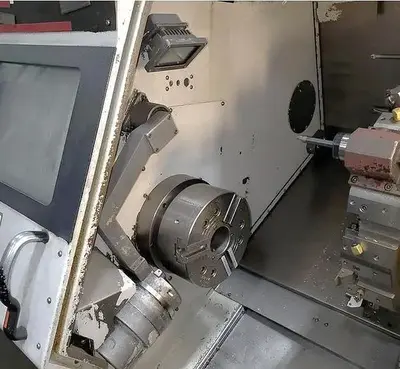

10" 3 Jaw Kitagawa B-210X Hydraulic Chuck

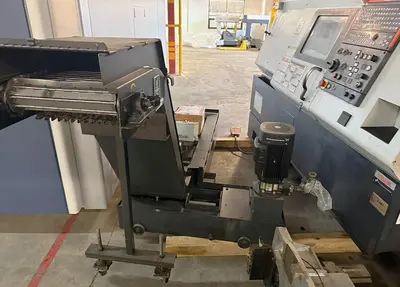

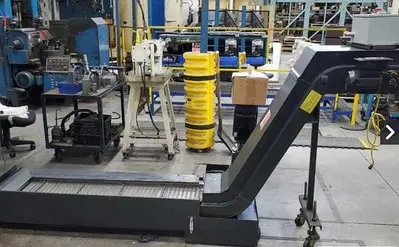

Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
EIA/ISO Input Function
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface

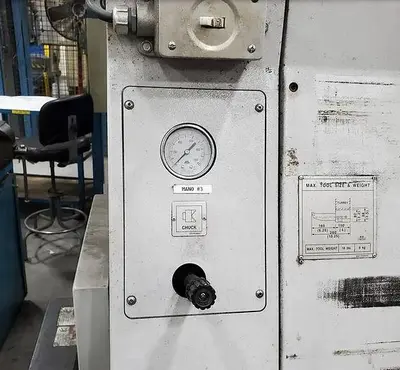

Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model

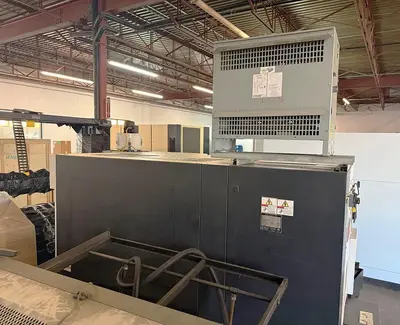

Multi-Tap Transformer 600V / 45 KvA
Coolant Tank with Pump
All Available Manuals

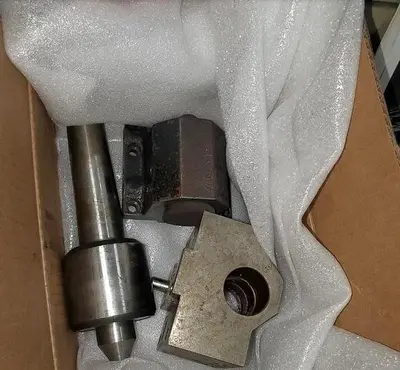

All Available Tooling

**Auto Operation Hours 9,632**
**Total Cutting Hours 6,799**

The 2009 Mazak Nexus QTN 250-II is a high-performance CNC lathe designed for precision machining tasks. Equipped with the Mazatrol Matrix Nexus Control, this machine provides efficient and user-friendly operation. It features a 10" 3-jaw hydraulic chuck and has a maximum swing of 24", accommodating a wide range of components. With a maximum cutting diameter of 14" and a machining length of 18.7", it offers versatility for various production needs.

The machine's spindle, supported by a powerful 35 HP motor, can reach speeds of up to 4,000 RPM, ensuring high-speed and efficient machining. Its robust design includes a spindle nose of A2-8" with a bore and bar capacity of 3.46" and 3.0" respectively. The 12-position drum turret enhances productivity by allowing quick changeovers between tools. Rapid traverse rates of 1181 IPM on the X-axis and 1299 IPM on the Z-axis contribute to reduced cycle times.

With dimensions of 108" x 80" x 76" and a considerable weight of 11,000 lbs., this used machine is ideally suited for industrial environments that demand durable CNC lathe solutions. It also includes a tailstock with a body travel of 20.625" and an MT#5 center for additional support when machining longer parts. The Nexus QTN 250-II meets the demands of modern manufacturing with its mix of precision, power, and reliability.

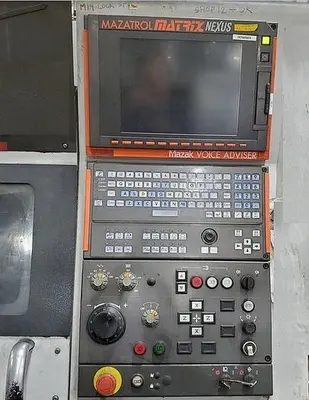

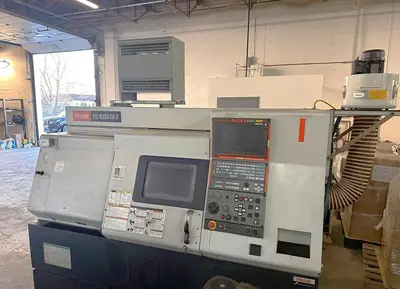

Control: Mazatrol Matrix Nexus Control
Chuck Size: 10" 3-Jaw Hydraulic
Maximum Swing: 24"
Maximum Cutting Diameter: 14"
Maximum Machining Length: 18.7"
X-Axis Travel: 7.5"
Z-Axis Travel: 20.25"
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.46" / 3.0"
Spindle Speeds: 4,000 RPM
Spindle Motor: 35 HP

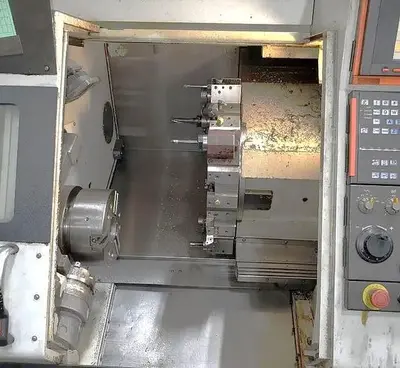

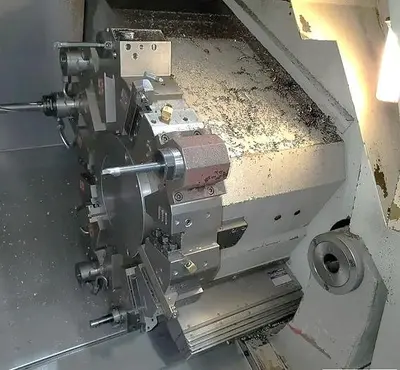

Number of Turret Positions: 12 Position Drum
Rapid Traverse Rates X/Z: 1181 / 1299 IPM
Tailstock Body Travel / Center: 20.625" / MT#5
Machine Dimensions LxWxH: 108" x 80" x 76"
Machine Weight: 11,000 lbs.
