USED 2017 YAMA SEIKI GTW-1500Y MULTI AXIS LATHE

Y Axis Capability
Subspindle
Full C Axis Spindle Rotation Both
Live Milling / Drilling Capability
12 Station Turret
8 Station Gang Style Tool Slide
6" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye

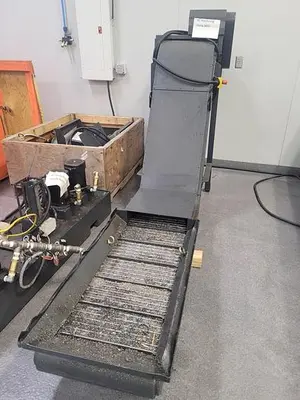

Chip Conveyor
Parts Catcher
Parts Conveyor

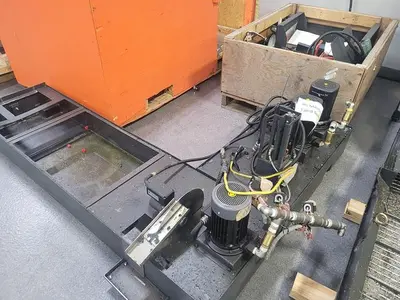

High Pressure Coolant System
Prepped for a Bar Feed System
USB Port Interface
RS 232 Port Interface
All Available Manuals

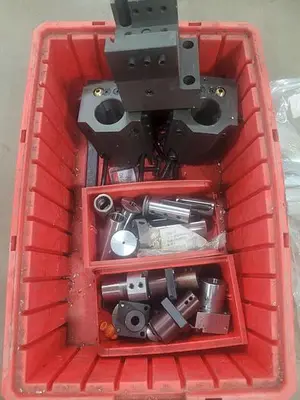

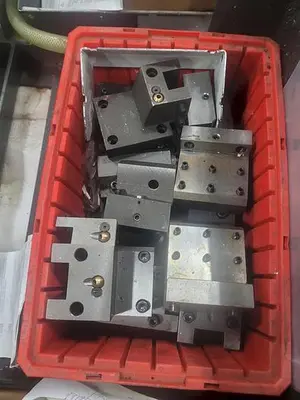

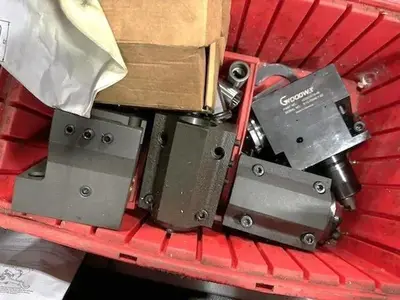

All Available Static/Live Holders

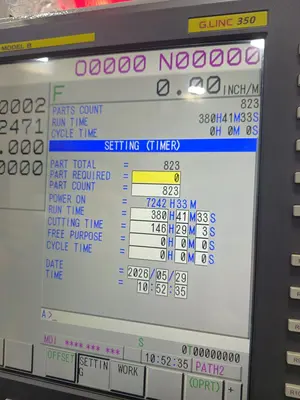

**ONLY 380 RUN TIME HOURS**
**JUST 146 CUT HOURS**

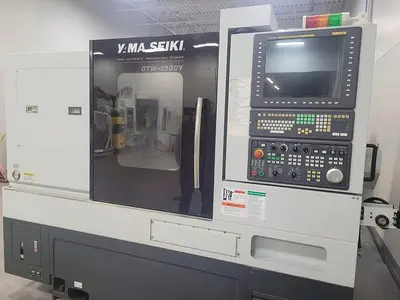

The 2017 Yama Seiki GTW-1500Y is a robust, used multi-axis CNC lathe designed to handle complex machining tasks with precision. It is equipped with a Fanuc 32i-B Series Control, offering advanced capabilities for precise operations. The machine features a main spindle with a 6" hydraulic chuck and a subspindle with a 5" hydraulic chuck, both capable of achieving high speeds, with the main spindle reaching up to 5,000 RPM and the subspindle up to 6,000 RPM.

This lathe provides a maximum swing of 15.7" and a maximum cutting diameter of 9.8", with the ability to handle workpieces up to 8.2" in length. It offers travel lengths of 10.5" in Z1 and 21.6" in Z2, ensuring flexibility and efficiency in operations. The GTW-1500Y also supports a 12-station turret along with additional gang slide positions, offering versatility in tooling arrangements.

Additionally, this lathe boasts rapid traverse rates up to 1180 IPM in the Z-axis, facilitating quick positioning, and is supported by a powerful 25 HP spindle motor. Measuring 100.2" x 81.3" x 79.4" and weighing approximately 8,820 lbs., it is a substantial machine suited for industrial environments requiring precision and efficiency in metalworking applications.

Control: Fanuc 32i-B Series Control
Chuck Sizes: 6" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle
Maximum Swing: 15.7"
Maximum Cutting Diameter: 9.8"
Maximum Cutting Length: 8.2"
X1 / X2 Axis Travel: 7.1" / 12.2"
Y1 / Y2 Axis Travel: +/- 1.4" / 9.8"
Z1 / Z2 Axis Travel: 10.5" / 21.6"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation: .001 / .001 Degree
Spindle Nose / Spindle Bore / Bar Capacity: A2-5" / 2.4" / 2"
Spindle Speed / Sub Spindle Speed: 5,000 RPM / 6,000 RPM
Spindle Motor / Sub Spindle Motor: 25 HP / 7.4 HP
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 3.3 HP
Number of Turret Positions: 12 Station Turret
Gang Slide Positions: 8 Locations
Gang Tool Slide Live Holder Type / Speed: ER20 Type / 6,000 RPM
Rapid Traverse Rates X1 / X2: 708 IPM / 945 IPM
Rapid Traverse Rates Y1 / Y2: 788 IPM / 945 IPM
Rapid Traverse Rates Z1, Z2: 1180 IPM
Machine Dimensions: 100.2 x 81.3" x 79.4"
Machine Weight: 8,820 lbs. approx.
