USED 1993 MAZAK SQT18MS W/ GL100 GANTRY LOADER

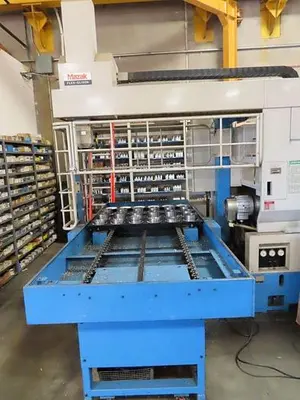

Mazak GL-100N Gantry Loading System
Full "C" Axis Spindle Rotation
Live Milling/Drilling Capability
Subspindle

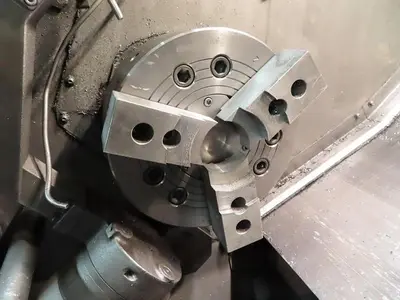

10" Kitagawa B-210 3 Jaw Hydraulic Chuck - Main
6" Hydraulic Chuck - Subspindle
Automatic Tool Eye
RS 232 Port Interface
All Available Tooling
Multi-Tap Transformer

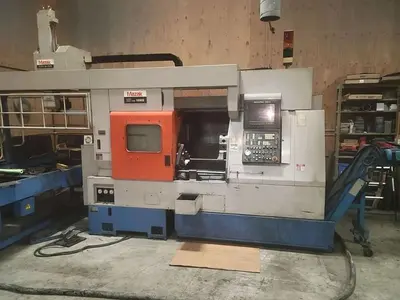

The 1993 Mazak SQT18MS with GL100 Gantry Loader is a robust used CNC lathe that combines precision with efficiency, suitable for various machining tasks. Equipped with the Mazatrol T32-3 Control, it enhances operational efficiency and ease of use. The machine features a 10-inch hydraulic chuck on the main spindle and a 6-inch hydraulic chuck on the subspindle, providing versatility in handling different workpiece sizes.

With a maximum swing of 20.91 inches and a cutting diameter of 11.75 inches, this lathe is well-suited for diverse applications. It offers a turning length of 20.47 inches and accommodates a bar capacity of 2.5 inches. The X-axis, Z-axis, and B-axis travels are 7.125 inches, 22.75 inches, and 23.25 inches, respectively, allowing for precision and flexibility in machining operations. The spindle operates between 35 and 4,000 RPM, driven by a powerful 25 HP motor, while the subspindle reaches speeds up to 5,000 RPM with a 10 HP motor.

For added functionality, the machine includes a 12-station turret and supports rapid traverse rates of 1180 IPM. The dimensions of the machine are 120" x 72" x 88", and it weighs 10,365 lbs, exclusive of the gantry loader. This lathe is designed for high-performance tasks, making it an excellent choice for demanding industrial environments.

Control: Mazatrol T32-3 Control
Chuck Sizes Main / Subspindle: 10" Hydraulic Chuck / 6" Hydraulic Chuck
Maximum Swing: 20.91"
Maximum Swing over Bed: 15.74"
Maximum Cutting Diameter: 11.75"
Maximum Turning Length: 20.47"
Maximum Bar Capacity: 2.5
X-axis travel: 7.125"
Z-Axis Travel: 22.75"
B-Axis Travel (Subspindle): 23.25"
Spindle Nose / Spindle Bore: A2-8" / 2.99"
Spindle Speeds: 35 - 4,000 RPM
Spindle Motor 30 Minutes/Continuous: 25 HP / 20 HP
Subspindle Speed: 180 - 5,000 RPM
Subspindle Motor: 10 HP
Rotary Tool Speed / Rotary Motor: 120 - 3,000 RPM / 5 HP

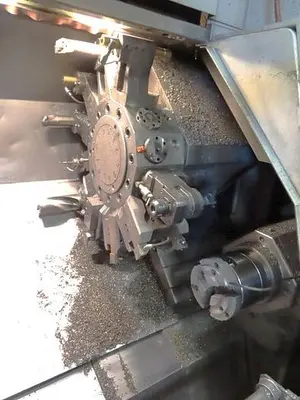

Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates: 1180 IPM
Machine Dimensions: 120" x 72" x 88" (machine only) / Gantry 62" x 108" x 88"
Machine Weight: 10,365 lbs. (machine only)
