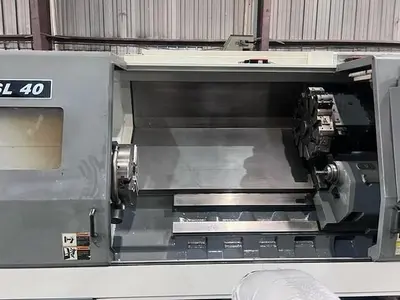

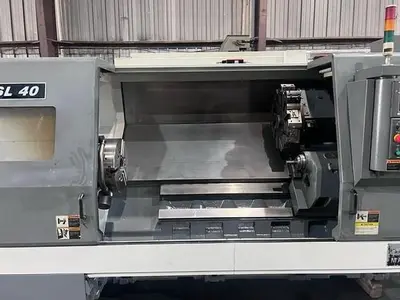

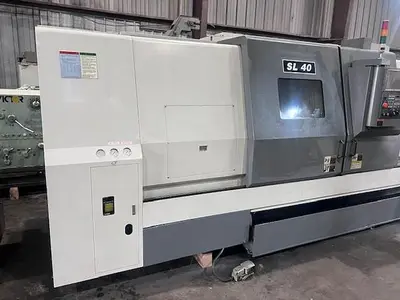

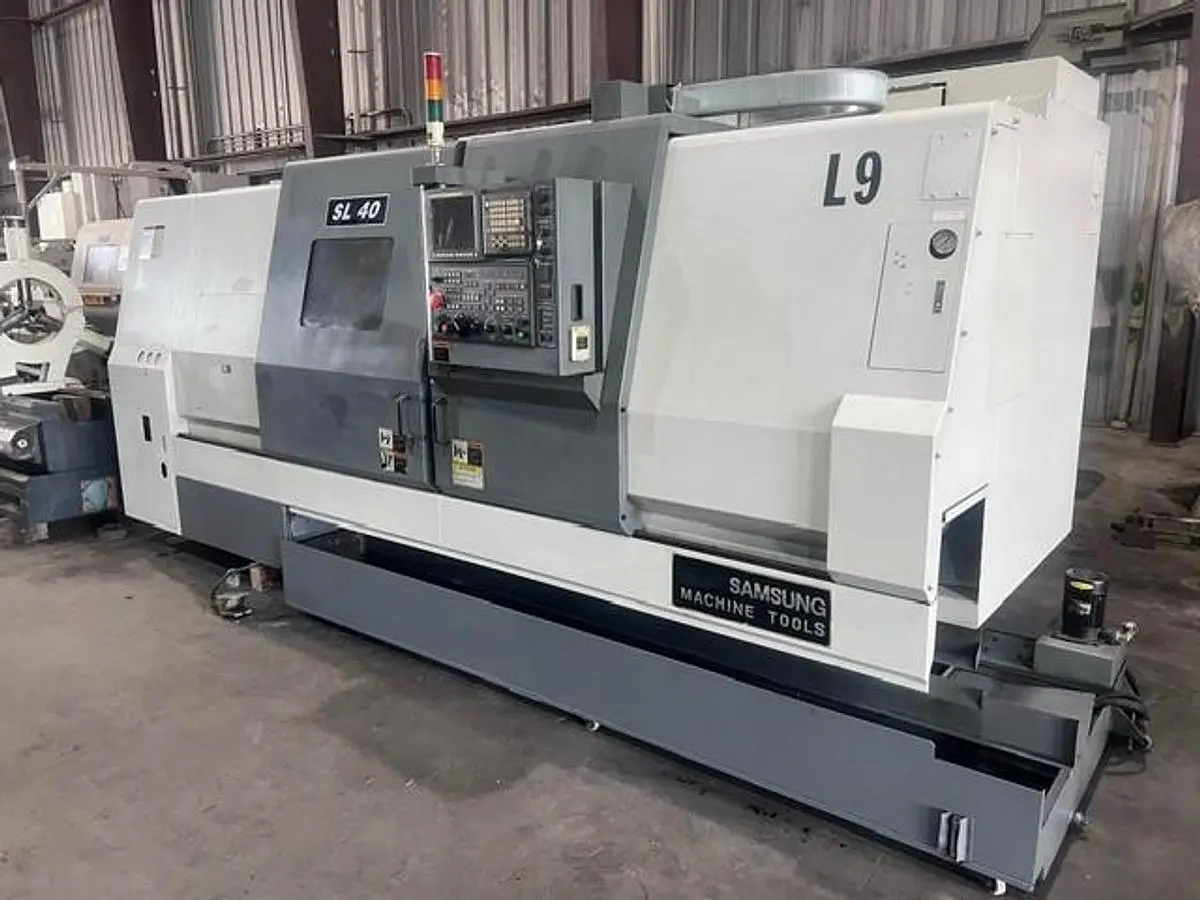

USED 2014 SAMSUNG SL-40/1500

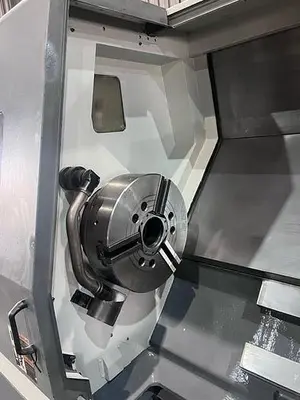

18" 3 Jaw Hydraulic Chuck

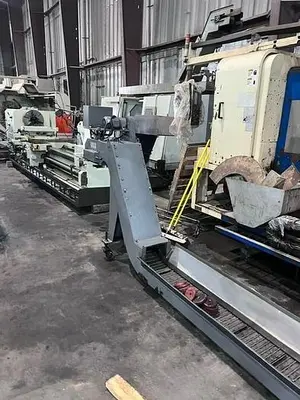

Chip Conveyor
Tailstock- Hydraulic with Programmable Body & Quill

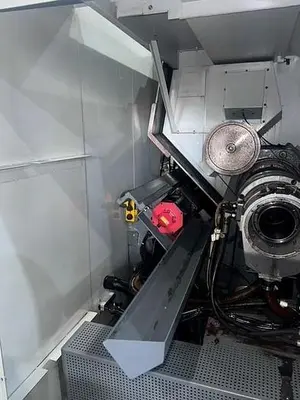

Tool Presetter
Manual Guide i for Conversational Capability
Complete Coolant System with Tank & Pump
Card Interface
USB Port Interface
RS 232 Port Interface
2 Speed Geared Head
Boxed Way
3 Color Machine Status Condition Lights
Heavy Boxed Ways and Slant Bed
All Available Static Tooling
All Available Manuals

**Low Hours of Use**

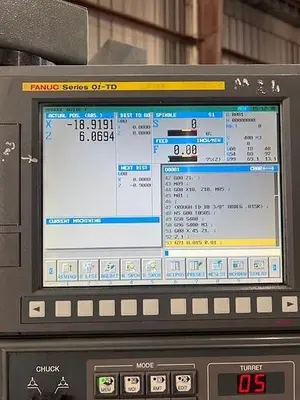

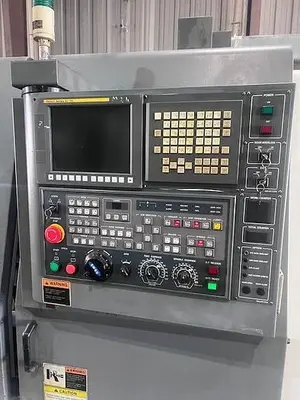

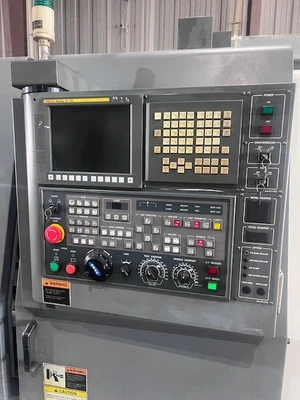

Machine Control: Fanuc 0i-TD
Chuck size: 18" 3 Jaw Hydraulic Chuck
Maximum Swing over Bed: 26.8"
Maximum Machining Diameter: 19.7"
Maximum Machining Length: 60.2"
Maximum Bar Capacity: 4.6"
X-Axis Travel: 11"
Z-Axis Travel: 63.19"
Spindle Nose / Spindle Bore: A2-11" / 5.2"
Spindle Speed: 1,800 RPM
Spindle Motor: 30 HP

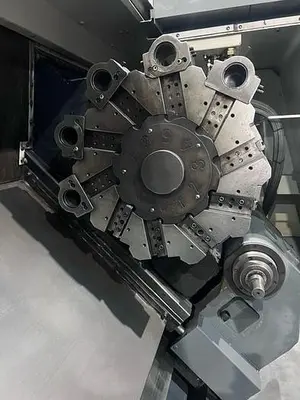

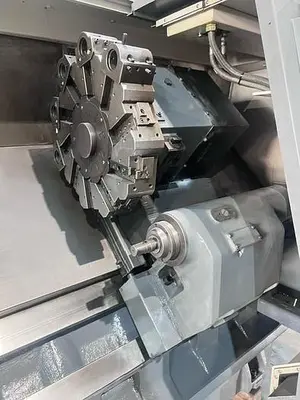

Number of Turret Positions: 10 Station Block Turret
Rapid Traverse Rates: 472 IPM / 591 IPM
Machine Dimensions: 197" x 75"
Machine Weight: 20,500 lbs.
