USED 2002 VECTRAX GSN20V

Power Draw Bar
Coolant System

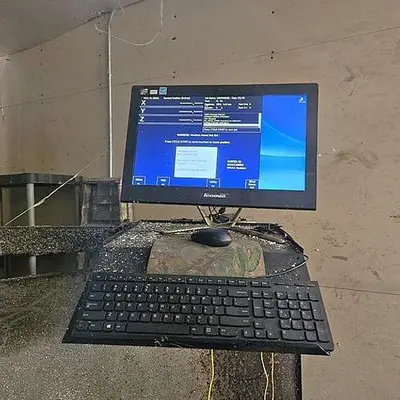

Upgraded Centroid Control in 2014

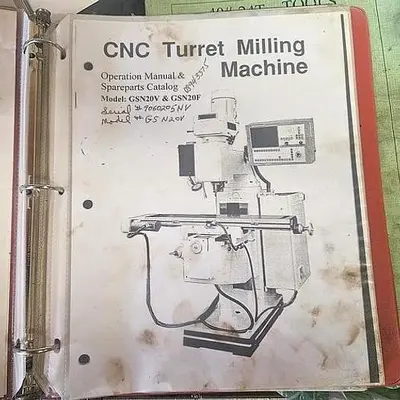

All Available Manuals

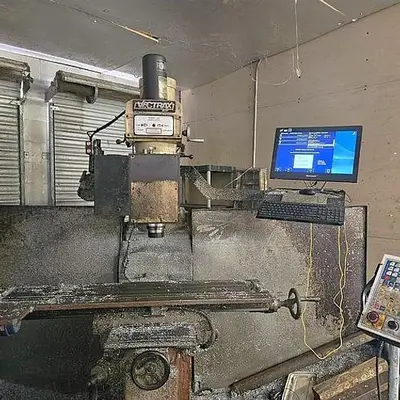

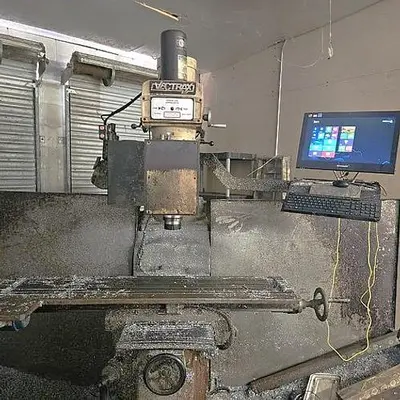

The 2002 Vectrax GSN20V is a used CNC Vertical Machining Center, ideal for precision machining tasks. It features a Centroid control system and a sizable 54" x 10" table, providing an extensive working area. The machine allows for versatile and efficient operations with a 32" X-axis travel and a 16.5" Y-axis travel, coupled with substantial flexibility owing to a 19" knee travel and 6" quill travel. Its robust engineering includes a 4.13" quill diameter and an 18" ram travel.

The machining center is powered by a 5 HP motor and achieves a spindle speed of up to 3,600 RPM with an NT30 spindle taper, making it capable of handling a variety of materials. The machine's dimensions are 80" in length, 72" in width, and 87.75" in height, with an overall weight of 5,000 lbs, indicating a durable and stable design. This Vectrax model is a reliable choice for shops requiring accurate and consistent machining performance.

Machine Control: Centroid
Table Size: 54" x 10"
X-Axis Travel: 32"
Y-Axis Travel: 16.5"
Knee Travel: 19"
Quill Travel: 6"
Quill Diameter: 4.13"
Ram Travel: 18"
Spindle Speed: 3,600 RPM
Spindle Taper: NT30
Spindle Motor: 5 HP

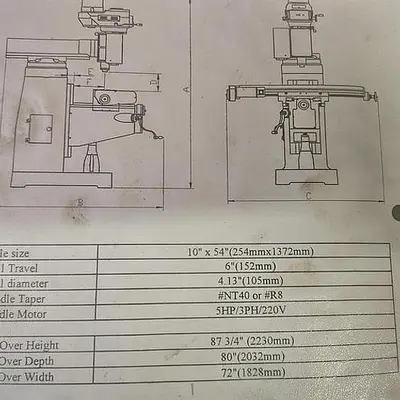

Machine Dimensions LxWxH: 80" x 72" x 87.75"
Machine Weight: 5,000 lbs
