24 Station Side Mounted Tool Changer
Flood Coolant System
Remote Jog Handle
Spindle Chiller Unit
Rigid Tapping
User Macro
All Boxed Way Design
Chip Auger
3 Color Machine Status Condition Lights
RS 232 Port Interface
All Available Manuals

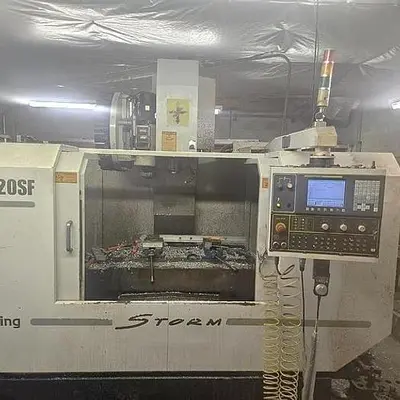

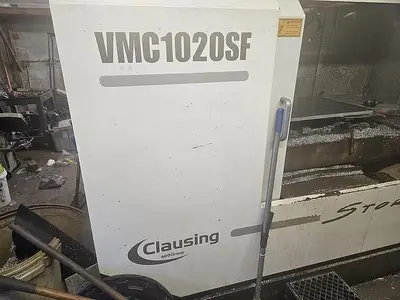

The 2011 Clausing VMC-1020SF is a reliable CNC Vertical Machining Center, ideal for various precision machining applications. It features a Fanuc 0i-MC control for efficient and precise operations. The machine has a table size of 47.24 inches by 19.68 inches, with a maximum table load capacity of 2,200 lbs, allowing it to handle larger and heavier workpieces with ease.
It offers generous travel dimensions with 40.15 inches on the X-axis, 20 inches on the Y-axis, and 22 inches on the Z-axis. The spindle, equipped with a CAT 40 taper and a robust 20 HP motor, achieves speeds up to 10,000 RPM, ensuring high productivity. The 24-station side-mounted tool changer enhances versatility by facilitating quick and efficient tool changes.
This machining center operates with rapid traverse rates of 945 inches per minute, contributing to reduced machining times. With overall machine dimensions of 117 inches by 101 inches by 98 inches and a weight of 11,464 lbs, the Clausing VMC-1020SF is a substantial and durable piece of equipment suitable for demanding industrial environments.

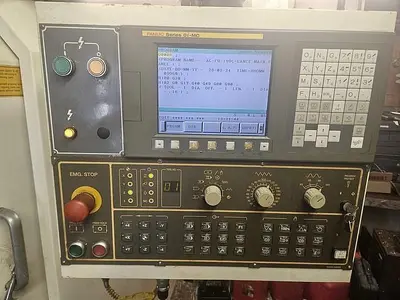

Machine Control: Fanuc 0i-MC

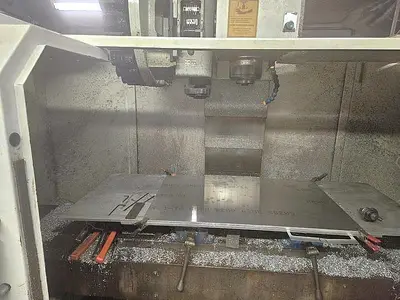

Table size: 47.24"x19.68"
Maximum Table Load: 2,200 lbs
X-axis travel: 40.15"
Y-Axis Travel: 20"
Z-Axis Travel: 22"
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Tool Magazine Capacity: 24 Station Side Mounted Tool Changer
Rapid Traverse Rates: 945 IPM
Machine Dimensions LxWxH: 117"x101"x98"
Machine Weight: 11,464 lbs
