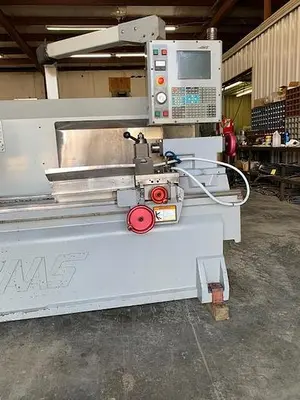

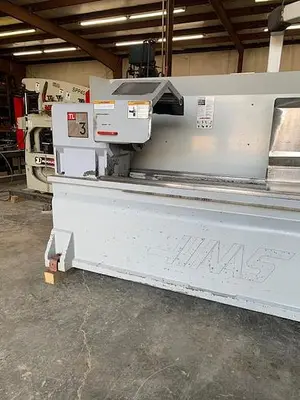

USED 2004 HAAS TL-3

12" Manual Chuck
Tailstock
Quick Change Tool Post
Manual Hand Wheels
2-Speed Gearbox
Work Light
Memory Lock Key Switch
Coolant System with Tank & Pump
Chuck/Coolant Splash Cover
RS 232 Port Interface
Wired 208/230V Three Phase Power

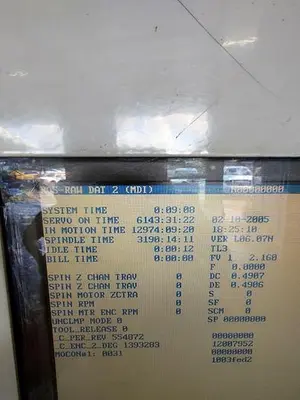

**Spindle Hours 3,190**

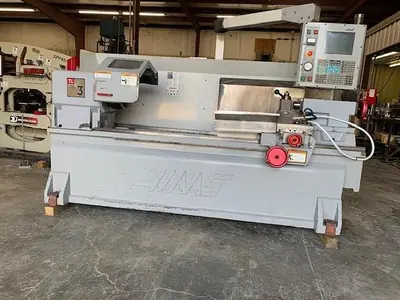

The 2004 Haas TL-3 is a robust and versatile CNC lathe suitable for a variety of machining tasks. It features a Haas 32 BIT machine control, ensuring precise operation across its work envelope. With a maximum swing of 20 inches and capable of handling a machining diameter of up to 20 inches, this lathe is well-suited for both small and medium-sized components. The machine offers a generous distance of 60 inches between centers, providing ample space for longer parts.

Equipped with a 12-inch 3-jaw chuck and offering X and Z-axis travels of 16 inches and 60 inches, respectively, the TL-3 balances capability with ease of use. Its spindle operates at speeds ranging from 0 to 1,800 rpm, driven by an 18 hp motor that ensures reliable performance. The spindle nose is configured as A2-6 with a 3.5-inch bore and a 3-inch bar capacity, allowing it to accommodate a wide range of workpieces.

Despite its substantial capabilities, the TL-3 maintains a compact footprint with dimensions of 123 inches by 77 inches by 87 inches and a weight of 7,624 pounds. It incorporates a 4-position quick-change tool setup and features rapid traverse rates of 75 ipm on the X-axis and 150 ipm on the Z-axis, ensuring efficient operation. The tailstock has a #5 MT bore taper, suitable for heavy-duty applications. This makes the TL-3 a reliable and efficient choice for industries requiring precision machining.

Machine Control: Haas 32 BIT
Chuck Size: 12" 3-Jaw
Maximum Swing: 20"
Maximum Swing Over Cross Slide: 13"
Maximum Machining Diameter: 20"
Distance Between Centers: 60"
X-axis travel: 16"
Z-Axis Travel: 60"
Spindle Speeds: 0-1,800 rpm
Spindle Nose / Bore / Bar Capacity: A2-6 / 3.5" / 3"
Spindle Motor: 18 hp
Number of Tool Positions: 4-Position Quick Change
Rapid Traverse Rates X/Z: 75 ipm / 150 ipm
Tailstock Bore Taper: #5 MT
Machine Dimensions LxWxH: 123"x77"x87"
Machine Weight: 7,624 lbs
