Boxed Way Design
6,000 RPM Spindle
Home Made Coolant Enclosure
PC Based CPU
RS-232 Port Interface
Conversational & G Code Programming
Rigid Tapping
Belt Driven Spindle
Fixed Head Design
Coolant System with Coolant Pan & Pump
Auto Lube
All Available Manuals

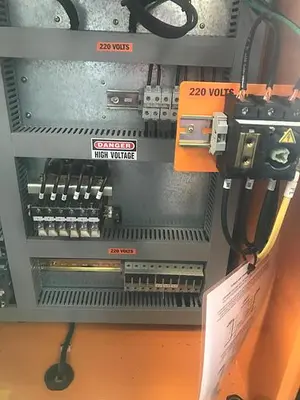

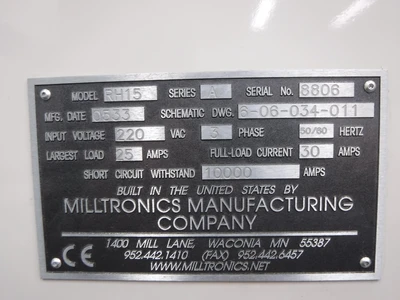

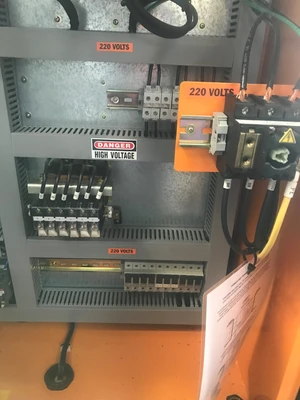

Wired 220V 3 Phase 50/60 Hz

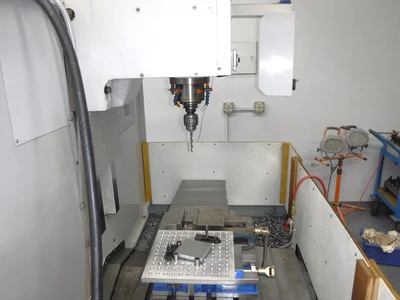

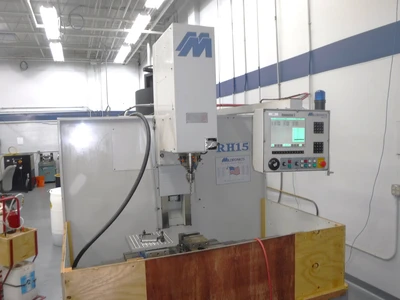

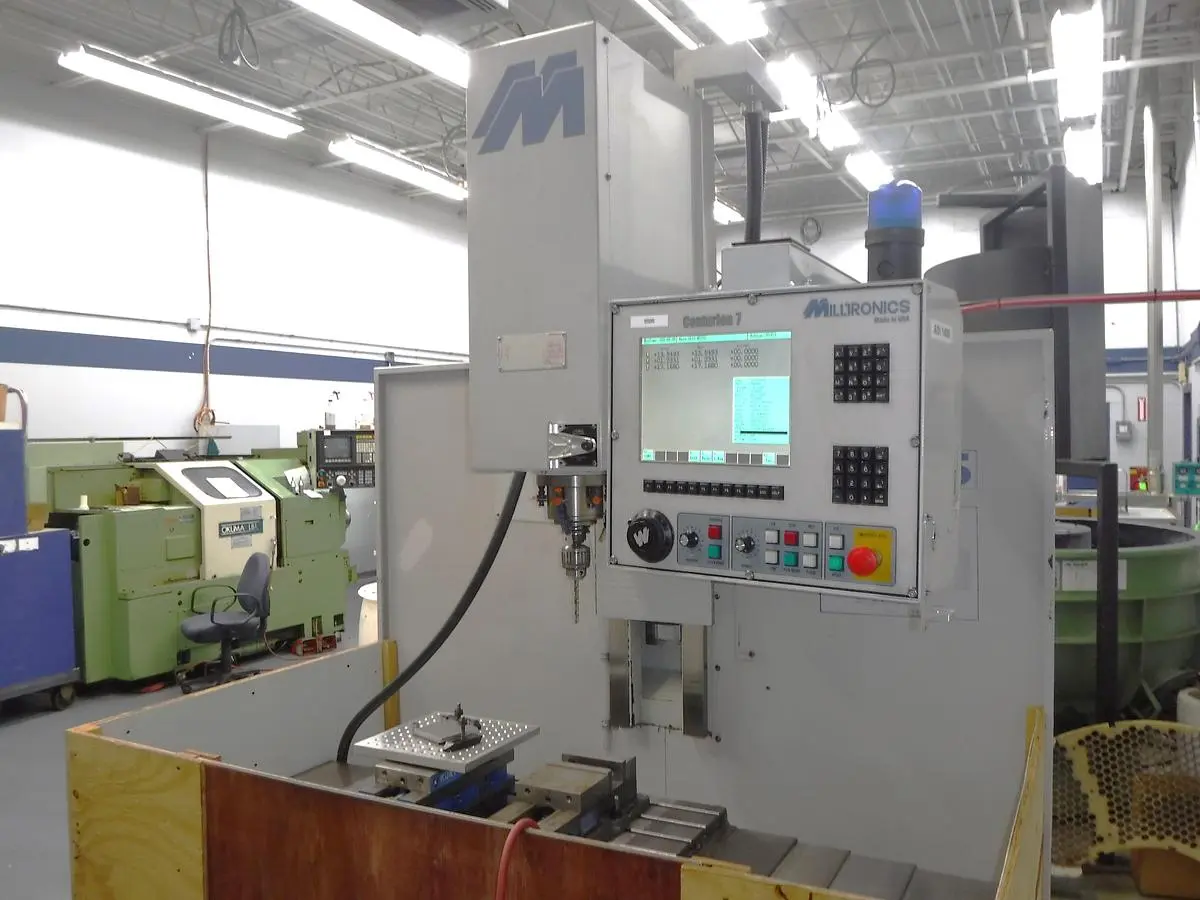

The 2005 Milltronics RH15 is a used 3-axis CNC Vertical Machining Center designed for precision and versatility. It features a Milltronics Centurion 7 control system and offers a 30" x 14" table with a maximum load capacity of 750 lbs. This machining center provides an X-axis travel of 25", Y-axis travel of 15", and Z-axis travel of 20.5", making it suitable for a wide range of applications.
Equipped with a CAT 40 spindle taper, the RH15 has spindle speeds ranging from 60 to 6,000 RPM powered by a robust 10 HP motor. Rapid traverse rates reach 1000 inches per minute on the X and Y axes and 800 inches per minute on the Z-axis, ensuring efficient operation. The distance from the spindle nose to the table top can vary between 4.5" and 25", accommodating different workpiece heights.
With machine dimensions of 74" x 76" x 86" and a weight of 5,500 lbs., the Milltronics RH15 is a solid option for precision machining in industrial settings. Despite its compact footprint, it offers substantial capability, making it an excellent choice for businesses seeking reliable performance.

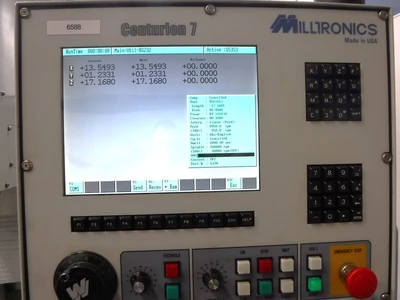

Control: Milltronics Centurion 7
Table Size: 30" x 14"
Maximum Table Load: 750 lbs.
X-Axis Travel: 25"
Y-Axis Travel: 15"
Z-Axis Travel: 20.5"
Spindle Taper: CAT 40
Spindle Speeds: 60 - 6,000 RPM
Spindle Motor: 10 HP
Distance Spindle Nose to Table Top: 4.5" - 25"
Rapid Traverse Rates X, Y / Z: 1000 IPM / 800 IPM
Machine Dimensions: 74" x 76" x 86"
Machine Weight: 5,500 lbs.
