10" 3 Jaw Hydraulic Chuck
Tool Presetter

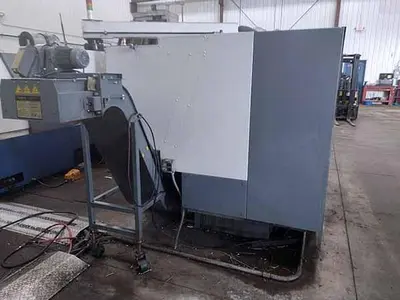

Chip Conveyor
Tailstock
IGF Conversational Programming
USB Port Interface
RS 232 Port Interface
Integral Spindle Motor Design
Coolant Tank with Pump
All Available Tool Blocks
All Available Manual

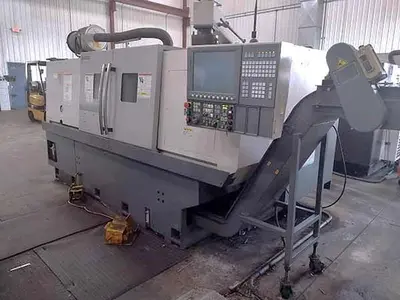

The 2012 Okuma Genos L400-e is a reliable CNC lathe perfect for various machining tasks. Featuring the OSP P300L-R control, it provides intuitive operation and increases efficiency for the user. With a 10-inch 3-jaw hydraulic chuck, the machine ensures stable and precise work holding. It accommodates a maximum swing of 20.47 inches and a maximum turning diameter of 12.99 inches, supporting diverse machining requirements.
With an X-axis travel of 9.05 inches and a Z-axis travel of 45.03 inches, along with rapid traverse rates of 787 IPM, the machine offers substantial flexibility and speed. The spindle operates within a 30 to 3,000 RPM range, powered by a robust 20 HP motor, and supports A2-8 spindle nose specifications with a bar capacity of 2.7 inches. The 12-station turret enhances its capacity to handle complex projects with ease.
The Okuma Genos L400-e is equipped with a tailstock that has a quill diameter of 3.54 inches, quill travel of 3.94 inches, and an MT #5 taper, making it highly adaptable. The machine's dimensions are 140 inches in length, 85 inches in width, and 77 inches in height, with a total weight of 14,330 lbs., making it a substantial piece of equipment for your production line. This used lathe offers a blend of precision and strength, suitable for diverse applications.

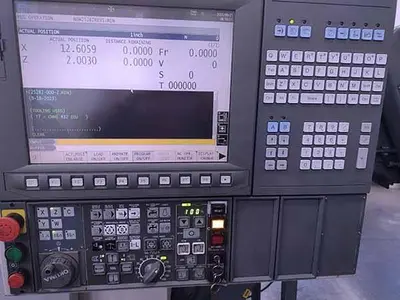

Machine Control: OSP P300L-R Control
Chuck Size: 10" 3-Jaw Hydraulic
Maximum Swing: 20.47"
Maximum Turning Diameter: 12.99"
Maximum Machining Length: 43.3"
X-Axis Travel: 9.05"
Z-Axis Travel: 45.03
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.15" / 2.7"
Spindle Speed: 30 - 3,000 RPM
Spindle Motor: 20 HP
Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates X/Z: 787 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 3.54" / 3.94" / MT #5
Machine Dimensions LxWxH: 140" x 85" x 77"
Machine Weight: 14,330 lbs.
