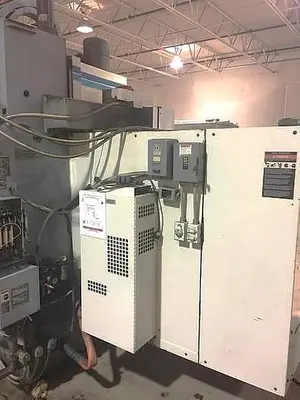

USED 1993 FADAL VMC6030HT

Hydro Sweep Chip Conveyor
21 Station Tool Changer
10,000 RPM Spindle
Boxed Ways
High Torque Spindle Motor
2 Speed Spindle Drive
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 230V/440V Electrics

The 1993 Fadal VMC6030HT is a reliable CNC vertical machining center designed for versatility and precision in industrial applications. It comes equipped with a Fadal CNC 32MP control and has a table size of 62" x 30", capable of accommodating a maximum load of 4,120 pounds, which offers significant capacity for various machining tasks. The machine boasts travel dimensions of 60" in the X-axis and 30" in both the Y and Z axes, facilitating the handling of large workpieces with ease.

Featuring a CAT 40 spindle taper, the VMC6030HT reaches spindle speeds up to 10,000 rpm, driven by a robust 22.5 HP spindle motor, which is crucial for high-performance cutting tasks. The included tool magazine offers a 21-station tool changer, supporting efficient workflows and minimizing downtime. The machine's rapid traverse rates of 400 inches per minute along all axes ensure quick positioning, making it suitable for high-production environments.

With overall dimensions of 158" L x 103" W x 122" H and a weight of 17,000 lbs, the 1993 Fadal VMC6030HT is a substantial piece of equipment that promises durability and stability during operation. It is an excellent choice for manufacturers seeking to boost their productivity with a reliable 3-axis VMC.

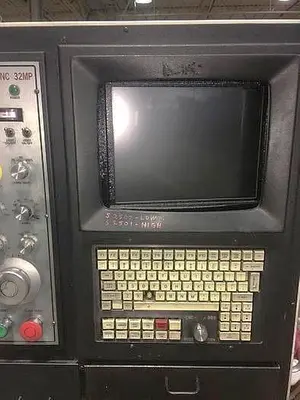

Control: Fadal CNC 32MP Control

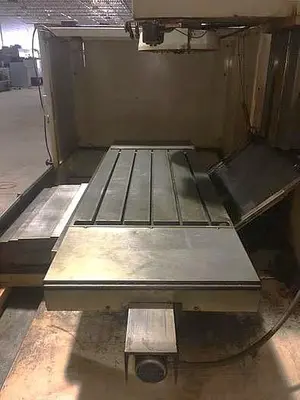

Table Size: 62" x 30"
Maximum Table Load: 4,120 lbs.
Distance Spindle Nose to Table Top: 5.5" - 35.5"
X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Speeds: 10,000 rpm
Spindle Motor: 22.5 HP
Tool Magazine Capacity: 21 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 4.5" / 15" / 15 lbs
Rapid Traverse Rates (X, Y, Z): 400 IPM
Machine Dimensions LxWxH: 158" x 103" x 122"
Machine Weight: 17,000 lbs.
