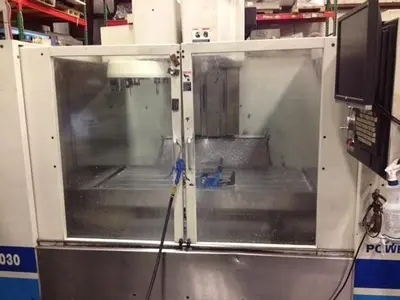

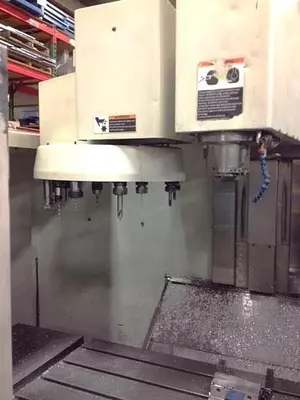

USED 1999 FADAL VMC6030HT

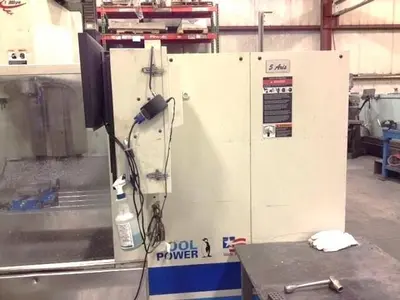

5th Axis Prewired
10,000 RPM Spindle
Rigid Tapping
Boxed Ways
High Torque Spindle Motor
2 Speed Spindle Drive
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 460V Electrics

The 1999 Fadal VMC6030HT is a reliable used 3-axis CNC Vertical Machining Center, well-suited for precision machining tasks. This model features a robust Fadal CNC88HS Control system, offering efficient operation and ease of use. With a generous table size of 62" x 30", it accommodates a maximum table load of 4,120 lbs., providing ample capacity for diverse machining requirements.

This machine delivers significant versatility with its X, Y, and Z travel distances of 60", 30", and 28", respectively. Its spindle, a CAT 40 taper, operates at speeds up to 10,000 rpm, powered by a 22.5 HP motor, ensuring both speed and power for cutting operations. The VMC6030HT includes a 24-station tool changer, facilitating smooth transitions between tools to increase productivity.

The machine's compactness is balanced with substantial capabilities, with dimensions measuring 158" x 103" x 119" and a total machine weight of 17,500 lbs. Rapid traverse rates of 400 IPM across all axes ensure swift movement and minimal downtime during operations. This CNC center is a solid choice for those seeking precision, power, and reliability in their machining processes.

Control: Fadal CNC88HS Control
Table Size: 62" x 30"
Maximum Table Load: 4,120 lbs.
Distance Spindle Nose to Table Top: 5.5" - 35.5"
X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 28"
Spindle Taper: CAT 40
Spindle Speeds: 10,000 rpm
Spindle Motor: 22.5 HP
Tool Magazine Capacity: 24 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 4.5" / 15" / 15 lbs
Rapid Traverse Rates (X, Y, Z): 400 IPM
Machine Dimensions LxWxH: 158" x 103" x 119"
Machine Weight: 17,500 lbs.
