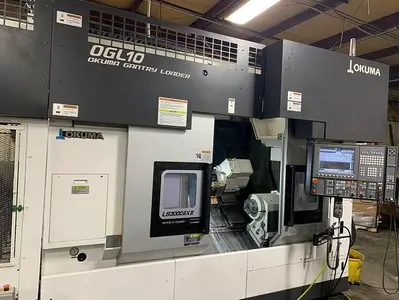

USED 2021 OKUMA LB3000EXII-MYW 800 W/OGL10 GANTRY LOADER

Live Tooling with Internal Coolant
Y-Axis
C-Axis
High-Pressure Coolant Pump

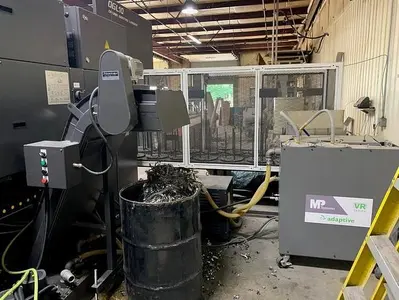

Chip Conveyor Rear Discharge
Auto Moon Roof

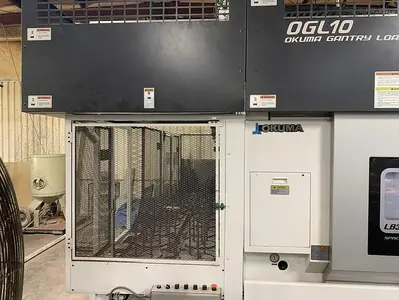

OGL-10 Loader with 20 Station Stacker Table
Automatic Tool Presetter
Coolant Hi/Lo Pressure Switchable
1,000 psi Coolant System
MP Ak Circui Breaker Kit
Shower Coolant
Remote Jog Handle
Multi-Tool Function
Parts Catcher Prep
Side Option Box for Film Panel
Home Position Function G20
Rapid Traverse Override Switch

The 2021 Okuma LB3000EXII-MYW 800, equipped with an OGL10 Gantry Loader, is a robust CNC lathe designed for efficiency and precision in industrial applications. This used machine features the reliable Okuma OSP-P300LA control system, ensuring seamless operation. It is fitted with a 10" main spindle chuck and a 6" subspindle chuck, accommodating versatile machining needs.

The machine offers a maximum swing of 22.83" and a maximum turning diameter of 13.39", with center distance totaling 42.72". The X-axis travel reaches 10.24", while the Y-axis allows for +2.76" to -1.77" movement, and the Z-axis extends up to 39.76", complemented by a full 360-degree C-axis rotation. The main spindle bore measures 3.59", paired with a 40 hp motor, and the subspindle bore is 2.44" with a 15 hp motor. Both spindles achieve impressive speeds, with the main at 5,000 RPM and the subspindle at 6,000 RPM.

Additionally, the milling spindle offers a 15 hp motor with speeds up to 6,000 RPM, and the turret accommodates 12 positions, enhancing the machine's versatility. Dimensions of this CNC lathe, excluding the gantry, are 133"x80"x97", with a weight of 15,070 lbs. This sturdy machine is ideal for demanding tasks, contributing efficiency and precision to any industrial setup.

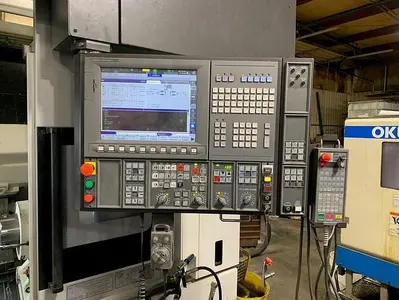

Machine Control: Okuma OSP-P300LA
Chuck Sizes Main / Subspindle: 10" / 6"
Maximum Swing: 22.83"
Maximum Turning Diameter: 13.39"
Center distance: 42.72"
X-Axis Travel: 10.24"
Y-Axis Travel: +2.76" / -1.77"
Z-Axis Travel: 39.76"
C-Axis Rotation: 360 Degrees
Main Spindle Bore: 3.59"
Subspindle Bore: 2.44"
Main Spindle Motor: 40 hp
Subspindle Motor: 15 hp
Main & Subspindle Speeds: 5,000 RPM / 6,000 RPM
Milling Spindle Motor: 15 hp
Milling Spindle Speed: 6,000 rpm
Number of Turret Positions: 12
Machine Dimensions LxWxH: 133"x80"x97" w/o Gantry
Machine Weight: 15,070 lbs w/o Gantry
