Windows CE Graphical user Interface (GUI) Touch Screen
Probe Ready
Blum Laser
Graphite Machining Package
Auto Lube
Rigid Tapping
Helical Interpolation
Data Center for Networking and Storage Capability
Transformer
Spindle Chiller Unit
Linear Scale Feedback
Recent new Ballscrews
**Makino did all the Preventative Maintenance and Repairs
**Every 2,000 hours the Machine is completely gone through which takes two to three days.
**Machine was holding 0.0003" to 0.0005" when it was taken out of service on June 5, 2024.

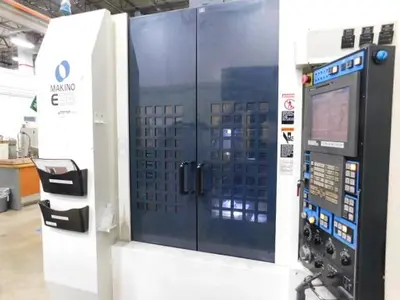

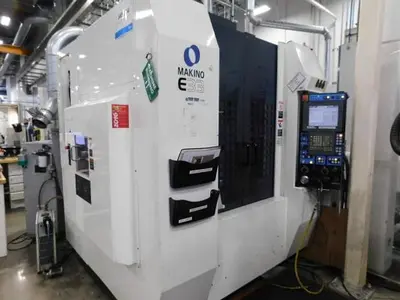

The 2008 Makino E33 CNC Vertical Machining Center is a reliable and efficient machine designed for precise and high-speed machining operations. It features a Pro 5 control system, ensuring easy operation and programming. With a table size of 35.5" x 19.7" and a maximum weight capacity of 1,102 lbs, it supports a wide range of workpieces.
This machine provides an X, Y, Z axis travel of 25.6", 17.7", and 17.7" respectively, allowing comprehensive reach across the work area. The powerful 18.5 HP spindle motor operates at speeds from 400 to 40,000 rpm, and it is equipped with an HSK E32 spindle taper. This flexibility makes it suitable for various machining tasks, from delicate precision work to more robust milling operations.
Additionally, the Makino E33 includes a 30-station side-mounted tool changer for efficient workflow and rapid traverse rates of 1,574 inches per minute to minimize idle times. With machine dimensions of 90"x99"x119" and a weight of 16,090 lbs, it provides substantial stability and durability, ensuring consistent performance over time.
Machine Control: Pro 5
Table Size: 35.5" x 19.7"
Maximum Weight on Table: 1,102 lbs
X-Axis Travel: 25.6"
Y-Axis Travel: 17.7"
Z-Axis Travel: 17.7"
Spindle Taper: HSK E32
Spindle Speeds: 400-40,000 rpm
Spindle Motor: 18.5 HP

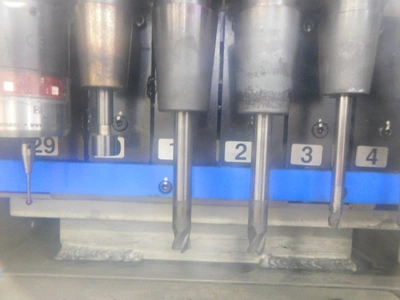

Tool Magazine Capacity: 30 Station Side Mounted Tool Changer
Rapid Traverse Rates: 1,574 IPM
Machine Dimensions LxWxH: 90"x99"x119"
Machine Weight: 16,090 lbs
