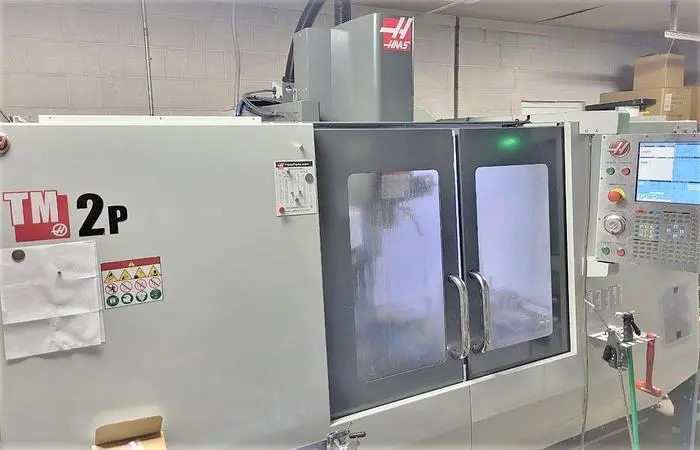

USED 2016 HAAS TM-2P

4th Axis Drive & Wiring
Rigid Tapping
Programmable Coolant Nozzle
Full Enclosure Sheet Metal Covers

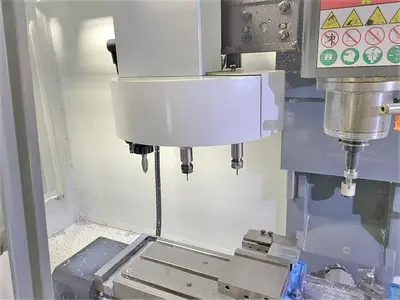

10 Station Toolchanger
Coolant System with Tank & Pump
Vector Drive Spindle
Brushless Servos All Axis'
Direct Belt Drive
RS 232 Port Interface

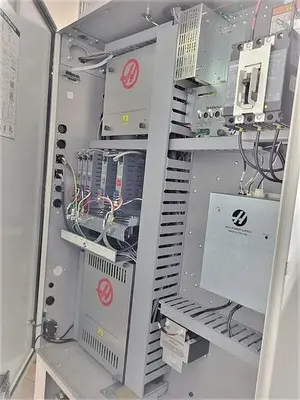

Wired 220V 3 Phase Power Only

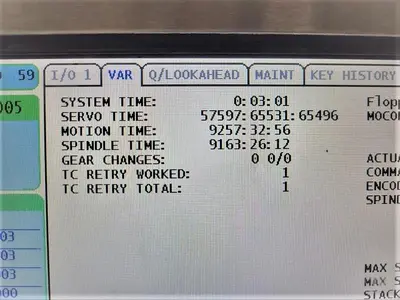

**9,257 Motion Hours**
**9,163 Spindle Hours**
**Machine is new in May of 2016**

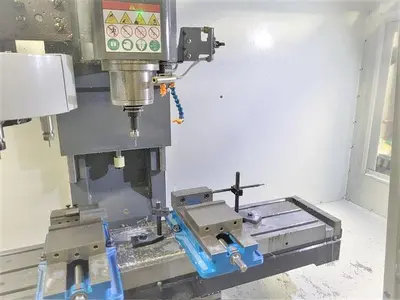

The 2016 Haas TM-2P is an efficient and versatile CNC vertical machining center ideal for various manufacturing needs. Equipped with Haas CNC Control, this machine offers a substantial table size of 57.75" x 10.5" and accommodates a maximum load of 350 lbs. Its travel capacities include 40" on the X-axis, and 16" each on the Y and Z axes, with a spindle nose-to-table top distance ranging from 4" to 20". This model features a CAT 40 spindle taper and operates at speeds up to 6,000 rpm, powered by a 7.5 HP motor.

The TM-2P includes a 10-station tool changer, facilitating seamless tool transitions with a chip-to-chip time of 5.7 seconds, and supports a tool diameter of 3.5" and a weight of up to 12 lbs. Rapid traverse rates reach 400 inches per minute, enhancing productivity for high-speed machining tasks. Integrating a 4th axis drive, programmable coolant nozzle, and rigid tapping capabilities, this machine expands its operational versatility for complex projects.

With dimensions of 100" x 64" x 86" and a weight of 4,000 lbs, this machining center is robust yet adaptable to fit various workshop settings. The Haas TM-2P is a reliable option for manufacturers seeking precision and efficiency in a used machine with modern functionalities.

Control: Haas CNC Control

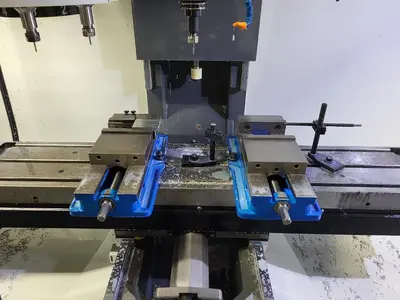

Table Size: 57.75"x10.5"
Maximum Table Load: 350 lbs
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Distance Spindle Nose to Table Top: 4"-20"
Spindle Taper: CAT 40
Spindle Speeds: 6,000 rpm
Spindle Motor: 7.5 HP
Tool Magazine Capacity: 10 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 3.5"/NA/12 lbs
Tool Change Time Chip to Chip: 5.7 Seconds
Rapid Traverse Rates: 400 IPM
Machine Dimensions LxWxH: 100"x64"x86"
Machine Weight: 4,000 lbs
