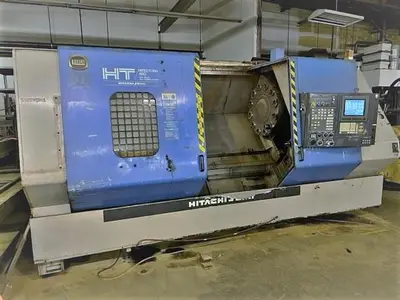

USED 1998 HITACHI SEIKI HITEC-TURN 40G

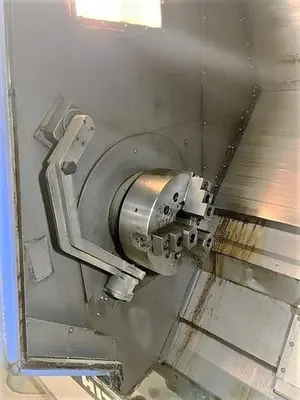

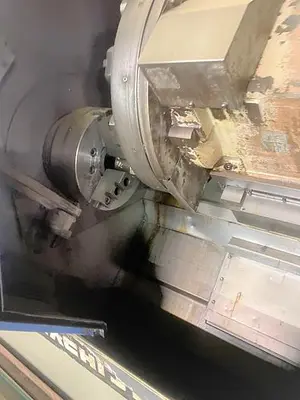

15" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Eye (not sure if working)
Tailstock
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

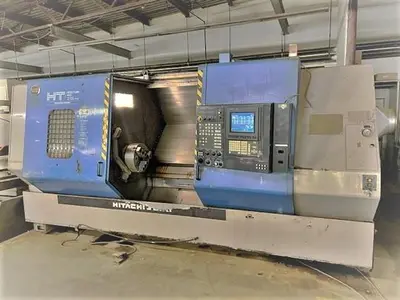

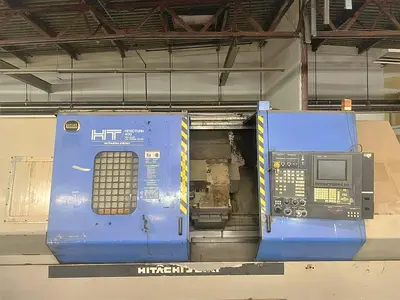

The 1998 Hitachi Seiki HiTec-Turn 40G is a robust used CNC lathe designed for precision machining. This model features a Seicos Control for reliable operation, complemented by a 15-inch 3-jaw hydraulic chuck suitable for handling substantial workpieces. It boasts a maximum swing of 39.4 inches and a maximum turning diameter of 24.4 inches, making it versatile for various machining tasks. With a maximum machining length of 43.3 inches, the machine is capable of accommodating longer components.

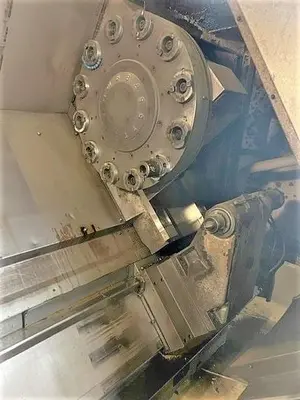

The HiTec-Turn 40G offers a spindle speed range of 20 to 2,000 RPM, driven by a powerful 40 HP motor, ensuring efficient cutting performance. The machine includes a spindle nose, bore, and bar capacity of A2-11", 4.7", and 4" respectively, providing flexibility in material handling. It also has a 12-position turret to support multi-tool configurations, enhancing productivity.

For rapid operations, the machine features traverse rates of 590 inches per minute on the X-axis and 708 inches per minute on the Z-axis. The tailstock, with a body travel of 35.4 inches and a quill travel of 4.7 inches, is equipped with a #5 MT center, offering precise support for extended operations. With overall dimensions of 178"x103"x92" and a weight of 21,340 lbs, this CNC lathe is a solid choice for workshops requiring a reliable and efficient machining solution.

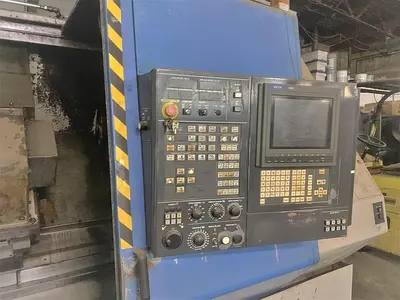

Machine Control: Seicos Control
Chuck Size: 15" 3-Jaw Hydraulic
Maximum Swing: 39.4"
Maximum Turning Diameter: 24.4"
Maximum Machining Length: 43.3"
X-axis travel: 13.5"
Z-Axis Travel: 44"
Spindle Nose / Bore / Bar Capacity: A2-11" / 4.7" / 4"
Spindle Speed: 20-2,000 RPM
Spindle Motor: 40 HP

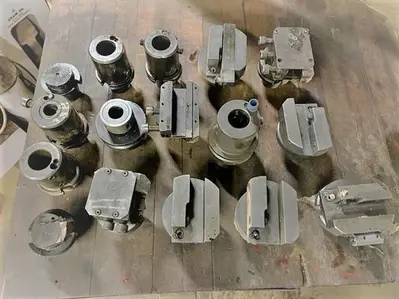

Number of Turret Positions: 12 Posistions
Rapid Traverse Rates X / Z: 590 IPM / 708 IPM
Tailstock Body Travel / Quill Travel: 35.4" / 4.7"
Tailstock Quill Diameter / Center: 4.3" / #5 MT
Machine Dimensions LxWxH: 178"x103"x92"
Machine Weight: 21,340 lbs
