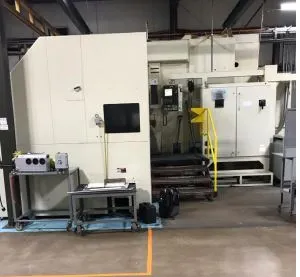

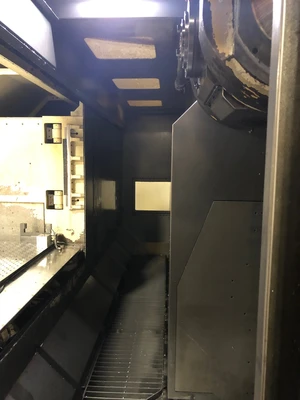

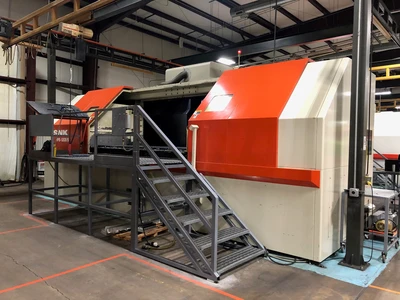

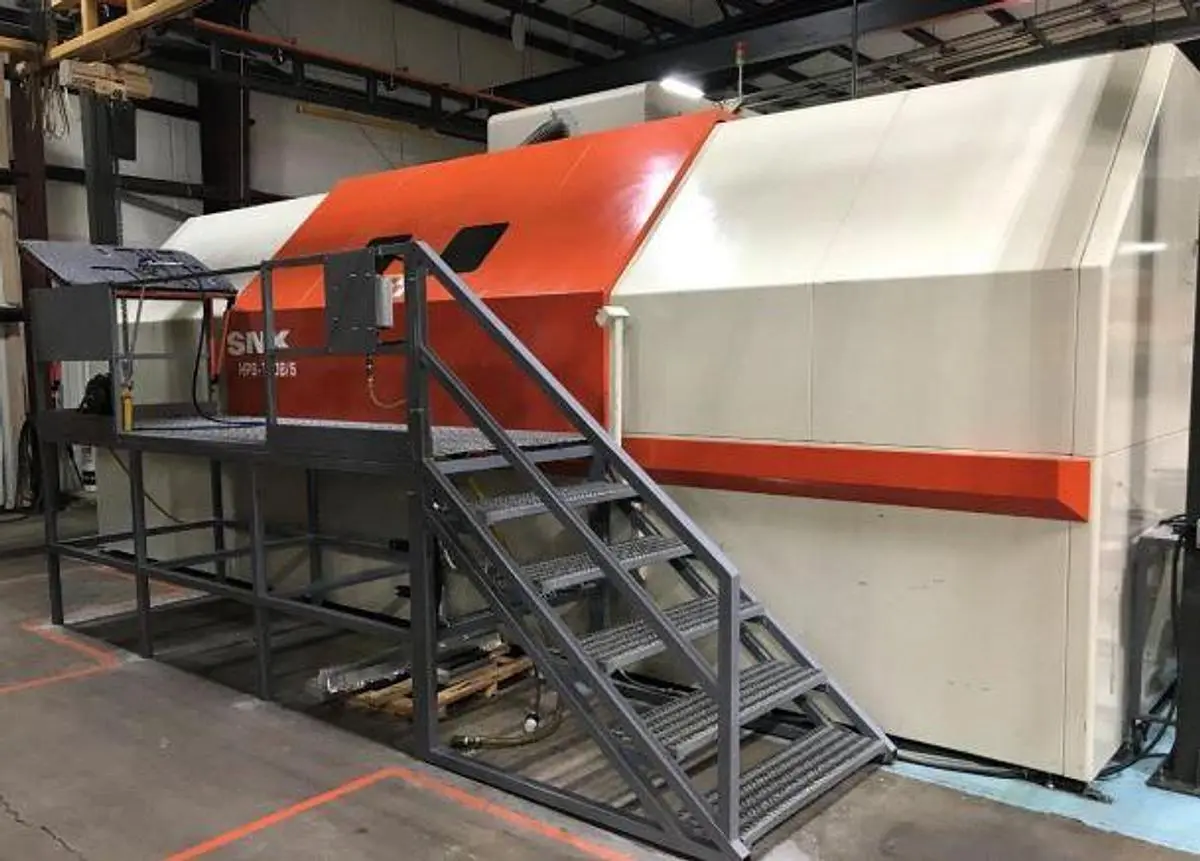

USED 2008 SNK HPS-120B
Overview
Thru the Spindle Coolant
BLUM Laser Measuring System
Tool Length & Tool Breakage
Spare Spindle Cartridge
**Used for finish machining only**
Installed in 2009

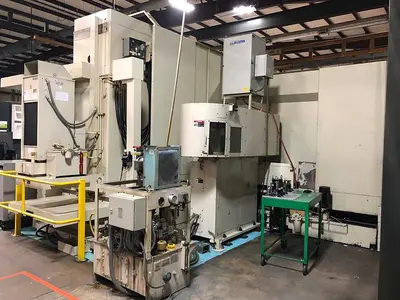

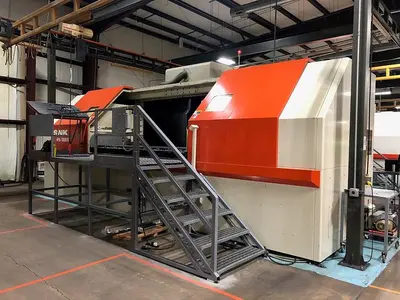

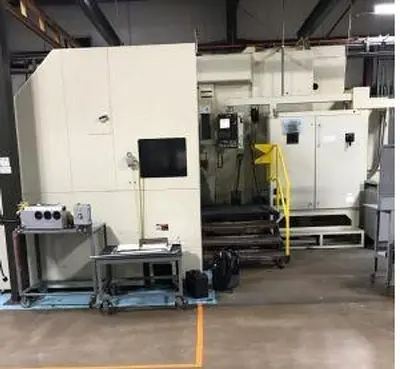

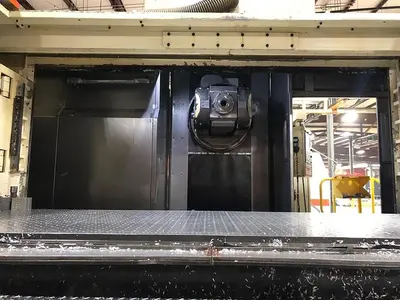

The 2008 SNK HPS-120B is a high-performance CNC Vertical Machining Center ideal for complex multi-axis operations. It features a robust Fanuc 31iA5 machine control that enhances precision. The table measures 120 inches by 48 inches and supports a substantial load of 11,000 lbs, making it suitable for large-scale projects. The machining center offers extensive travel on its axes: 124 inches for X, 52 inches for Y, and 30 inches for Z, providing flexibility to tackle a variety of machining tasks.

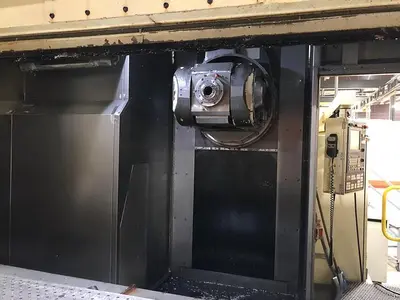

Equipped with a highly versatile spindle, it offers speeds ranging from 150 to 12,000 rpm with a #50 spindle taper. The spindle motor delivers substantial power at 50/40 hp, coupled with a tool magazine capacity of 40, ensuring efficiency in operations. The A-axis allows spindle tilt of +/- 90 degrees, while the C-axis facilitates a spindle rotation of +/- 270 degrees, adaptable for intricate contours and profiles.
The machine's cutting feed rates vary from 1 to 393 inches per minute with rapid traverse rates of 945 ipm (X, Z) and 787 ipm (Y). Its dimensions are 410 inches by 256 inches by 170 inches, reflecting a significant footprint suitable for industrial environments. This used model remains a valuable choice for manufacturers seeking to enhance production capabilities with precise and reliable 5-axis machining.
Specs

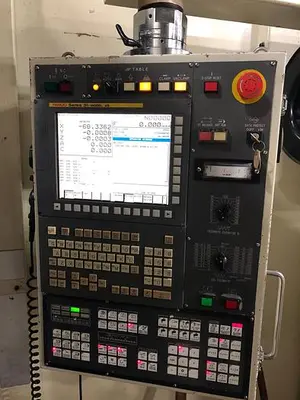

Machine Control: Fanuc 31iA5

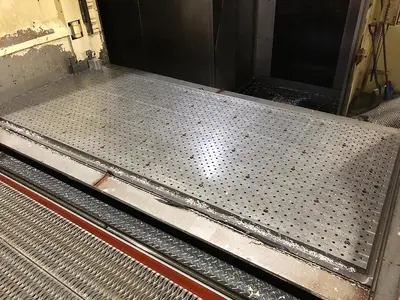

Table Size: 120"x48"
Maximum Table Load: 11,000 lbs
X-Axis Travel: 124"
Y-Axis Travel: 52"
Z-Axis Travel: 30"
A-Axis Travel: Spindle Tilt +/- 90 Degrees
C-Axis Rotation: Spindle Rotation +/- 270 Degrees
Table Positioning: 0 Degrees for Loading / 90 Degrees for Machining
Spindle Speeds: 150 to 12,000 rpm
Spindle Taper: #50
Tool Magazine Capacity: 40 atc
Spindle Motor: 50/40 hp
Cutting Feedrates: 1 to 393 ipm
Rapid Traverse Rates (X, Y, Z): 945 ipm, 787 ipm, 945 ipm
Machine Dimensions LxWxH: 410"x256"x170"
