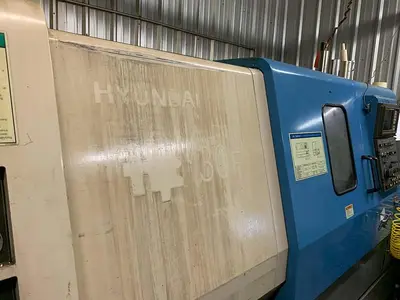

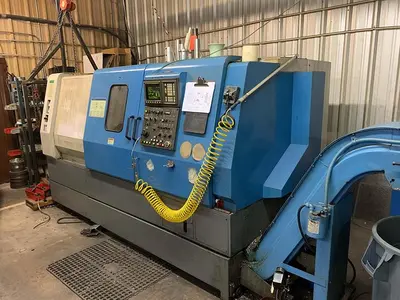

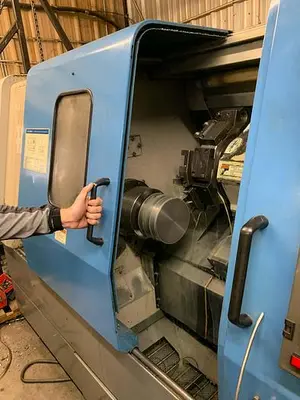

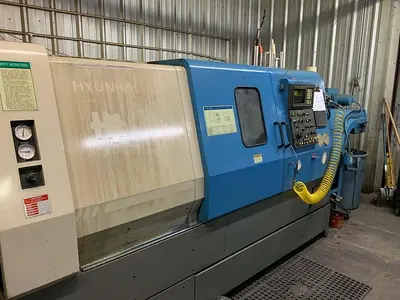

USED 1998 HYUNDAI HIT-30F

Tailstock
Chip Conveyor
12" 3 Jaw Hydraulic Chuck
RS 232 Port Interface
Complete Coolant System with Tank & Pump
All Available Tooling
All Available Manuals

The 1998 Hyundai Hit-30F is a reliable CNC lathe suitable for various machining tasks, featuring a Fanuc O-T control system for precise operations. This used machine comes with a 12-inch 3-jaw hydraulic chuck and supports a maximum swing of 20.8 inches, with a maximum swing over the cross slide of 12.6 inches. The machine allows for an X-axis travel of 7.87 inches and a Z-axis travel of 40.16 inches, accommodating a maximum cutting diameter of 12.6 inches.

Equipped with a substantial spindle motor of 30 horsepower, the Hit-30F achieves spindle speeds ranging from 30 to 3,000 rpm. It has a spindle nose of A2-8, a 3.15-inch spindle bore, and a bar capacity of 2.75 inches. The turret offers a versatile configuration with 8-sided and 16 positions, and the tailstock is equipped with a #4 MT center.

The machine's rapid traverse rates are 945 inches per minute on the X-axis and 708 inches per minute on the Z-axis. With dimensions measuring 136 inches in length, 70 inches in width, and 75 inches in height, it weighs approximately 13,000 pounds, making it a robust choice for your operational needs.

Machine Control: Fanuc O-T
Chuck Size: 12" 3-Jaw Hydraulic
Maximum Swing: 20.8"
Maximum Swing Over Cross Slide: 12.6"
Distance Between Centers: 39.37"
X-Axis Travel: 7.87"
Z-Axis Travel: 40.16"
Maximum Cutting Diameter: 12.6"
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.15" / 2.75"
Spindle Speeds: 30-3,000 rpm
Spindle Motor: 30 hp
Number of Turret Positions: 8 Sided / 16 Positions
Tailstock Center: #4 MT
Rapid Traverse Rates X/Z: 945 ipm / 708 ipm
Machine Dimensions LxWxH: 136"x70:x75"
Machine Weight: 13,000 lbs
