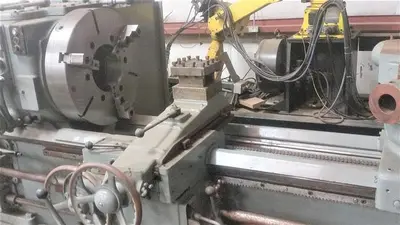

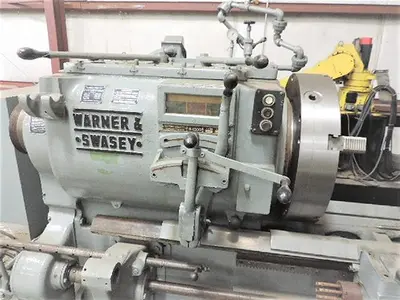

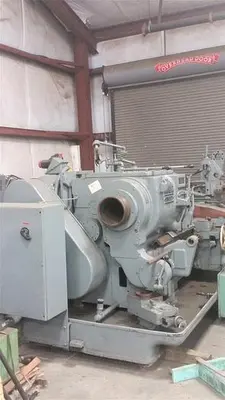

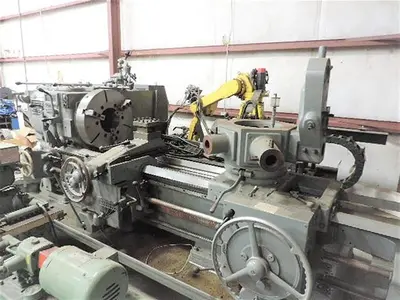

USED 1956 WARNER & SWASEY 4A-M1500

24.5" Bison 3 Jaw Chuck
9.25" Big Bore Spindle
6 Station Turret on Cross Slide
Tool Post on 2nd Cross Slide
Lever Head
Coolant Tray
All Available Tooling
All Available Manuals

Chuck Size: 24.5" 3 Jaw Chuck with 10" Hole
Maximum Turning Length: 54" Approximately
Maximum Distance from Chuck Face to Turret: 87"
Spindle Bore: 9.25"
Spindle Speeds: 8 - 182 RPM
Spindle Motor: 15 HP
Machine Dimensions: 15' x 8' x 6'
Machine Weight: 16,000 lbs.
